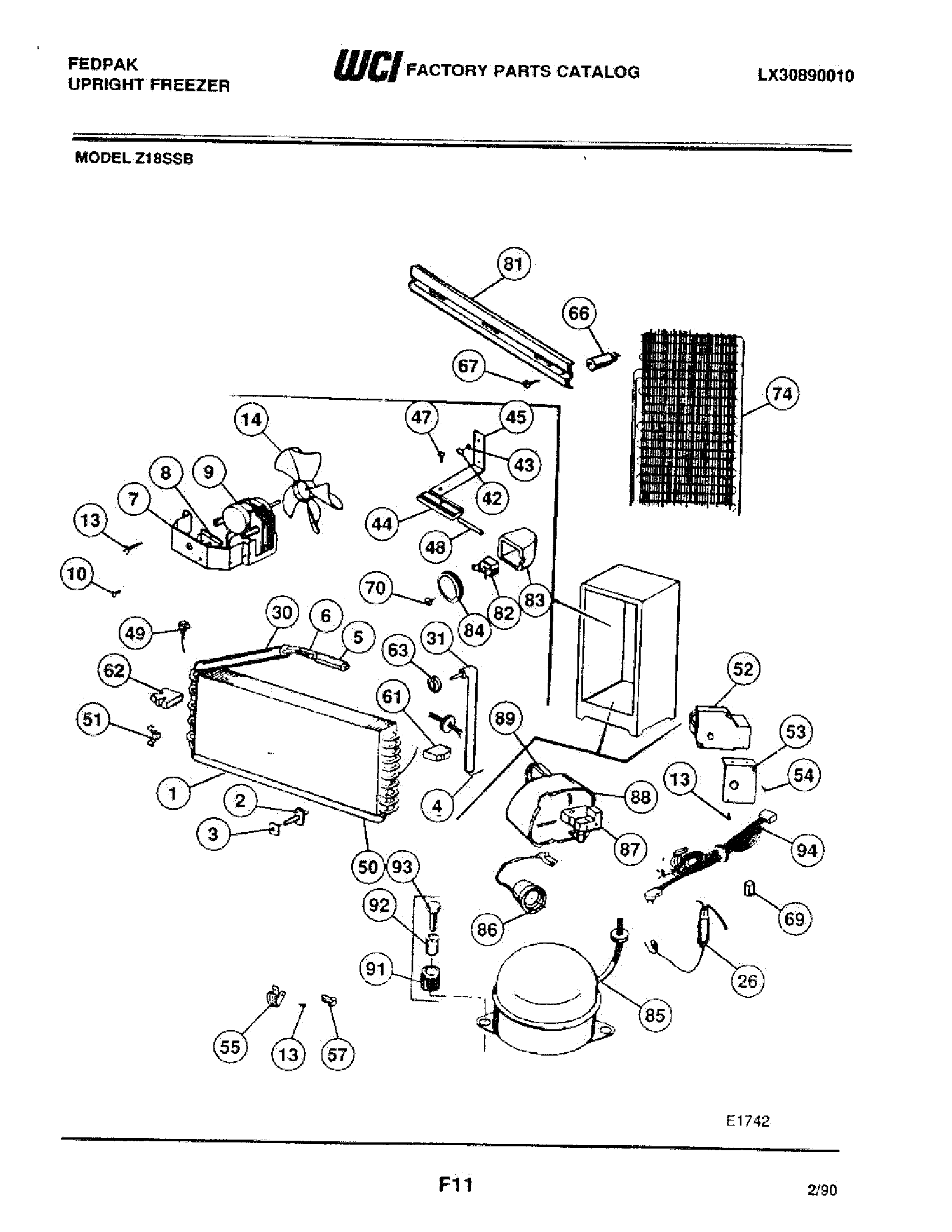

| NI | SPACER (2) (NON-ILLUSTRATED) |
| NI | WCI 3205520 |
| 1 | WCI 3205656 |
| 2 | WCI F111731 |
| 3 | SPACER |
| 4 | WCI 3017673 |
| 5 | WCI F96886 |
| 6 | SLEEVE |
| 7 | WCI F127112 |
| 8 | WCI F90503 |
| 9 | 5304442620 Frigidaire Refrigerator Evaporator Fan Motor |
| 10 | SCREW-MOTOR |
| 14 | WCI F50144 |
| 26 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 30 | INSULATION |
| 31 | WCI F58148 |
| 42 | 216036601 Frigidaire Refrigerator Screw |
| 43 | WCI F95480 |
| 44 | WCI F52940 |
| 45 | WCI F88658 |
| 47 | SCREW-CLAMP |
| 48 | TUBE |
| 49 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 50 | WCI F129752 |
| 51 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 52 | 5304518034 Frigidaire Refrigerator Defrost Timer |
| 53 | WCI F111694 |
| 54 | WCI F52447 |
| 55 | 5304455846 Frigidaire Refrigerator Clamp |
| 57 | WCI F59872 |
| 61 | WCI F111779 |
| 62 | WCI 3200707 |
| 63 | WCI F92161 |
| 66 | WCI F117151 |
| 67 | 216858001 Frigidaire Refrigerator Screw |
| 69 | WCI F112321 |
| 70 | WCI F95424 |
| 70 | SCREW KNOB |
| 70 | SCREW (5) |
| 74 | 5300083897 Frigidaire Refrigerator Condenser P1 O/S2 |
| 74 | RETAINER LEAD WIRE |
| 81 | WCI F124910 |
| 82 | WCI F126977 |
| 83 | WCI 5303207388 |
| 83 | WCI F111759 |
| 84 | WCI F127762 |
| 85 | WCI F301711 |
| 86 | WCI 3200957 |
| 87 | WCI F300398 |
| 89 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 91 | 216498900 Frigidaire Refrigerator Grommet |
| 92 | SLEEVE |
| 93 | WCI F59211 |
| 94 | WCI 3206038 |
