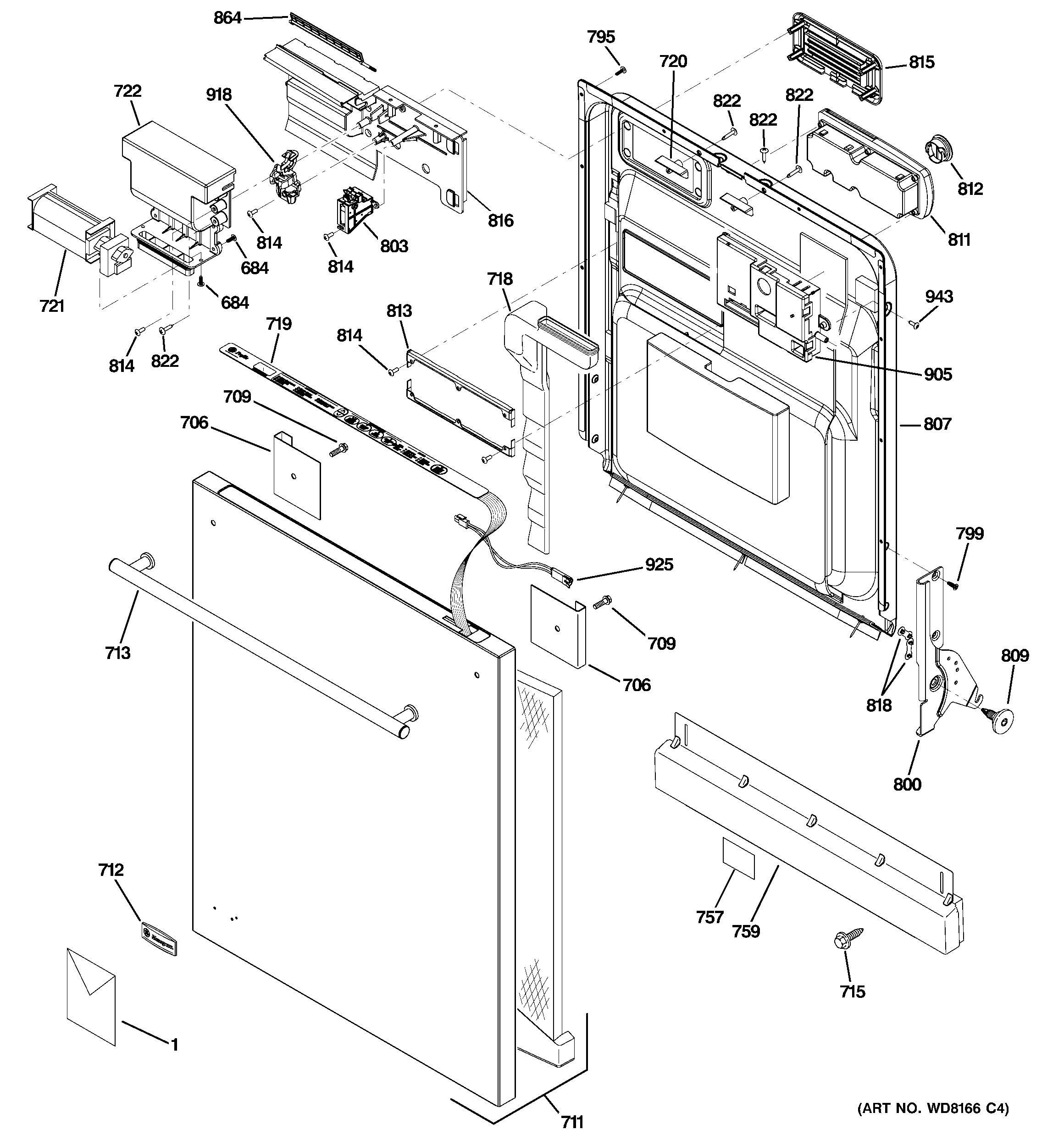

ZBD0710N00SS ESCUTCHEON & DOOR ASSEMBLY

ZBD0710N00SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

ZBD0710N00SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30485
1GEN 49-55024
1GEN 31-30586
684WD02X10111 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/2
706GEN WD01X10265
709WB01T10063 GE Oven Screw 1/4-TPI Flat Head Hex
711GEN WD34X11066
712WB02X10833 GE Oven Monogram Badge Small
712WB02X10832 GE Oven Monogram Logo
713WD09X10060 GE Dishwasher Stainless Steel Handle Assembly
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
718GEN WD12X10190
719WD34X11065 GE Dishwasher Keypad
720GEN WD01X10236
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
757GEN WD27X10217
759WD27X10218 GE Stainless Steel Dishwasher Toekick Assembly
795WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
799WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
800GEN WD14X10021
803WD13X10031 GE Dishwasher Latch
807GEN WD31X10067
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816GEN WD12X10254
818GEN WD12X10025
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
864WD12X10067 GE Dishwasher Flapper Vent
905WD21X10373 GE Dishwasher Module
918WD21X10172 GE Dishwasher Vent Driver
925GEN WD21X10208
943WZ5X219D GE Screw Package
