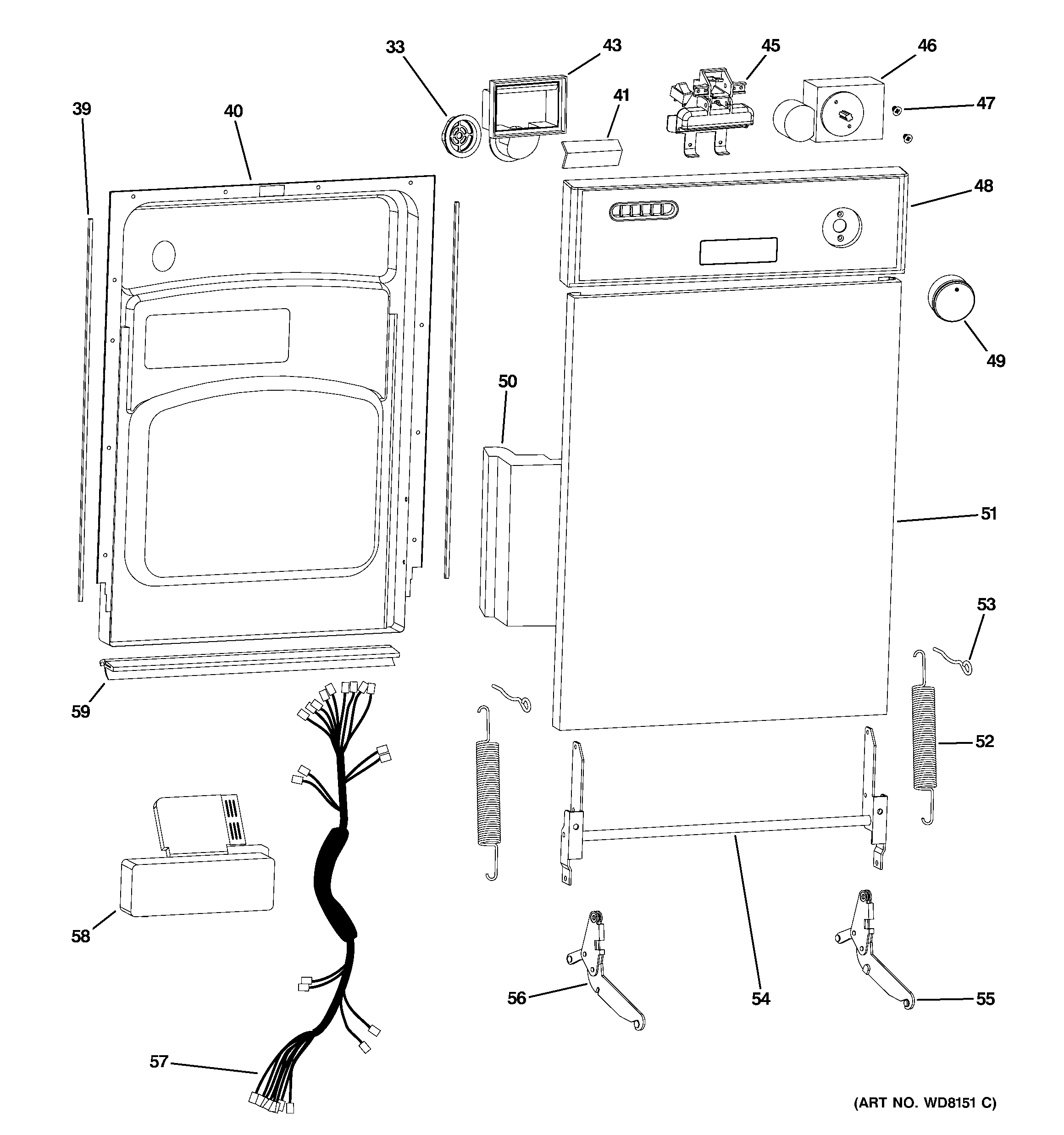

ZBD1800GSS CONTROL ASSEMBLY & DOOR

Products

Position	Product
33	WD18X10029 GE Dishwasher Vent Cap Ring Nut
39	GEN WD08X10047
40	WD31X10074 GE Dishwasher Inner Door Assembly
41	WD24X10034 GE Dishwasher Back Vent Board
43	WD12X10172 GE Dishwasher Vent Connection
45	GEN WD13X10028
46	TIMER
47	WD02X10119 GE Screw
48	CONTROL PANEL
49	KNOB ASSEMBLY
50	WD01X10246 GE Dishwasher Door Foam
51	WD31X10079 GE Dishwasher Outdoor Stainless Steel
52	WD03X10024 GE Dishwasher Door Hinge Spring
53	GEN WD01X10250
54	WD14X10018 GE Dishwasher Hinge Assembly
55	WD01X23640 GE Dishwasher Hinge Assembly Right Hand
56	WD01X23639 GE Dishwasher Hinge Assembly Left Hand
57	WIRING HARNESS
58	WD12X10174 GE Dishwasher Soap Cup
59	DOOR GASKET ASM
