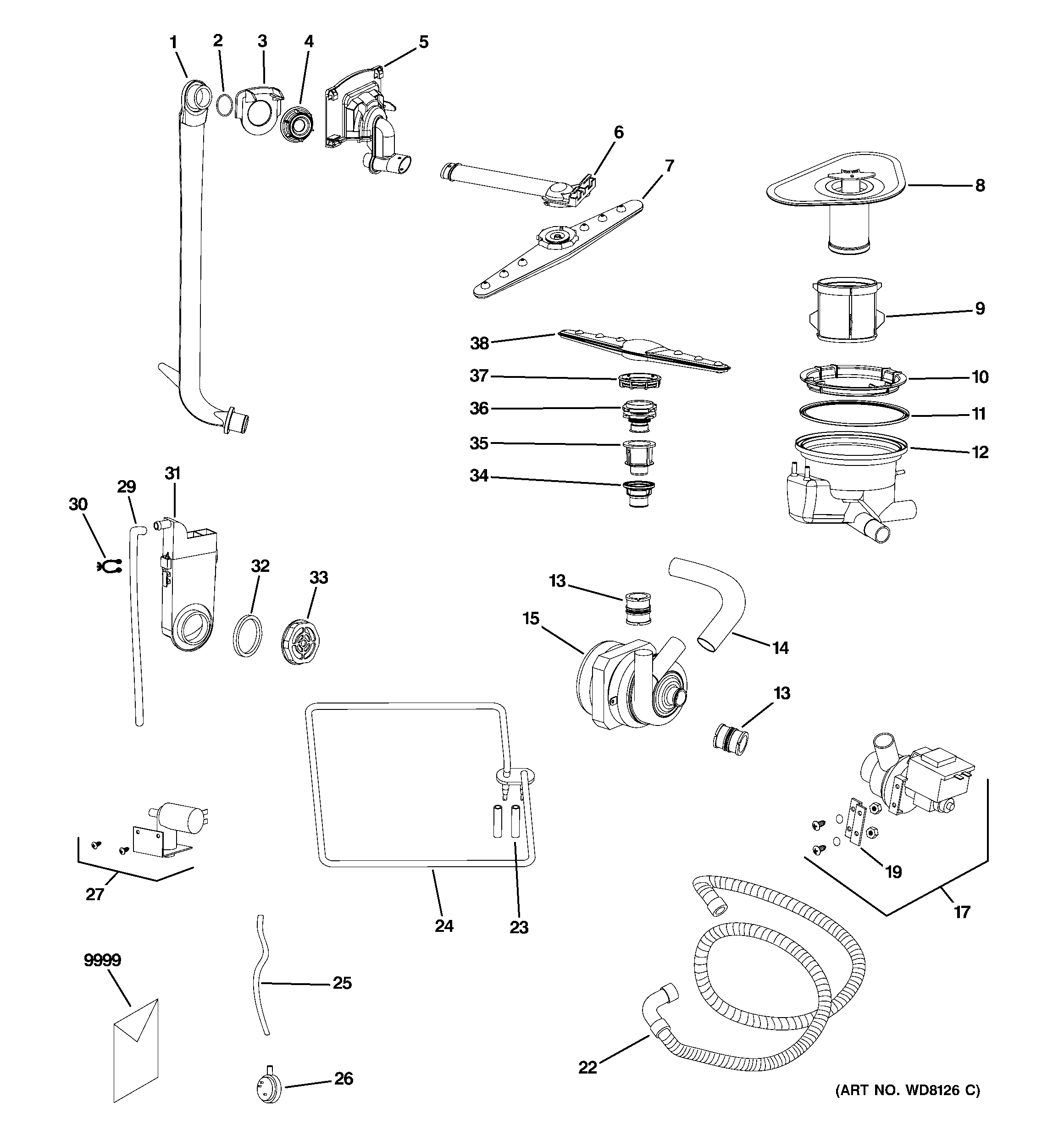

ZBD1800GSS MOTOR-PUMP MECHANISMadmin2025-04-26T10:47:46+00:00ZBD1800GSS MOTOR-PUMP MECHANISM ProductsPositionProduct1MAIN CONDUIT2GEN WD01X102403WD01X10241 GE Dishwasher Guide Assembly4WD01X10242 GE Dishwasher Nut Ring with Gasket5WD12X10165 GE Dishwasher Main Conduit Upper Spray6WD12X10166 GE Dishwasher Upper Spray Conduit7UPPER SPRAY ASM & GASKET8FILTER ASM9MICROFILTER10WD02X23654 GE Dishwasher Sump Clamping Nut11WD08X23655 GE Dishwasher Sump Gasket12SUMP13WD24X23621 GE Dishwasher Connector Hose14WD24X10028 GE Dishwasher Pump Hose15MOTOR PUMP ASM17DRAIN PUMP ASSY19WD01X10252 GE Dishwasher Mounting Plate22DRAIN HOSE23WD01X23643 GE Dishwasher Insulating Sleeve24WD05X23638 GE Heater Element Assembly25WD24X10030 GE Dishwasher Pressure Switch Hose26WD21X10191 GE Dishwasher Pressure Switch27WD15X10009 GE Dishwasher Water Valve Assembly with Screws29WD24X10031 GE Dishwasher Fill Hose30WD01X10251 GE Dishwasher Clamp Assembly31WD12X10170 GE Dishwasher Fill Funnel32WD01X10243 GE Dishwasher O-Ring33WD18X10029 GE Dishwasher Vent Cap Ring Nut34WD01X10244 GE Dishwasher Ring Nut Manifold SUPP35WD18X10030 GE Dishwasher Lower Manifold Support36LOWER SPRAY SHIFT37CONNECTING RING NUT38LOWER SPRAY ASM9999GEN 31-305119999OWNERS MANUAL9999GEN 31-30448
