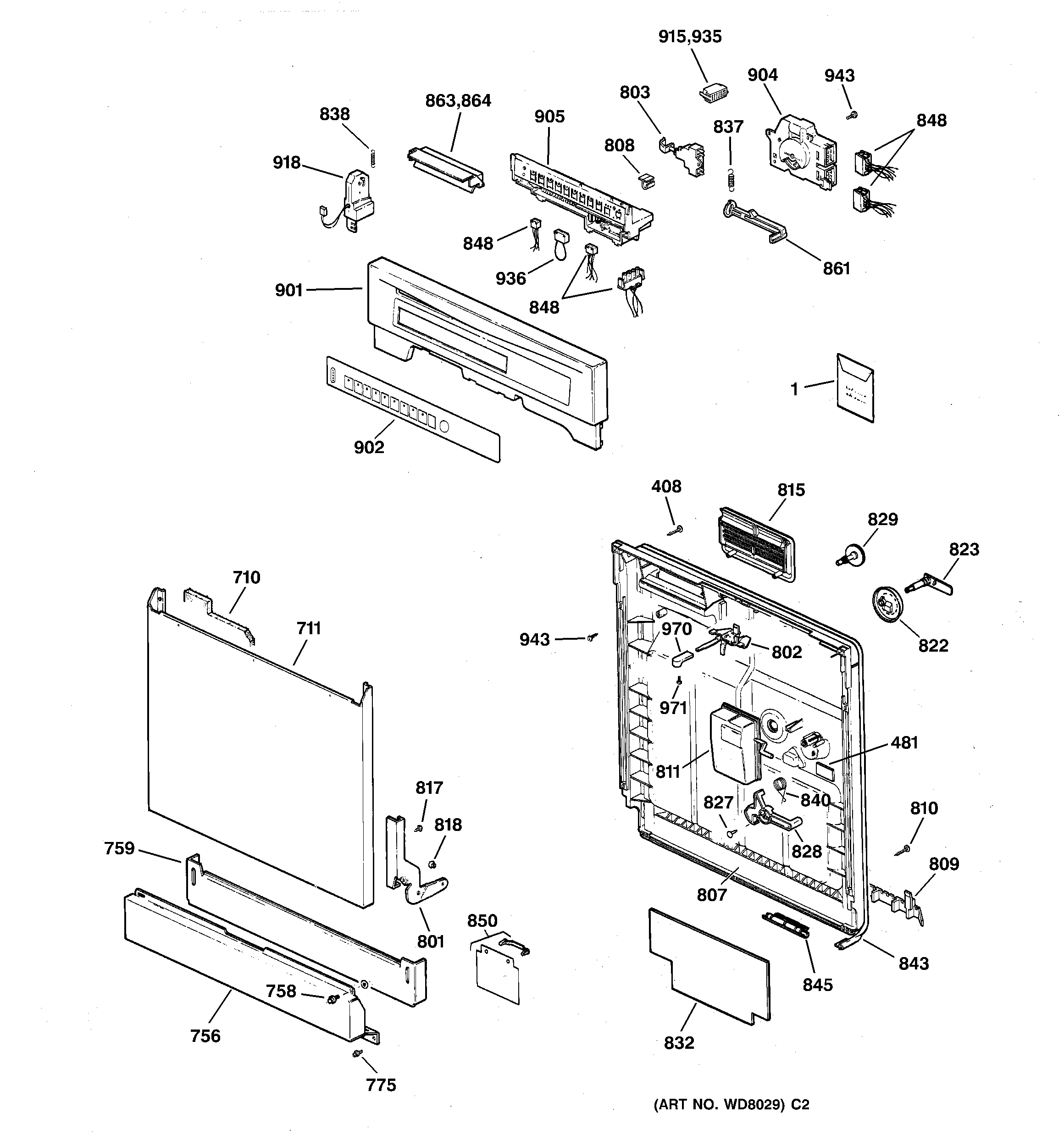

ZBD3500Z00WW ESCUTCHEON & DOOR ASSEMBLY

ZBD3500Z00WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

ZBD3500Z00WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30130
1GEN 49-5824
1GEN 31-3077
408GEN WD02X0296
481GEN WD01X10016
710GEN WD01X10019
711WD31X10025 GE Dishwasher Front Panel
711WD31X10024 GE Dishwasher Black Front Panel
756WD27X10225 GE Dishwasher Finished Access Panel
756WD27X10223 GE Dishwasher Access Panel Finished Black
758WD2X323D GE Dishwasher Screw Package
759GEN WD27X10020
759GEN WD27X10018
775SCREW 10-16X5/8 HXP WH
775WD2X5166 GE Dishwasher Screw
801GEN WD14X10001
801ARM HINGE COMPLETE – RH
802GEN WD13X0069
803WD06X10002 GE Dishwasher Intermittent Switch
807WD31X10004 GE Door Inner Panel
808WR2X4039 GE Refrigerator Clamp
809GEN WD31X0312
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
818GEN WD12X0231
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828GEN WD16X10002
829WD12X10284 GE Dishwasher Fill Cap
832GEN WD01X1469
837GEN WD03X0749
838GEN WD03X0776
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10016 GE Dishwasher Door Gasket
845WD08X10015 GE Dishwasher Gasket Insert
848GEN WD21X10025
850GEN WD12X0338
861GEN WD12X10019
863VENT ASM
864GEN WD12X10021
901GEN WD34X10141
901GEN WD34X10143
901ESCUTCHEON WH
901GEN WD34X10036
902GEN WD34X10142
902GEN WD34X10140
904GEN WD21X10018
905GEN WD21X10004
915GEN WD01X1433
915GEN WD01X1432
918GEN WD21X10022
935GEN WD01X1434
936WD21X10024 GE Dryer Model Selector Connector
943WZ5X219D GE Screw Package
970WD9X351 GE Latch Knob
970WD9X352 GE Dishwasher HN Latch Knob
971GEN WZ02X0045
