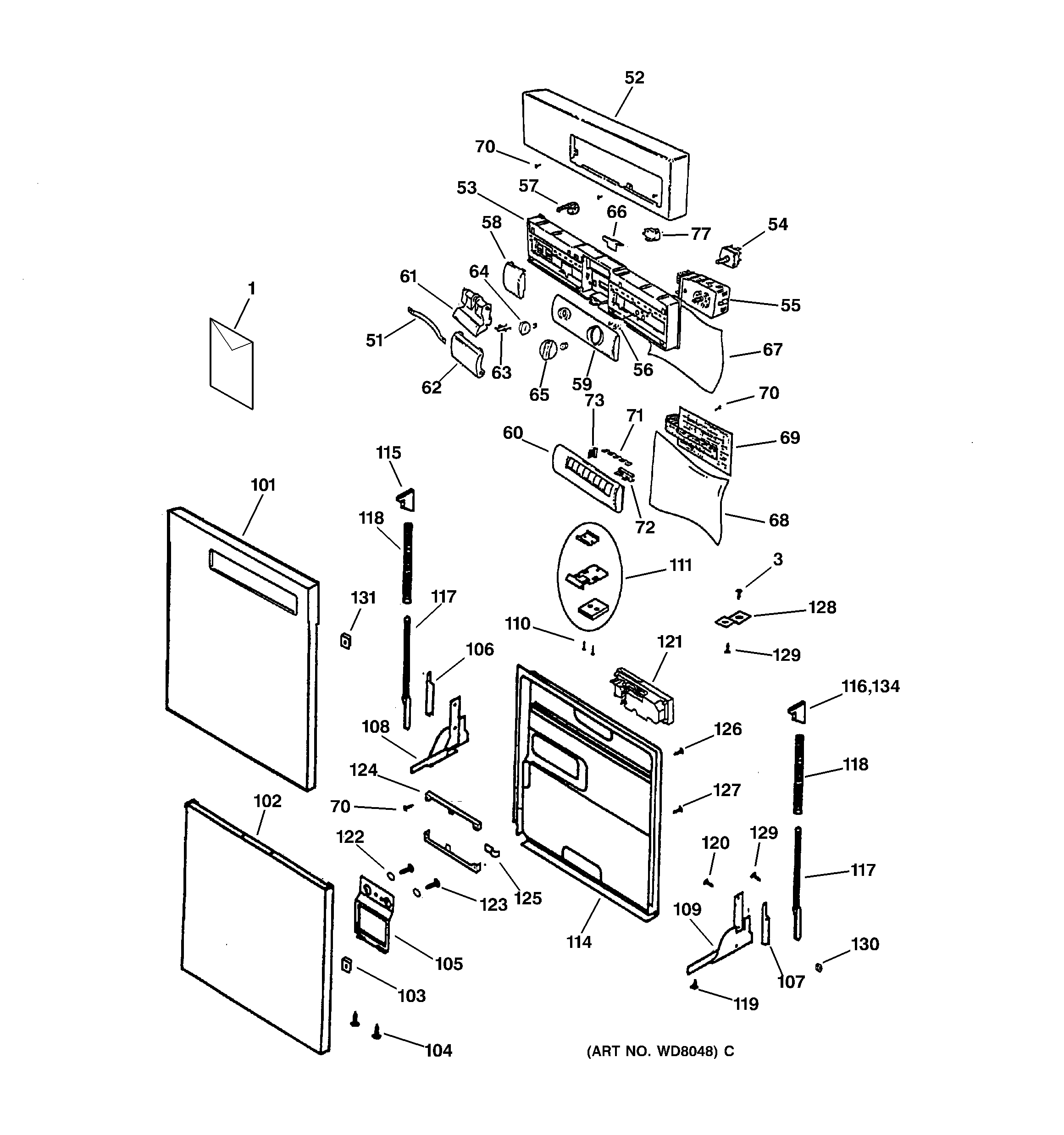

ZBD5600D01WW ESCUTCHEON & DOOR ASSEMBLY

ZBD5600D01WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

ZBD5600D01WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30503
1GEN 49-5859
1GEN 49-5860
3GEN WD02X10024
51GEN WD03X10008
52GEN WD34X10237
53GEN WD34X10233
54GEN WD21X10040
55GEN WD21X10041
56GEN WD02X10028
57GEN WD12X10027
58GEN WD34X10238
59GEN WD34X10239
61GEN WD09X10016
62GEN WD09X10017
63GEN WD03X10009
64GEN WD09X10018
65GEN WD09X10019
66GEN WD12X10028
67GEN WD12X10029
70SCREW NO. 7 1/2 PHIL HIL
77GEN WD21X10042
102GEN WD27X10041
103GEN WD02X10030
104GEN WD02X10031
105GEN WD01X10028
106GEN WD01X10029
107GEN WD01X10030
108GEN WD14X10010
109GEN WD14X10011
110SCREW DOOR LATCH ASSY.
111GEN WD13X10004
114GEN WD31X10014
115GEN WD01X10031
116GEN WD01X10032
117GEN WD01X10033
118GEN WD03X10010
119GEN WD02X10033
120GEN WD02X10034
121GEN WD12X10030
122GEN WD01X10034
123GEN WD02X10035
124GEN WD01X10035
126SCREW NO. 8 S/S HILO
127GEN WD02X10037
128GEN WD01X10036
129SCREW NO. 8 3/4 PAN HEAD
130GEN WD02X10039
162SCR 8-18 AB PHR 1/2 S
324GEN WD01X10057
