ZBD5700F00BB ESCUTCHEON & DOOR ASSEMBLY – Aparts

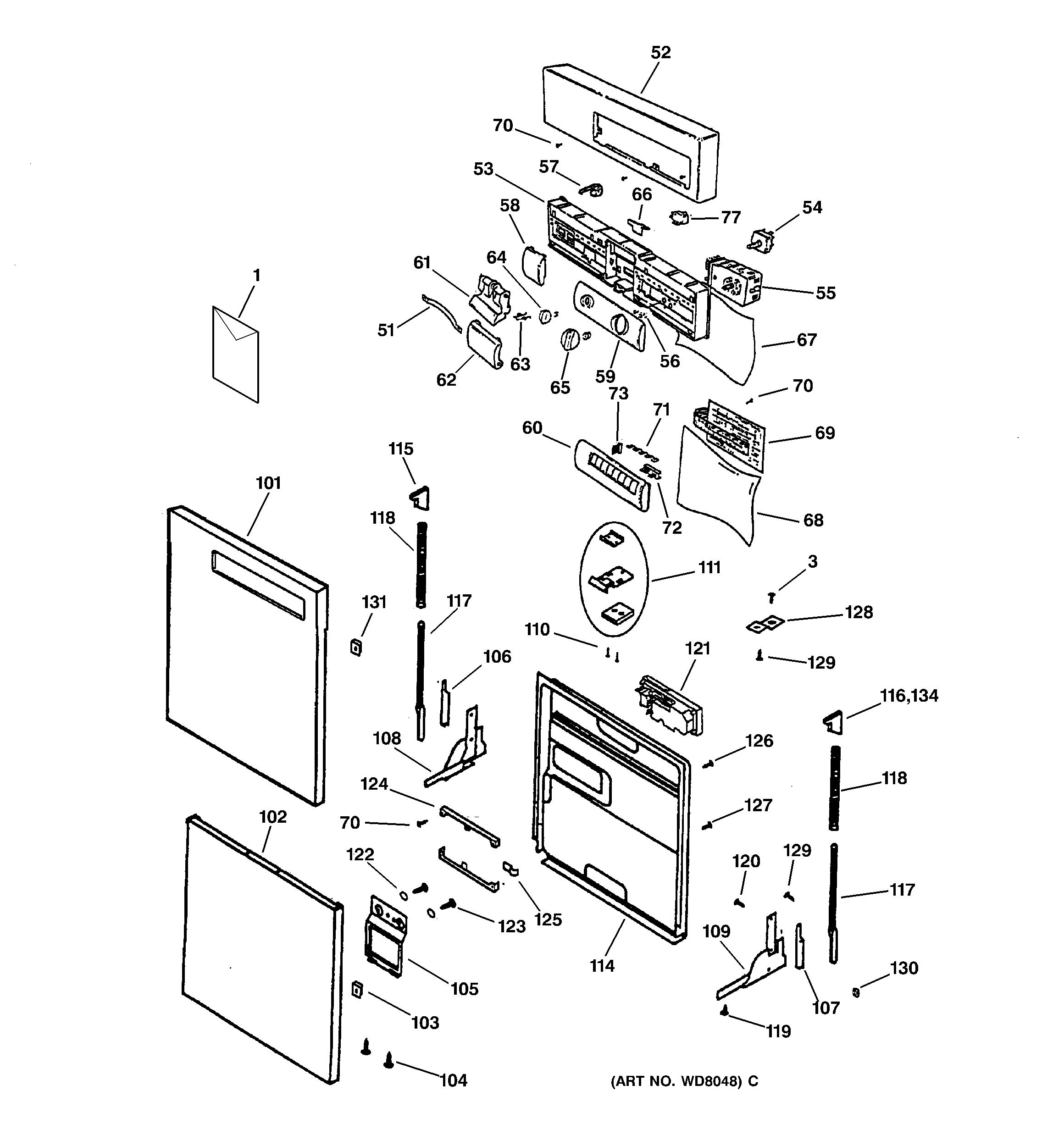

ZBD5700F00BB ESCUTCHEON & DOOR ASSEMBLY

Products

Position	Product
1	GEN 49-5882
1	GEN 49-5860
1	GEN 31-30341
3	GEN WD02X10024
51	GEN WD03X10008
52	GEN WD34X10232
53	GEN WD34X10233
57	GEN WD12X10027
58	GEN WD34X10234
60	GEN WD34X10240
61	GEN WD09X10012
62	GEN WD09X10013
63	GEN WD03X10009
66	GEN WD12X10028
68	GEN WD12X10034
69	GEN WD21X10094
70	SCREW NO. 7 1/2 PHIL HIL
71	GEN WD21X10051
72	GEN WD21X10052
73	GEN WD21X10053
77	GEN WD21X10042
102	GEN WD27X10040
103	GEN WD02X10030
104	GEN WD02X10031
105	GEN WD01X10028
106	GEN WD01X10029
107	GEN WD01X10030
108	GEN WD14X10010
109	GEN WD14X10011
110	SCREW DOOR LATCH ASSY.
111	GEN WD13X10004
114	GEN WD31X10014
115	GEN WD01X10031
117	GEN WD01X10033
118	GEN WD03X10010
119	GEN WD02X10033
120	GEN WD02X10034
121	GEN WD12X10030
122	GEN WD01X10034
123	GEN WD02X10035
124	GEN WD01X10035
125	GEN WD01X10060
126	SCREW NO. 8 S/S HILO
127	GEN WD02X10037
128	GEN WD01X10036
129	SCREW NO. 8 3/4 PAN HEAD
130	GEN WD02X10039
134	GEN WD01X10061
324	GEN WD01X10057
