ZBD5700F00BB MOTOR-PUMP & SPRAY ARM ASSEMBLY – Aparts

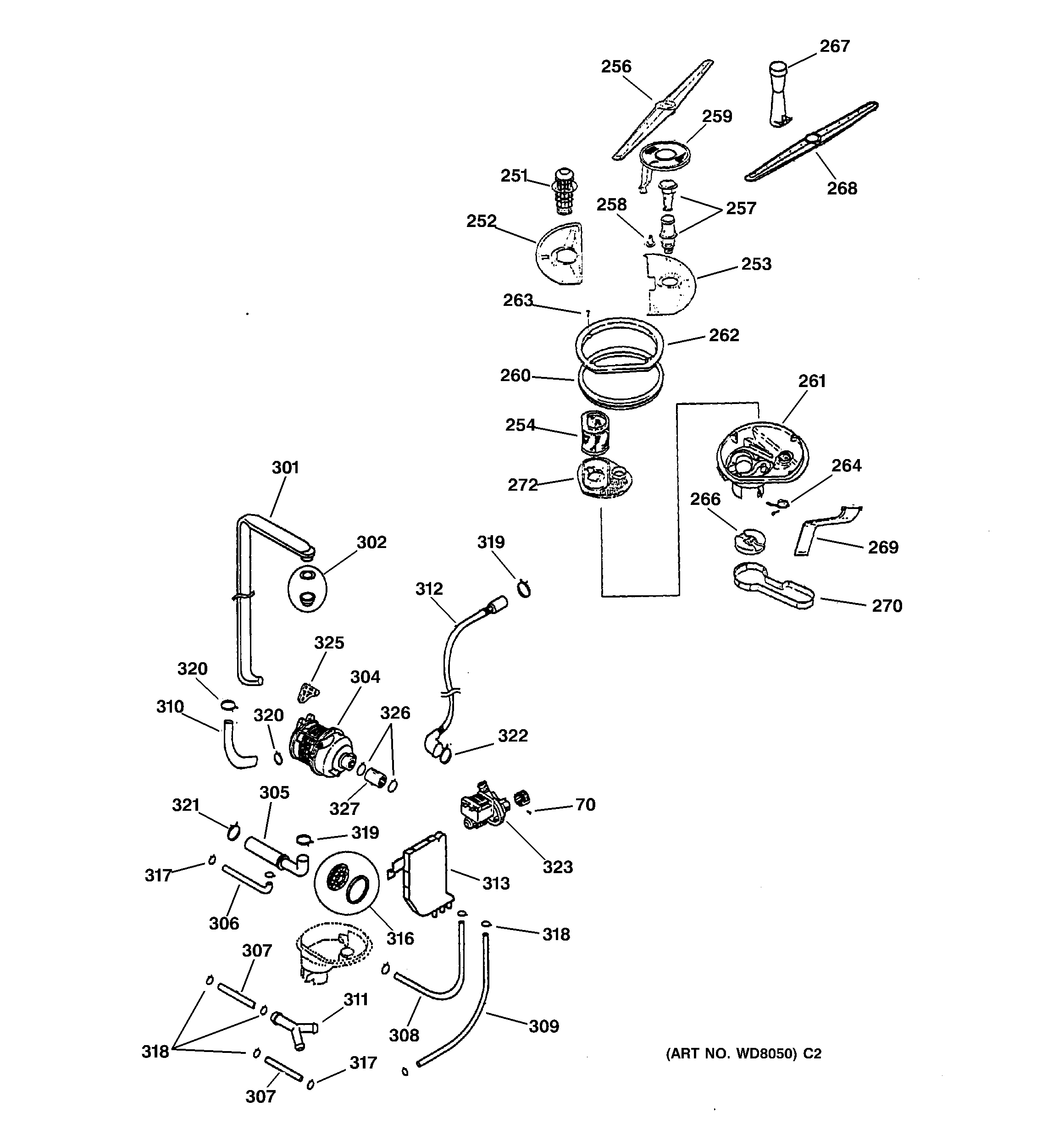

ZBD5700F00BB MOTOR-PUMP & SPRAY ARM ASSEMBLY

Products

Position	Product
70	SCREW NO. 7 1/2 PHIL HIL
251	GEN WD18X10007
252	GEN WD18X10002
253	GEN WD18X10003
254	GEN WD18X10004
256	GEN WD22X10010
257	LOWER VENTURI ASSEMBLY
258	GEN WD22X10012
259	GEN WD22X10013
260	GEN WD19X10016
261	GEN WD19X10017
262	GEN WD17X10001
263	GEN WD02X10040
264	GEN WD21X10049
266	GEN WD12X10033
267	UPPER VENTURI ASSEMBLY
268	GEN WD22X10015
269	GEN WD01X10048
270	GEN WD01X10049
301	GEN WD22X10016
302	GEN WD08X10013
304	GEN WD26X10005
305	GEN WD24X10008
306	GEN WD24X10009
307	GEN WD24X10010
308	GEN WD24X10011
309	GEN WD24X10012
310	GEN WD24X10013
311	GEN WD18X10005
312	GEN WD18X10006
313	GEN WD01X10050
316	GEN WD02X10041
317	GEN WD01X10051
318	GEN WD01X10052
319	WD01X24246 GE Dishwasher Clamp
320	GEN WD01X10054
321	GEN WD01X10055
322	GEN WD01X10056
323	GEN WD19X10018
325	GEN WD01X10058
326	GEN WD01X10059
327	GEN WD19X10019
