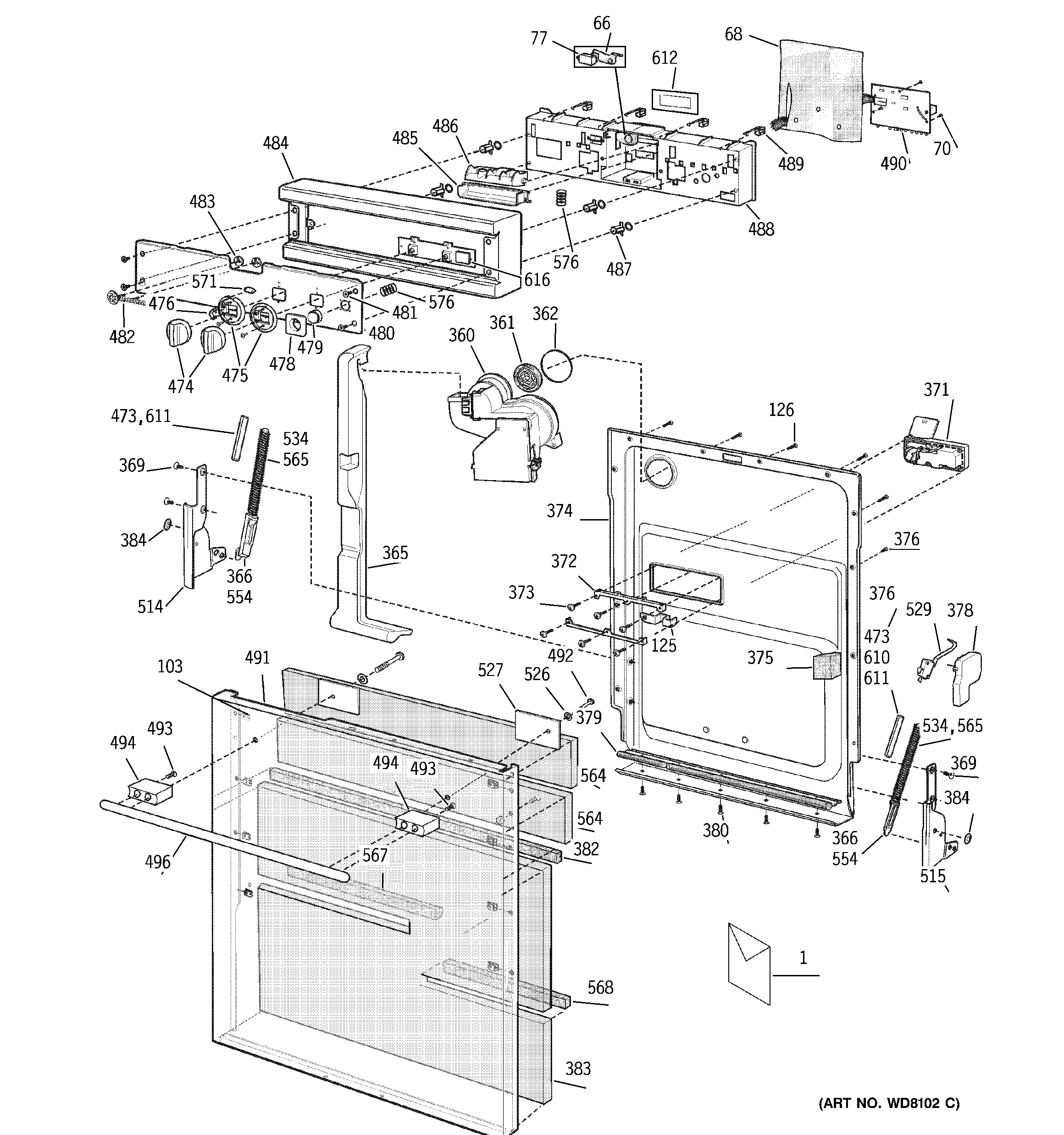

ZBD6605G00SS DOOR ASSEMBLY

Products

Position	Product
1	GEN 49-5913
1	GEN 49-5905
1	GEN 31-30375
66	GEN WD12X10028
68	GEN WD12X10034
70	SCREW NO. 7 1/2 PHIL HIL
77	GEN WD21X10042
103	GEN WD02X10030
125	GEN WD01X10060
126	SCREW NO. 8 S/S HILO
360	GEN WD18X10012
361	GEN WD24X10022
362	GEN WD01X10131
365	GEN WD24X10021
366	GEN WD01X10132
369	GEN WD02X10070
371	GEN WD28X10087
372	GEN WD28X10088
373	GEN WD02X10071
374	GEN WD27X10089
375	GEN WD27X10090
376	GEN WD02X10072
378	GEN WD21X10136
379	GEN WD27X10091
380	GEN WD02X10073
382	GEN WD27X10093
383	GEN WD30X10002
384	GEN WD27X10094
473	SLEEVE, SPRING, SHORT
474	GEN WD09X10034
475	GEN WD01X10157
476	SPRING, BEZEL INDENT
478	BEZEL, ON/OFF BUTTON
479	BUTTON, ON/OFF
480	GEN WD27X10109
482	BADGE, MONOGRAM LOGO
483	WR01X10300 GE Refrigerator Logo Clip
484	PANEL, CONTROL
485	HANDLE, RECESS
486	GEN WD27X10107
487	GEN WD01X10145
488	PANEL, CONTROL, BASE
489	GEN WD01X10139
490	GEN WD21X10142
491	PANEL, DOOR (OUTER)(SS)
492	SCREW, HANDLE
493	SCREW, BLOCK, HANDLE
494	BLOCK, HANDLE
496	HANDLE, DOOR (S/STEEL)
514	HINGE, DOOR LH.
515	HINGE, DOOR RH.
526	WASHER,1/4"INT.SHKPROOF
527	PLATE, BACKING
529	SWITCH, LIGHT
534	SPRING,HINGE,FRONT(GRN)
554	SUPPORT, SPRING, REAR
564	GEN WD30X10010
565	SPRING,HINGE,REAR(BLUE)
567	GEN WD27X10099
568	GEN WD27X10100
571	GEN WD21X10137
576	SPRING, HANDLE
610	GEN WD03X10017
611	GEN WD03X10018
612	GEN WD01X10194
616	GEN WD01X10203
