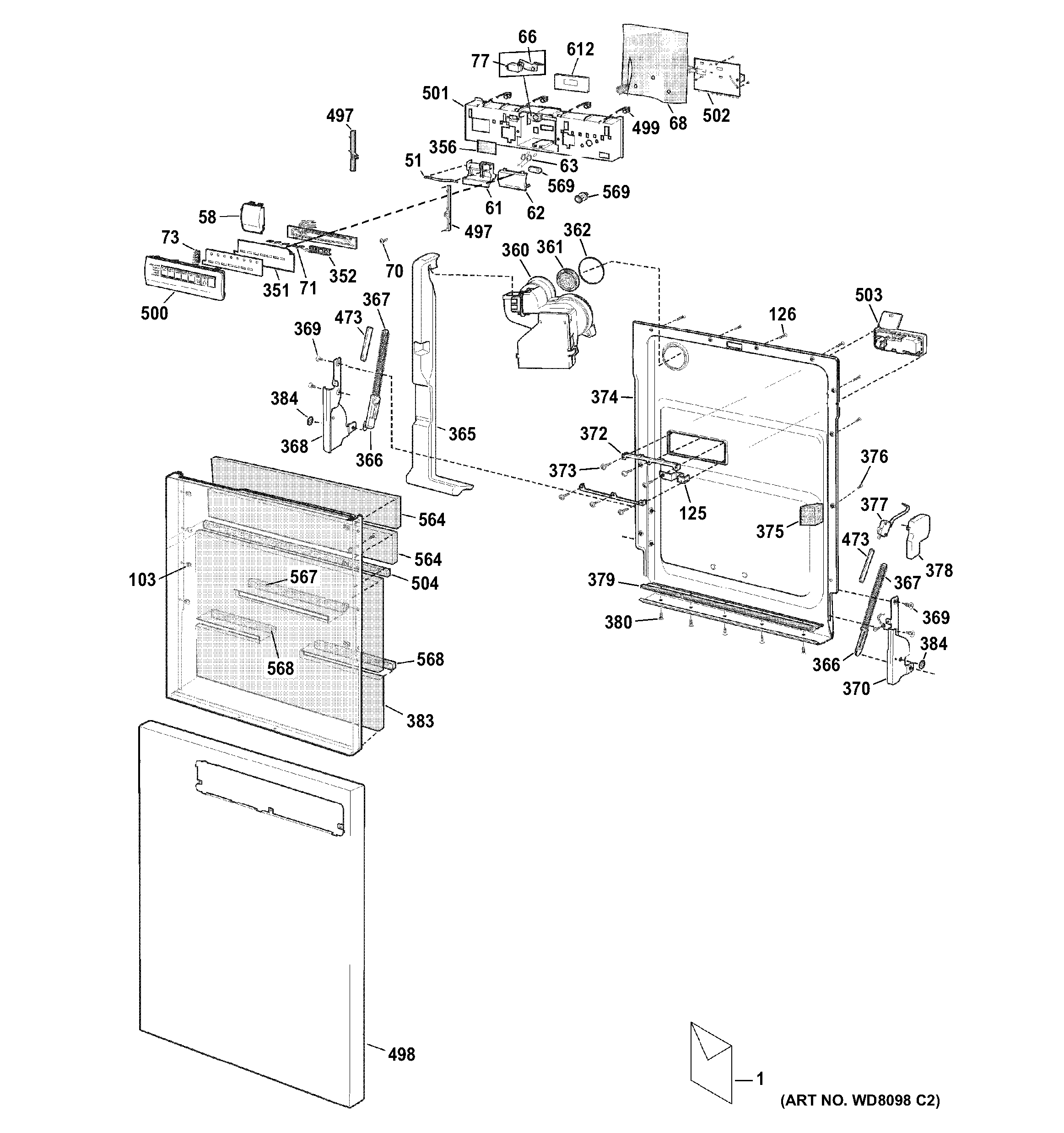

ZBD6700G00BB ESCUTCHEON & DOOR ASSEMBLY

ZBD6700G00BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

ZBD6700G00BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30376
1GEN 49-5905
1GEN 49-5904
51GEN WD03X10008
58GEN WD34X10234
61GEN WD09X10012
62GEN WD09X10013
63GEN WD03X10009
66GEN WD12X10028
68GEN WD12X10034
70SCREW NO. 7 1/2 PHIL HIL
71GEN WD21X10051
73GEN WD21X10053
77GEN WD21X10042
103GEN WD02X10030
125GEN WD01X10060
126SCREW NO. 8 S/S HILO
351GEN WD27X10096
352GEN WD01X10111
356GEN WD01X10135
360GEN WD18X10012
361GEN WD24X10022
362GEN WD01X10131
365GEN WD24X10021
366GEN WD01X10132
367GEN WD01X10133
368GEN WD14X10012
369GEN WD02X10070
370GEN WD14X10013
372GEN WD28X10088
373GEN WD02X10071
374GEN WD27X10089
375GEN WD27X10090
376GEN WD02X10072
377GEN WD21X10135
378GEN WD21X10136
379GEN WD27X10091
380GEN WD02X10073
383GEN WD30X10002
384GEN WD27X10094
473GEN WD01X10187
497FILLER PANEL (BLACK)
498GEN WD27X10111
499GEN WD01X10161
500GEN WD27X10110
501GEN WD34X10622
502GEN WD21X10144
503GEN WD28X10100
504GEN WD27X10112
564GEN WD30X10010
567GEN WD27X10099
568GEN WD27X10100
569GEN WD27X10101
612GEN WD01X10194
