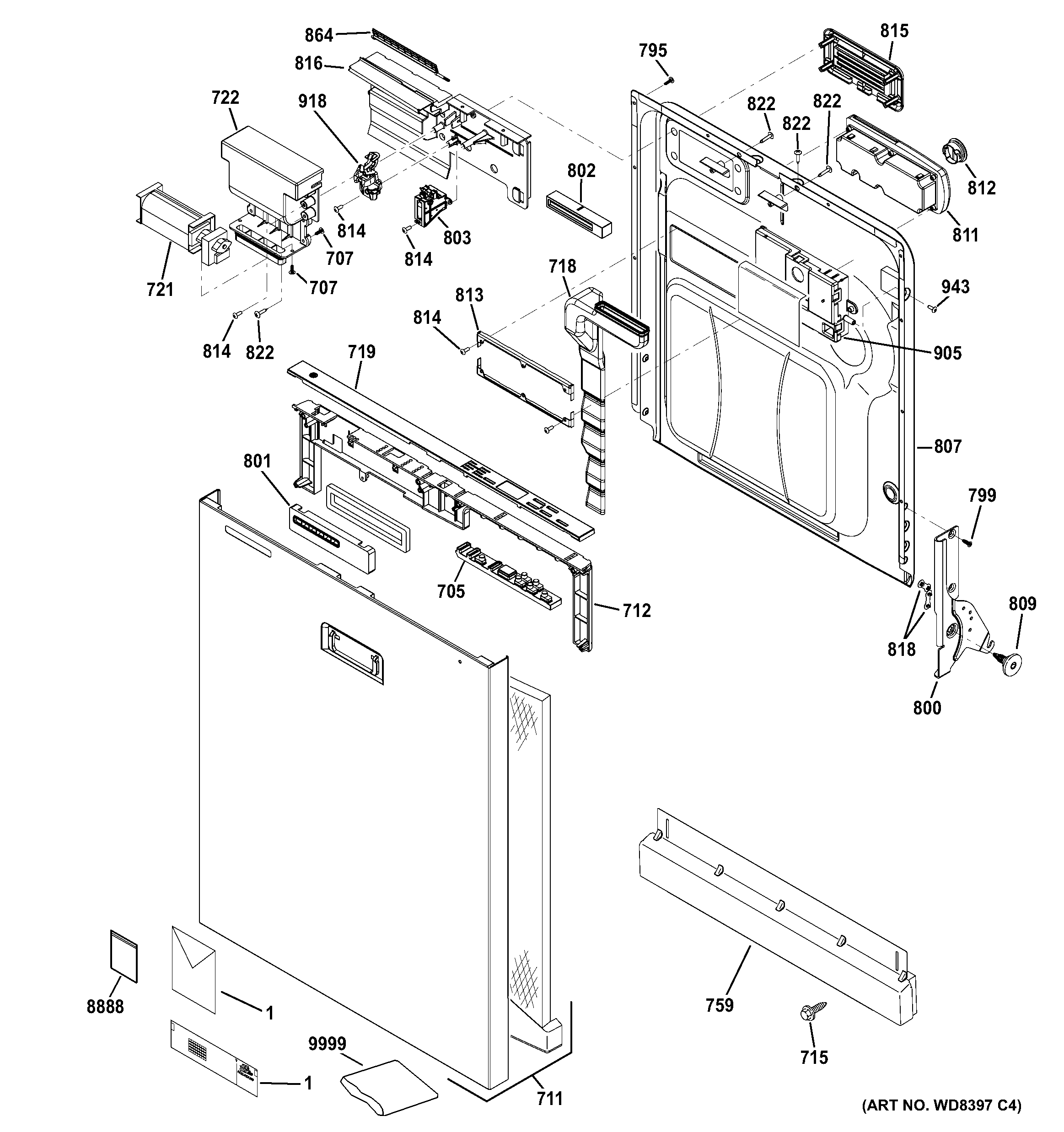

ZBD6900D00II ESCUTCHEON & DOOR ASSEMBLY

ZBD6900D00II ESCUTCHEON & DOOR ASSEMBLY

Written by

in

ZBD6900D00II ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1WD01X10295 GE Dishwasher Hardness Tester Strip
1GEN 31-30284
1GEN WD00X939
1GEN 31-30281
1GEN 31-30569-4
1GEN 31-30636
1WD21X10485 GE Selector Plug Assembly Model
1GEN 49-55079
1WD01X10557 GE Dishwasher HMI Harness Assembly
1WD01X10551 GE Dishwasher Latch Bracket
1WD01X10420 GE Dishwasher Thermostat Service Kit
707SCR 10-24 TAP RNP 1/2
711PANEL ASM OUTER -II MODELS
712CONSOLE COVER ASM
715WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
718GEN WD12X10190
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
759WD27X10206 GE Dishwasher Toekick Assembly
795WD2X444 GE Dishwasher Mechanical Screw
799WH02X10002 GE Screw
800GEN WD14X10047
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
803WD13X10031 GE Dishwasher Latch
807DOOR INNER & GASKET
809GEN WD02X10084
809SCR 8-18 AB OV .655
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814SCREWS 8-10 PL TRP 1/2 S
815WD12X10127 GE Dishwasher Vent Cover
816WD12X10383 GE Dishwasher Vent Bracket Assembly
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822GEN WD02X10203
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
864WD12X10067 GE Dishwasher Flapper Vent
905WD21X10518 GE Dishwasher Module Control Assembly Kit
918WD21X10172 GE Dishwasher Vent Driver
943GEN WD02X10200
943WD02X10218 GE Dishwasher Screw 8-16X1/2 STN STL
