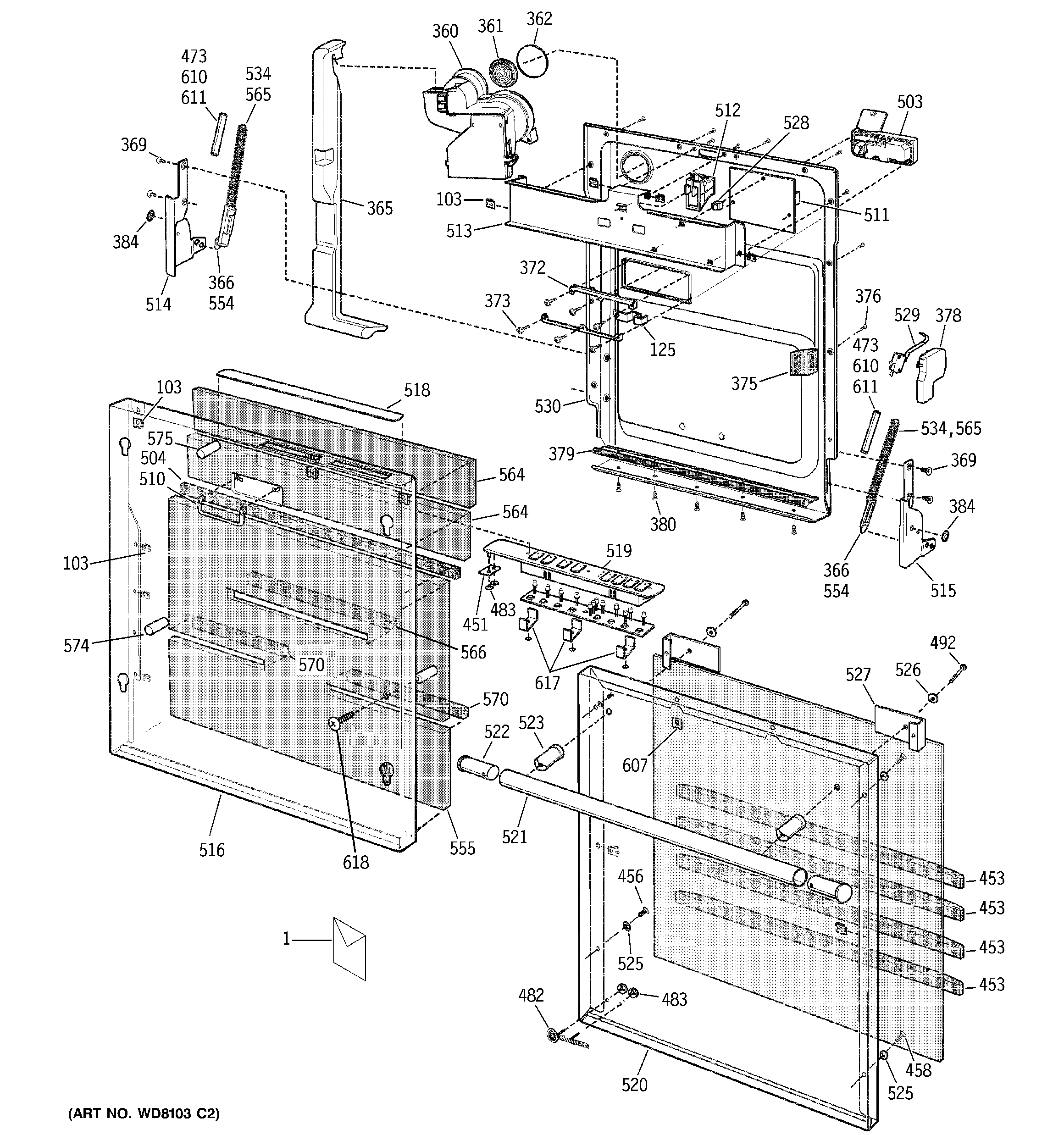

ZBD7105G00SS DOOR ASSEMBLY

Products

Position	Product
1	GEN 31-30376
1	GEN 49-5905
1	GEN 49-5913
103	GEN WD02X10030
125	GEN WD01X10060
360	GEN WD18X10012
361	GEN WD24X10022
362	GEN WD01X10131
365	GEN WD24X10021
366	GEN WD01X10132
369	GEN WD02X10070
372	GEN WD28X10088
373	GEN WD02X10071
375	GEN WD27X10090
376	GEN WD02X10072
378	GEN WD21X10136
379	GEN WD27X10091
380	GEN WD02X10073
384	GEN WD27X10094
451	PLATE, HOUSING BACKING
453	GEN WD27X10123
456	GEN WD02X10100
458	GEN WD02X10081
473	SLEEVE, SPRING, SHORT
482	BADGE, MONOGRAM LOGO
483	WR01X10300 GE Refrigerator Logo Clip
492	SCREW, HANDLE
503	GEN WD28X10100
504	GEN WD27X10112
510	GEN WD09X10037
511	GEN WD21X10149
512	SWITCH, O/CENTRE LATCH
513	GEN WD34X10832
514	HINGE, DOOR LH.
515	HINGE, DOOR RH.
516	PANEL, DOOR (OUTER)(BLK)
518	GEN WD27X10124
519	HOUSING, LED DISPLAY
520	GEN WD34X10626
521	GEN WD09X10038
522	GEN WD09X10039
523	GEN WD01X10173
525	GEN WD01X10170
526	WASHER,1/4"INT.SHKPROOF
527	GEN WD01X10199
528	GEN WD01X10174
529	SWITCH, LIGHT
530	PANEL, DOOR (INNER)
534	GEN WD01X10172
554	SUPPORT, SPRING, REAR
555	INSULATION, DOOR LOWER
564	GEN WD30X10010
565	SPRING,HINGE,REAR(BLUE)
566	BAFFLE, DOOR, LONG
570	BAFFLE. DOOR, SHORT
574	SPACER, DOOR (LONG)
575	SPACER, DOOR (SHORT)
607	GEN WD01X10200
610	GEN WD03X10017
611	GEN WD03X10018
617	GEN WD01X10198
618	GEN WD01X10201
