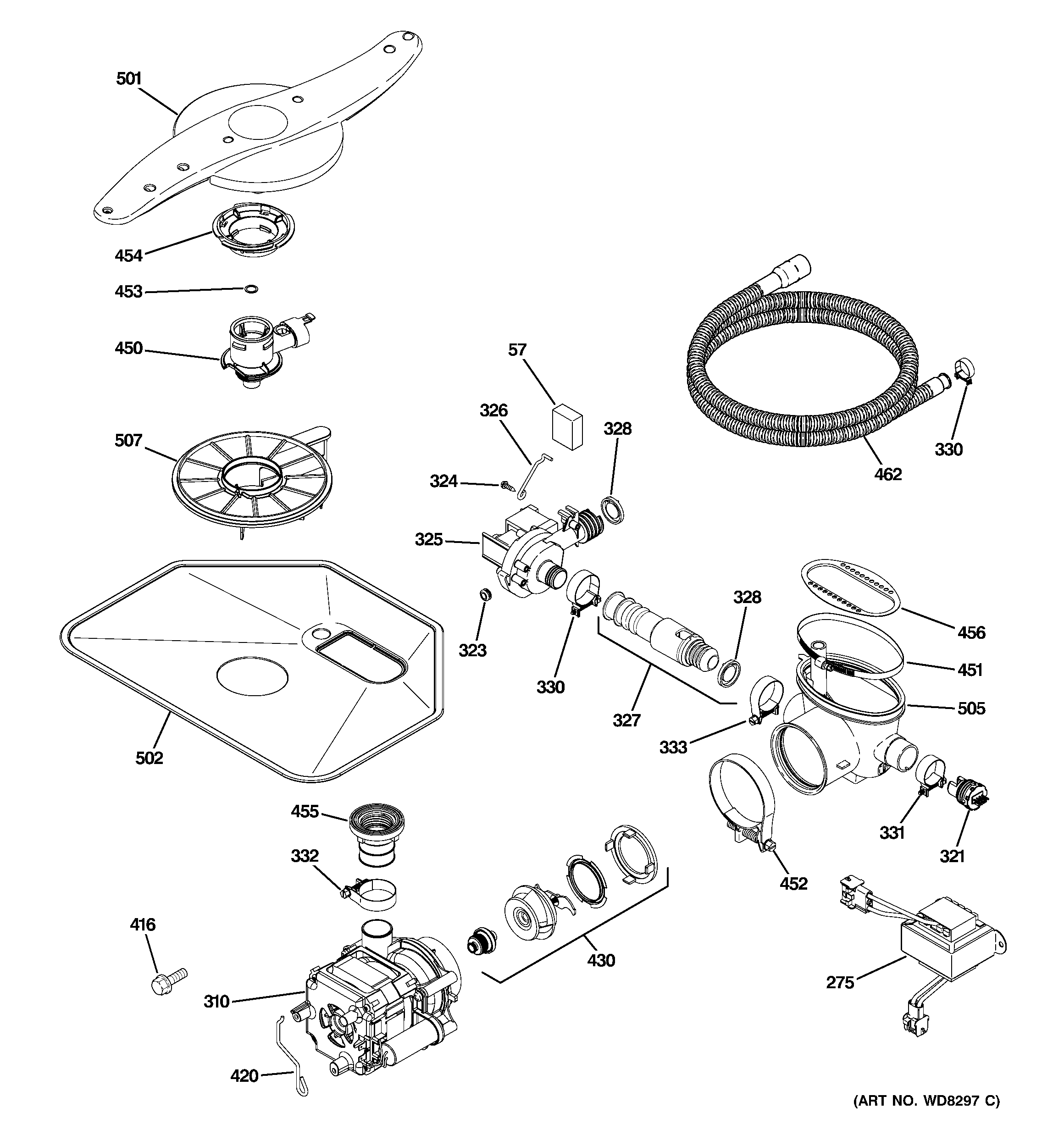

ZBD7920P10SS MOTOR-PUMP MECHANISM

ZBD7920P10SS MOTOR-PUMP MECHANISM

Written by

in

ZBD7920P10SS MOTOR-PUMP MECHANISM

Products

PositionProduct
57GEN WD01X10284
275WD21X10210 GE Dishwasher Transformer Assembly
310WD26X10053 GE Dishwasher Pump and Motor Assembly
321GEN WD21X10272
323WD01X10269 GE Dishwasher Grommet
324WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
326GEN WD01X10282
327PUMP DRAIN ASM
328WD01X10406 GE Dishwasher Valve Flapper Dual Pump
330WD01X10279 GE Dishwasher Clamp
331WD01X10104 GE Dishwasher Hose Clamp
332WD01X10103 GE Dishwasher Clamp
333WD01X10105 GE Dishwasher Clamp
416WD2X444 GE Dishwasher Mechanical Screw
420WD01X10211 GE Dishwasher Mechanical Hanger Assembly
430GEN WD19X10040
450GEN WD18X10009
451WD01X10210 GE Dishwasher Sump Clamp
452WD1X1392 GE Dishwasher Sump Clamp
453GEN WD01X10107
454WD12X10061 GE Arm Retainer Nut
455WD18X10010 GE Dishwasher Pump Connector Assembly
456WD01X10219 GE Dishwasher Sump Plate
462WD24X10045 GE Dishwasher Drain Tube Assembly
501WD22X10062 GE Dishwasher Arm Spray Low Assembly
502WD22X10077 GE Dishwasher Sump and Cover Filter Assembly
502COARSE FILTER ASM
505WD18X10026 GE Dishwasher Sump Inlet Assembly
507WD12X10109 GE Dishwasher Fine Filter Assembly
