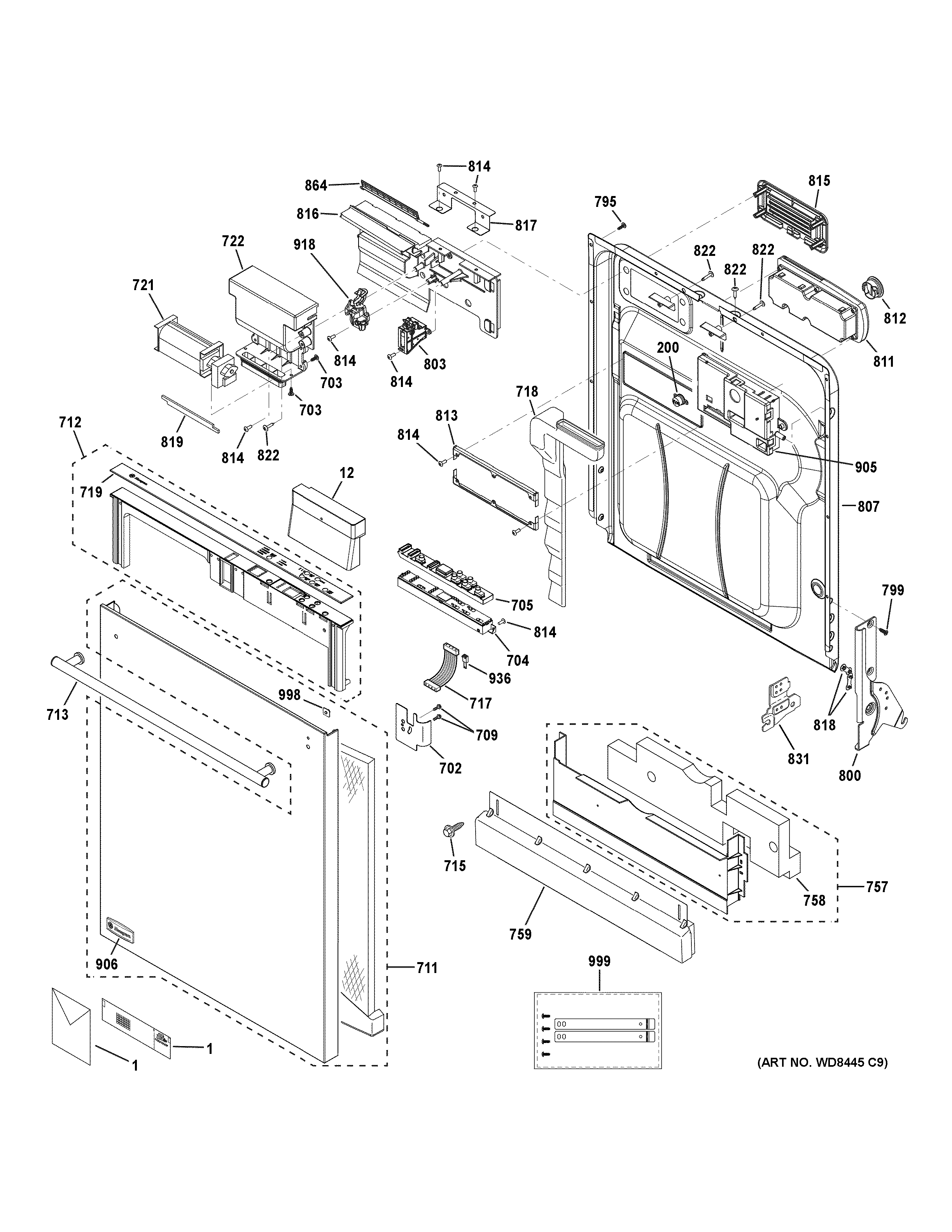

ZBD7920V00SS ESCUTCHEON & DOOR ASSEMBLY

ZBD7920V00SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

ZBD7920V00SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM MANUAL USE & CARE
1WD01X10295 GE Dishwasher Hardness Tester Strip
1PM SHEET MINI MANUAL
12BOARD CNTRL SHIELD
200WD01X10547 GE Dishwasher TCO Kit Assembly
702HANDLE BRACKET
703WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
704TACTILE ASM HOUSING
705WD01X10619 GE Dishwasher Button Assembly
709WB01T10063 GE Oven Screw 1/4-TPI Flat Head Hex
711PANEL ASM OUTER
713WD09X10060 GE Dishwasher Stainless Steel Handle Assembly
715WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
717WD01X10557 GE Dishwasher HMI Harness Assembly
718GEN WD12X10190
719WD27X10377 GE Dishwasher Console and Cover Assembly
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
757WD27X10250 GE Dishwasher Toekick Assembly Kit
758WD01X10421 GE Dishwasher Foam Brace
759WD27X10218 GE Stainless Steel Dishwasher Toekick Assembly
795SCR 8-18 AB OV .655
799SCR 10-24 TAP RNP 1/2
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
800GEN WD14X10047
803WD13X10031 GE Dishwasher Latch
807DOOR INNER & GASKET
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816WD12X10383 GE Dishwasher Vent Bracket Assembly
817WD01X10551 GE Dishwasher Latch Bracket
818WD12X10313 GE Dishwasher Hinge Arm Bearing
819GASKET CONDUIT
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
831WD35X10360 GE Dishwasher Hinge Weld Service Kit Stainless Steel
864WD12X10067 GE Dishwasher Flapper Vent
905WD21X10518 GE Dishwasher Module Control Assembly Kit
906WB02X10833 GE Oven Monogram Badge Small
918WD21X10172 GE Dishwasher Vent Driver
936MODEL SELECTOR PLUG ASM
998LENS INDICATOR
999WD35X10372 GE Dishwasher Bag and Bracket Assembly
