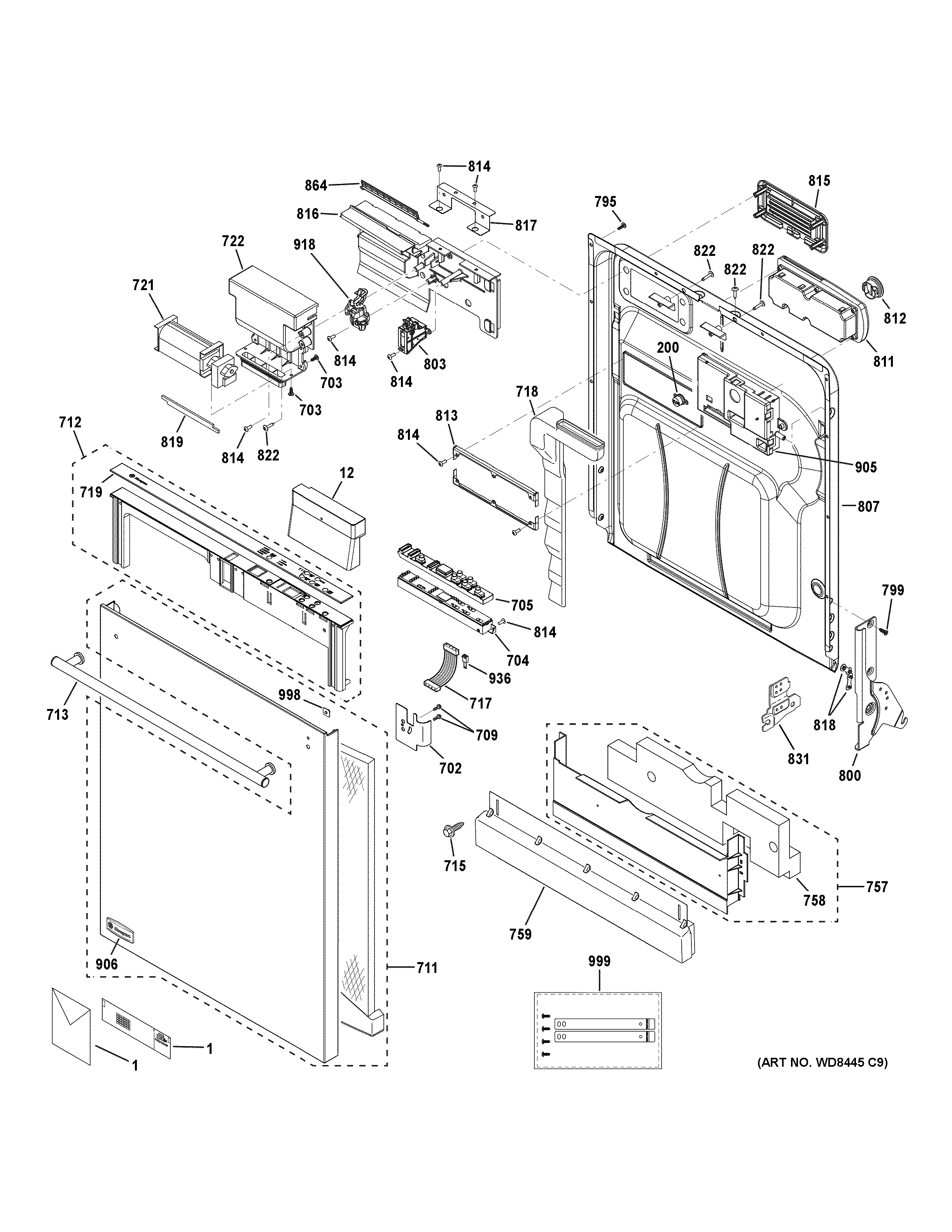

ZBD7920V50SS ESCUTCHEON & DOOR ASSEMBLYadmin2025-04-26T10:50:52+00:00ZBD7920V50SS ESCUTCHEON & DOOR ASSEMBLY ProductsPositionProduct1PM INSTALL INSTRUCTIONS1PM MANUAL USE & CARE1WD01X10295 GE Dishwasher Hardness Tester Strip1PM SHEET MINI MANUAL12BOARD CNTRL SHIELD200WD01X10547 GE Dishwasher TCO Kit Assembly702HANDLE BRACKET703WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw704TACTILE ASM HOUSING705WD01X10619 GE Dishwasher Button Assembly709WB01T10063 GE Oven Screw 1/4-TPI Flat Head Hex711PANEL ASM OUTER713WD09X10060 GE Dishwasher Stainless Steel Handle Assembly715WH02X10126 GE Screw 8-18 B 1HW 1/2 SN717WD01X10557 GE Dishwasher HMI Harness Assembly718GEN WD12X10190719WD27X10377 GE Dishwasher Console and Cover Assembly721WD26X10056 GE Dishwasher Blower722WD12X10351 GE Dishwasher Inlet Transition757WD27X10250 GE Dishwasher Toekick Assembly Kit758WD01X10421 GE Dishwasher Foam Brace759WD27X10218 GE Stainless Steel Dishwasher Toekick Assembly795SCR 8-18 AB OV .655799SCR 10-24 TAP RNP 1/2800GEN WD14X10041800GEN WD14X10040803WD13X10031 GE Dishwasher Latch807DOOR INNER & GASKET811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser812WD12X10122 GE Dishwasher Dispenser Cap813WD01X10207 GE Dishwasher Bracket Detergent Display814GEN WD02X10104815WD12X10127 GE Dishwasher Vent Cover816WD12X10383 GE Dishwasher Vent Bracket Assembly817WD01X10551 GE Dishwasher Latch Bracket818WD12X10313 GE Dishwasher Hinge Arm Bearing819GASKET CONDUIT822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"831WD35X10360 GE Dishwasher Hinge Weld Service Kit Stainless Steel864WD12X10067 GE Dishwasher Flapper Vent905WD21X10518 GE Dishwasher Module Control Assembly Kit906WB02X10833 GE Oven Monogram Badge Small918WD21X10172 GE Dishwasher Vent Driver936MODEL SELECTOR PLUG ASM998LENS INDICATOR999WD35X10372 GE Dishwasher Bag and Bracket Assembly
