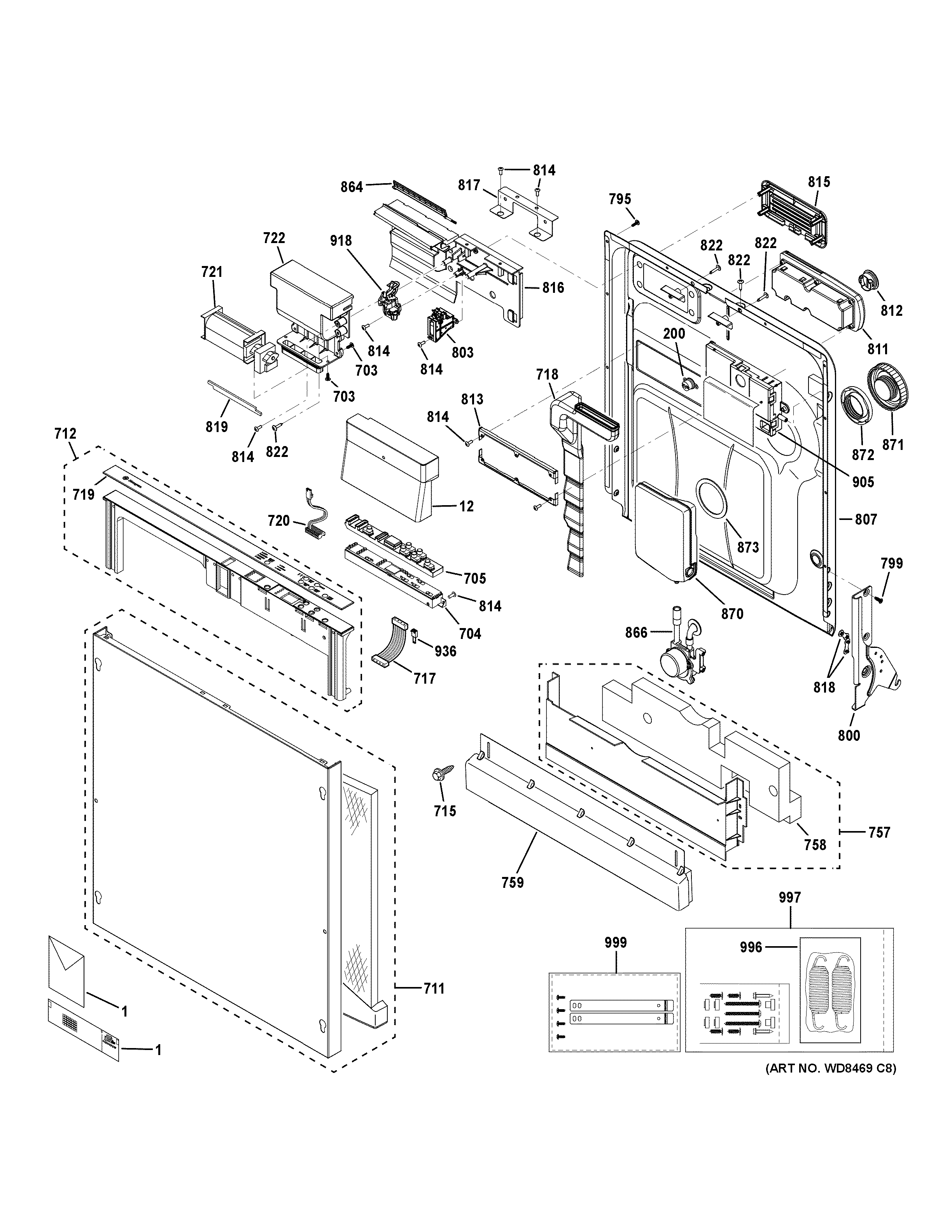

ZBD8900V00II ESCUTCHEON & DOOR ASSEMBLY

ZBD8900V00II ESCUTCHEON & DOOR ASSEMBLY

Written by

in

ZBD8900V00II ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM SHEET MINI MANUAL
1WD01X10295 GE Dishwasher Hardness Tester Strip
1PM MANUAL USE & CARE
1PM INSTALL INSTRUCTIONS
12BOARD CNTRL SHIELD
200WD01X10547 GE Dishwasher TCO Kit Assembly
703WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
704WD31X10132 GE Dishwasher Tactile Assembly Housing
705WD01X10619 GE Dishwasher Button Assembly
711PANEL ASM OUTER
715WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
717WD01X10557 GE Dishwasher HMI Harness Assembly
718GEN WD12X10190
719WD27X10382 GE Dishwasher Console and Cover Assembly
720WD01X10558 GE Dishwasher Harness Display Assembly
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
757WD27X10250 GE Dishwasher Toekick Assembly Kit
758WD01X10421 GE Dishwasher Foam Brace
759WD27X10206 GE Dishwasher Toekick Assembly
795SCR 8-18 AB OV .655
799SCR 10-24 TAP RNP 1/2
800GEN WD14X10021
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
803WD13X10031 GE Dishwasher Latch
807DOOR INNER & GASKET
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816WD12X10383 GE Dishwasher Vent Bracket Assembly
817WD01X10551 GE Dishwasher Latch Bracket
818WD12X10313 GE Dishwasher Hinge Arm Bearing
819GASKET CONDUIT
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
864WD12X10067 GE Dishwasher Flapper Vent
866WD12X10384 GE Dishwasher Detergent Dispensing Assembly
870WD35X10376 GE Detergent Bottle Assembly
871WD12X10282 GE Dishwasher Cap Assembly
872WD02X25438 GE Dishwasher Lock Nut Assembly
873GEN WD08X10060
905WD21X10518 GE Dishwasher Module Control Assembly Kit
918WD21X10172 GE Dishwasher Vent Driver
936WD21X10483 GE Model Selector Plug Assembly
996SPRING DOOR – HEAVY DUTY
997TRIM PANEL ACCESSARY KI
999WD35X10372 GE Dishwasher Bag and Bracket Assembly
