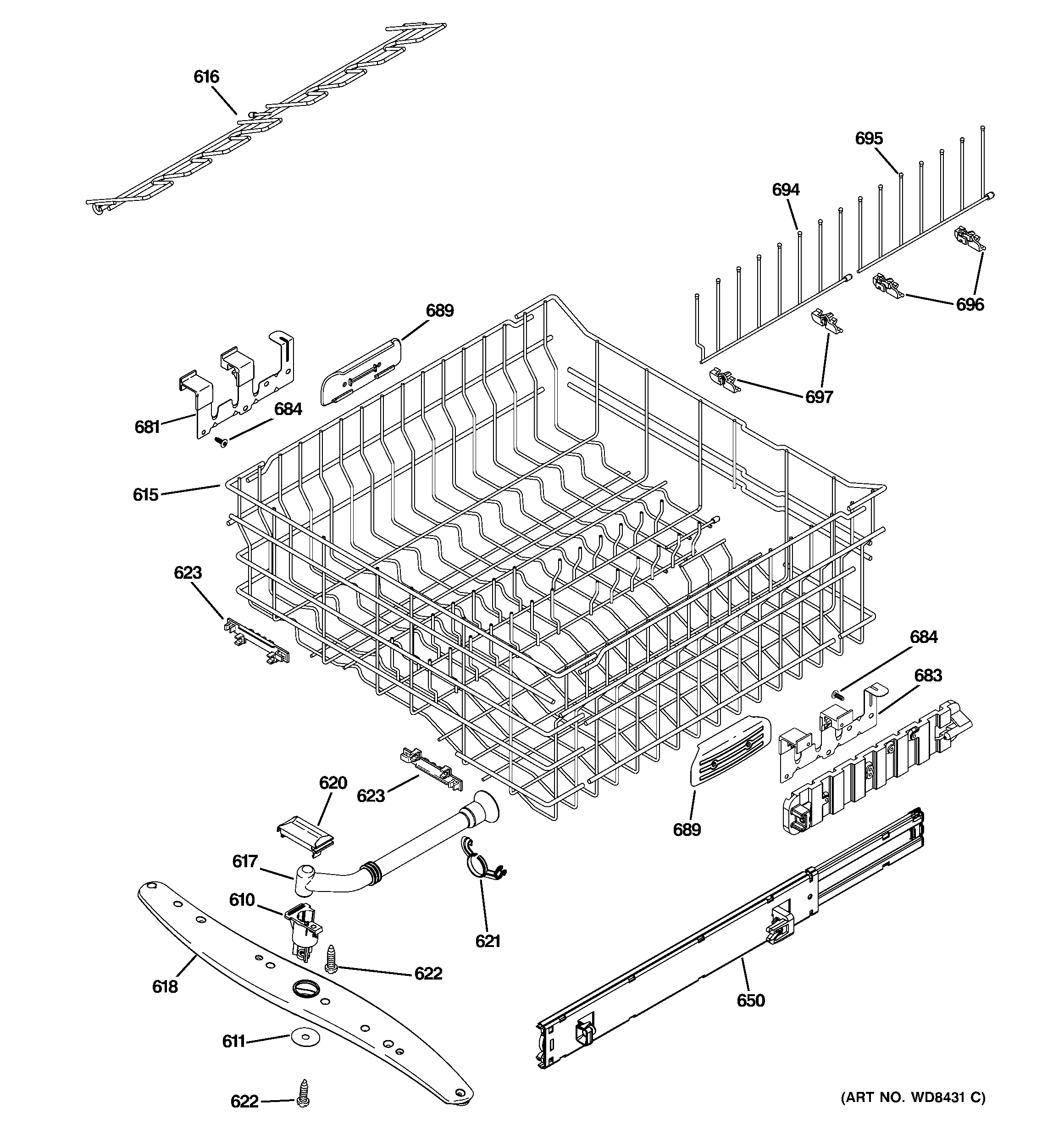

ZBD8920D00SS UPPER RACK ASSEMBLY

Products

Position	Product
610	HUB SPRAY ARM MID
611	WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
615	WD28X10413 GE Dishwasher Upper Rack Assembly with Spray Arm
616	WD28X10263 GE Dishwasher Full Length Shelf Cup
617	WD12X10145 GE Dishwasher Mid Spray Conduit
618	WD22X10066 GE Dishwasher Arm Spray Mid Assembly
621	WD12X10114 GE Dishwasher Conduit Carrier Mid
623	WD12X10137 GE Dishwasher Finger Indexer Right Hand
623	WD12X10120 GE Dishwasher Finger Indexer Left Hand
650	INNER RAIL UPR RACK ASM
681	WD01X10395 GE Dishwasher Left Hand Rack Lever Assembly
683	WD01X10396 GE Dishwasher Right Hand Rack Lever Assembly
684	WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
684	WD02X10111 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/2
689	WD01X10397 GE Dishwasher Touch Pad Stainless Steel
694	WD28X10422 GE Dishwasher Upper Rack Assembly
695	GEN WD28X10380
696	WD12X10116 GE Dishwasher Retainer Comb
697	WD12X10118 GE Dishwasher Retainer Comb
