ZDP304LP5SS GAS & BURNER PARTS

ZDP304LP5SS GAS & BURNER PARTS

Written by

in

ZDP304LP5SS GAS & BURNER PARTS

Products

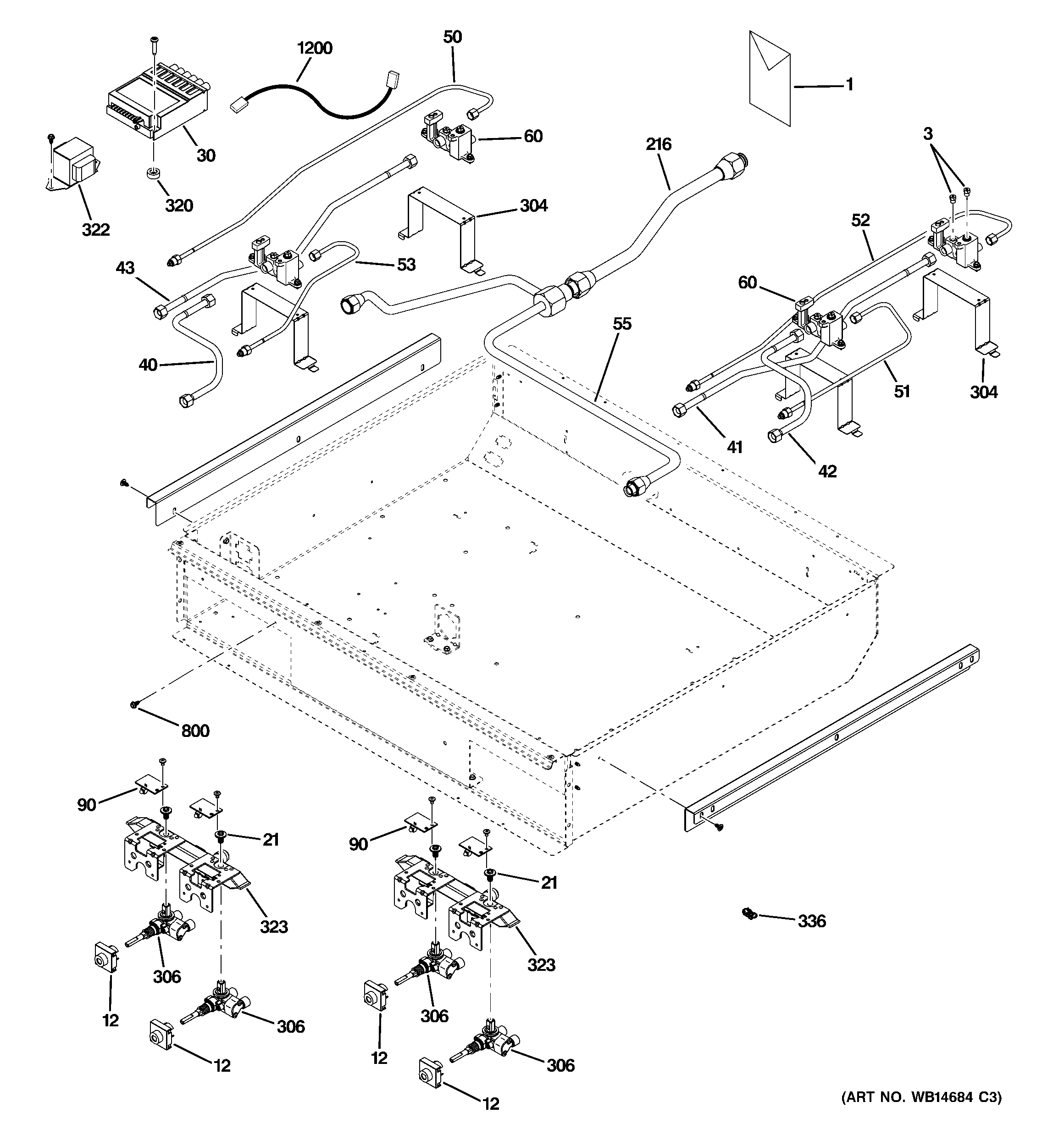

PositionProduct
1GEN 31-10689
1GEN 31-10693
1GEN 31-10694
1GEN 31-10695
1GEN 49-85117
1WB02K10359 GE Oven Mastic Tape 4 in x 2 in
1WB28K10540 GE LP Conversion Kit
1WB02T10303 GE Cleaner Lubricant
1WB02T10111 GE Cleaner Stainless Steel
1GEN 31-14935
3WB28T10158 GE Oven LP Main Orifice Spud
3WB28T10157 GE Oven High Alt Orifice Natural Gas Main
3WB28T10118 GE Oven LP Main Orifice Spud
3WB28T10159 GE Oven NG Simmer Orifice Spud
3WB28T10155 GE Oven NG Main Orifice Spud
3WB28T10117 GE Oven LP Main Orifice Spud
12WB18X31494 GE Burner Box Harness
21WB01K10067 GE Oven Screw 1/4" HD 20
30WB13X27483 GE Spark Module
40WB28K10492 GE Tube and Nut Assembly
41WB28K10493 GE Oven Tube and Nut Assembly
42WB28K10494 GE Oven Tube and Nut Assembly
43TUBE AND NUT ASM
50WB28K10496 GE Tube and Nut Assembly
51WB28K10497 GE Oven Tube and Nut Assembly
52WB28K10498 GE Oven Tube & Nut Assembly
53WB28K10499 GE Tube and Nut Assembly
55GEN WB28K10551
60WB28T10114 GE Oven Injector Burner 18K
90WB25K10012 GE Oven LED Assembly
216WB28K10537 GE Tube Regulator Assembly
304WB02K10192 GE Range Injection Bracket
306GEN WB21K10132
320WB1K10 GE Oven Grommet Handle
322WB27K10298 GE Oven Transformer
323WB28K10536 GE Appliance Manifold Pipe Assembly
336GEN WB02X7066
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
1200WB18K10052 GE Oven HV Harness
