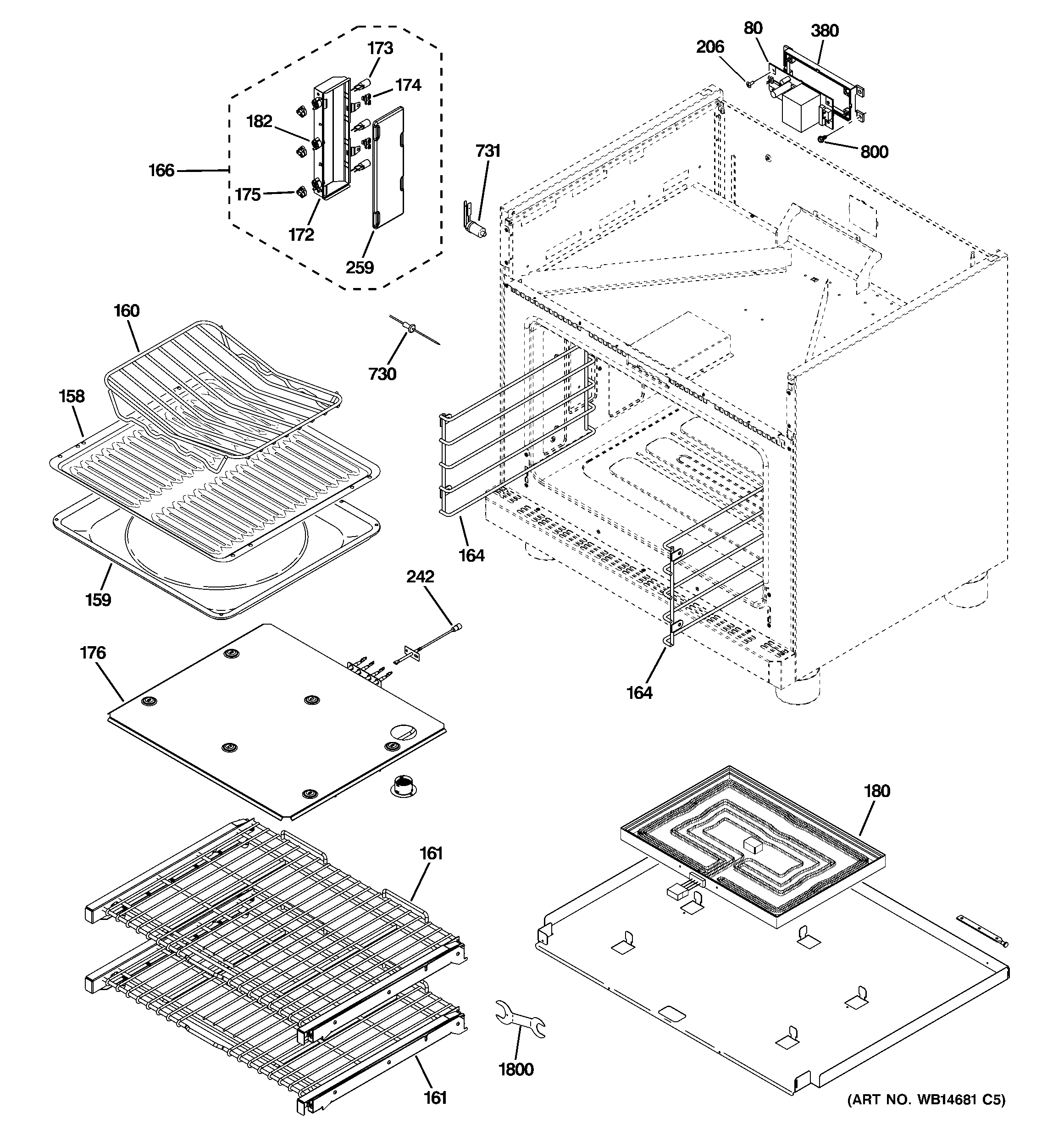

ZDP304LP5SS OVEN CAVITY PARTS

ZDP304LP5SS OVEN CAVITY PARTS

Written by

in

ZDP304LP5SS OVEN CAVITY PARTS

Products

PositionProduct
80WB25K10013 GE Oven LED Power Supply
158WB49K10017 GE Broiler Pan Rack
159WB49K10018 GE Broiler Pan
160WB48K10020 GE Oven Rack – Convection Roast
161GEN WB48K10030
164WB02K10196 GE Oven Guide Rack
166WB08K10011 GE Oven Halogen Lamp Assembly
172REFLECTOR LIGHT
173WB25T10064 GE Oven Halogen Lamp 20W
174WB02T10297 GE Glass Retainer Clip
175COVER BASE
176WB44K10027 GE Oven Broil Shield Assembly
180WB44K10026 GE Oven Hidden Bake Element
182BASE CERAMIC G6.35 450C
206WB01K10091 GE Oven Screw
242WB21X22134 GE Oven Sensor Assembly
259WB25T10063 GE Oven Crystal Lamp
380BRACKET POWER SUPPLY
730WB20K10030 GE Oven Probe Thermistor
731WB20K10032 GE Oven Probe Receptacle
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
1800WB63X39957 GE Service Leg Kit
