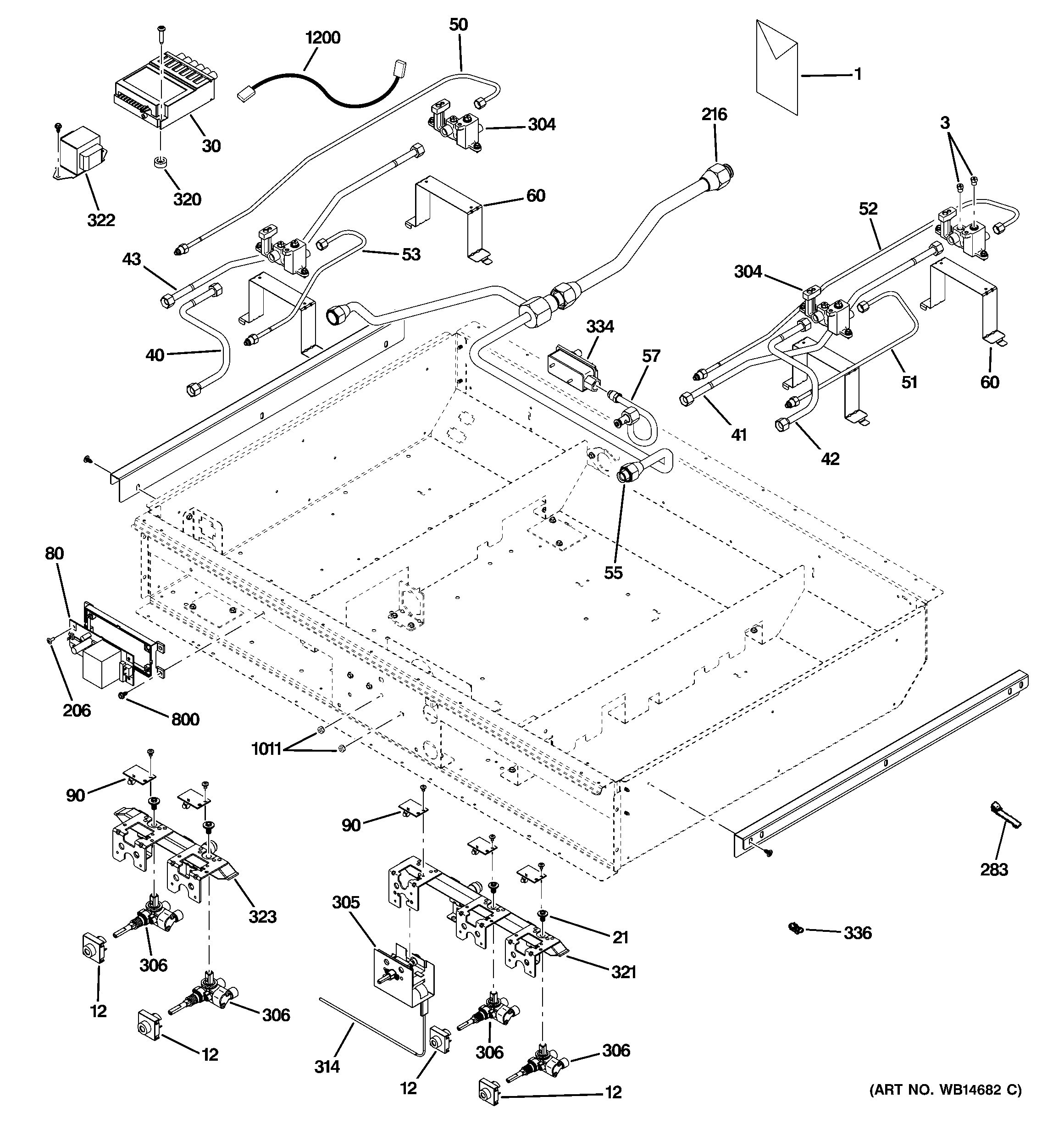

ZDP364NDP3SS GAS & BURNER PARTS

ZDP364NDP3SS GAS & BURNER PARTS

Written by

in

ZDP364NDP3SS GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-10695
1GEN 31-10694
1WB28K10538 GE Oven LP Conversion Kit
1GEN 49-85117
1GEN 31-10689
1GEN 31-14750
1WB02T10303 GE Cleaner Lubricant
1WB02T10111 GE Cleaner Stainless Steel
1CARRIER ORIFICE ASM
1GEN 31-10693
3WB28K10529 GE Oven Griddle Spud Orifice
3WB28T10155 GE Oven NG Main Orifice Spud
3WB28T10117 GE Oven LP Main Orifice Spud
3WB28T10118 GE Oven LP Main Orifice Spud
3WB28T10159 GE Oven NG Simmer Orifice Spud
3WB28K10531 GE Griddle Spud Orifice
12WB18X31497 GE Burner Box Harness
21WB01K10067 GE Oven Screw 1/4" HD 20
30WB13T10078 GE Oven Spark Module
40WB28K10492 GE Tube and Nut Assembly
41WB28K10493 GE Oven Tube and Nut Assembly
42WB28K10494 GE Oven Tube and Nut Assembly
43TUBE AND NUT ASM
50WB28K10496 GE Tube and Nut Assembly
51WB28K10497 GE Oven Tube and Nut Assembly
52WB28K10498 GE Oven Tube & Nut Assembly
53WB28K10499 GE Tube and Nut Assembly
55GEN WB28K10535
57WB28K10500 GE Griddle Tube and Nut Assembly
60WB28T10114 GE Oven Injector Burner 18K
80WB25K10013 GE Oven LED Power Supply
90WB25K10012 GE Oven LED Assembly
206WB01K10091 GE Oven Screw
216WB28K10537 GE Tube Regulator Assembly
283WB02X21679 GE Oven Wire Clip
283GEN WB02K0038
304WB02K10192 GE Range Injection Bracket
305WB24K10047 GE Oven Thermostat Switch
306VALVE DUAL
306GEN WB21K10132
314WB21K10124 GE Oven Thermostat
320WB1K10 GE Oven Grommet Handle
321WB28K10502 GE Pipe Assembly Manifold
322WB27K10298 GE Oven Transformer
323WB28K10536 GE Appliance Manifold Pipe Assembly
334WB19K10036 GE Oven Safety Valve
334WB19K10032 GE Oven Safety Valve
336GEN WB02X7066
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
1011WB01T10086 GE Keystone Nut 6-32
1200WB18K10050 GE Oven Harness
