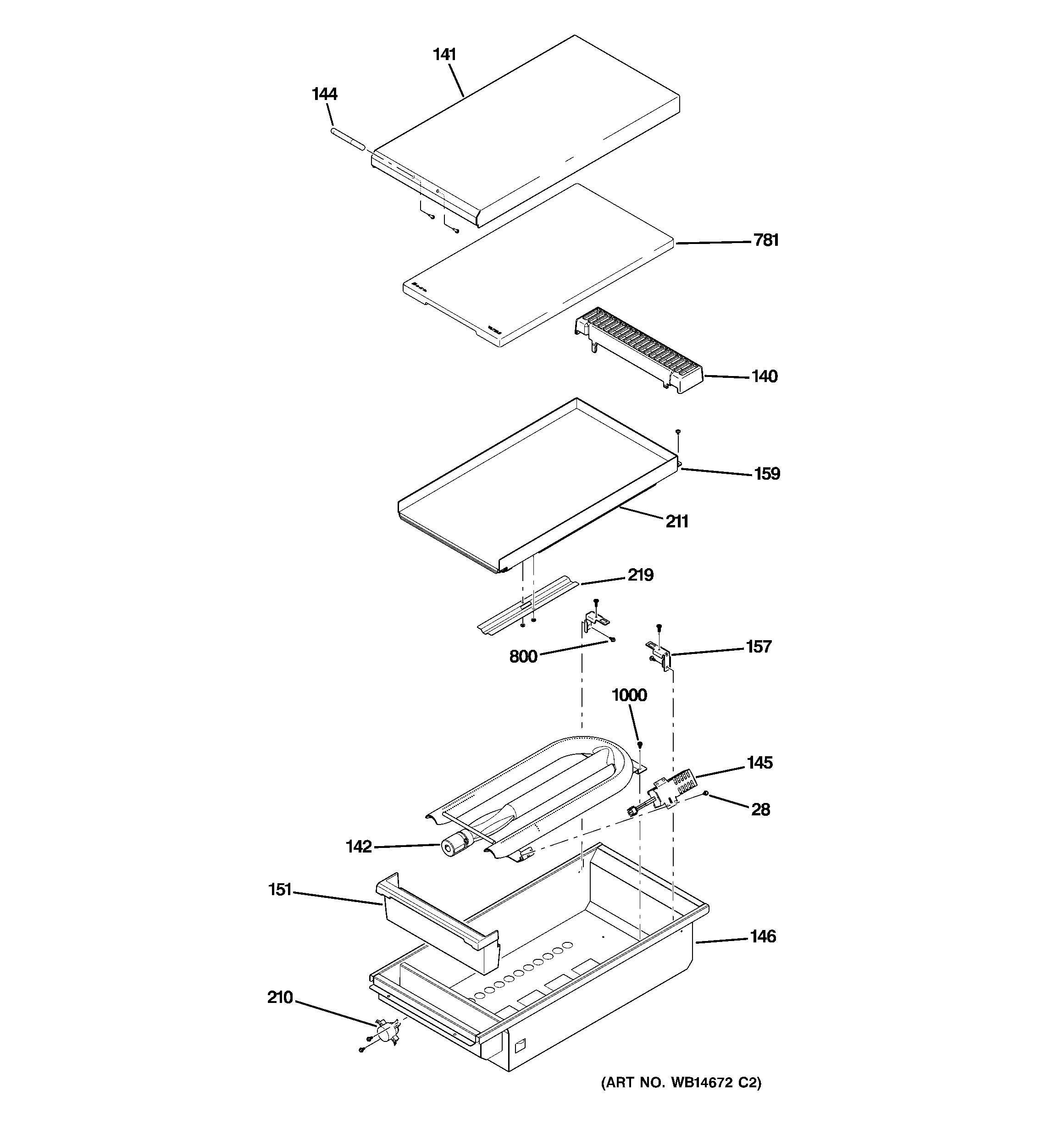

ZDP364NDP3SS GRIDDLE ASSEMBLY

ZDP364NDP3SS GRIDDLE ASSEMBLY

Written by

in

ZDP364NDP3SS GRIDDLE ASSEMBLY

Products

PositionProduct
28WB1X1293 GE Oven Screw
140WB07K10418 GE Oven Griddle Vent
141WB07K10351 GE Oven Griddle Cover
142WB28X33794 GE Burner Griddle
144WB15K10088 GE Range Handle Cover
145WB13X25261 GE Oven Igniter Glowbar
146GRIDDLE BODY WELD
151WB49K10038 GE Oven Grease Trough Assembly
157WB02K10208 GE Griddle Bracket
159WB32K10042 GE Oven Griddle Weld Plate Assembly
211WB02K10209 GE Support Bracket
211WB07K10295 GE Range Griddle Plate
219WB49K10015 GE Shield Bulb Thermostat
781WB31K10223 GE Oven Griddle Butcher Block
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
1000WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
