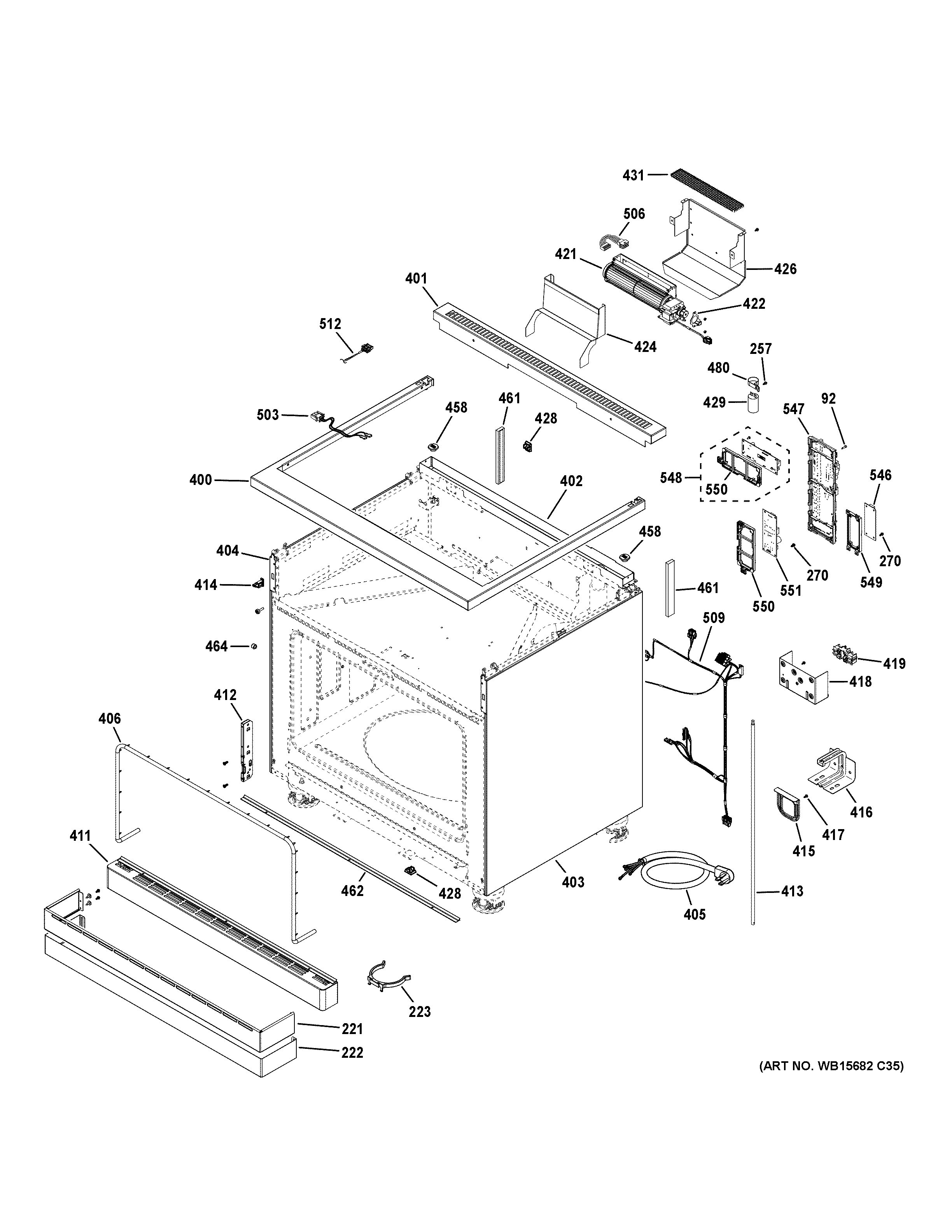

ZDP364NDT1SS BODY PARTS

ZDP364NDT1SS BODY PARTS

Written by

in

ZDP364NDT1SS BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
221WB07K10443 GE Toekick Top
222WB07K10444 GE Oven Bottom Toekick
223WB02K10225 GE Oven Toe Kick Clip
257SCR 8-18 AB IHW 3/8 SN
270WB01X24735 GE Oven CKT Screw
400WB07X39470 GE Stainless Steel Bullnose
401STAINLESS STELL TRIM VENT 36"
402DEFLECTOR SPILL
403STAINLESS STEEL PANEL SIDE RIG
404WB56X39521 GE Stainless Steel Side Panel
405WB18K10051 GE 240V Power Cord
406WB35X39589 GE Front Gasket Frame
411STAINLESS STEEL PANEL ACCES 36"
412WB10X39282 GE Receiver Hinge
413WB02X39924 GE Rod Extension
414PIN PILOT
415WB02K10224 GE Oven Anti-Tip Brace
416WB02K10237 GE Oven Anti-Tip Bracket
417WB1X536 GE Oven Screw
418BRACKET KNOCKOUT
419WB27X32415 GE Block Terminal Assembly
421WB26X39878 GE Gas Blower Tangential
422WB27X28659 GE Oven Sensor Board
424SHROUND FAN
426SHROUD FAN BACK
428BRACKET RJ45
429WB27T10662 GE Oven Capacitor
431SCREEN FAN
458PLUG SPILL GUARD
461SPACER
462STAINLESS STEEL BARRIER DOOR 36"
464WB02X28738 GE Oven Front Frame Bumper
480CLAMP CAPACITOR
503HARNESS TASK LIGHT
506WB18X39341 GE Board Sensing Harness
509HARNESS SERIAL RELAY
512HARNESS EXTENSION RJ45
546WB27X44406 GE Task Light Driver Assembly
547CONTROL RC17 MAIN DF ASM
548WB27X39966 GE Gas Controller Assembly
549BRACKET POWER SUPPLY
550RAME POWER CONTROL BOARD
551WB27X30386 GE Power Board
