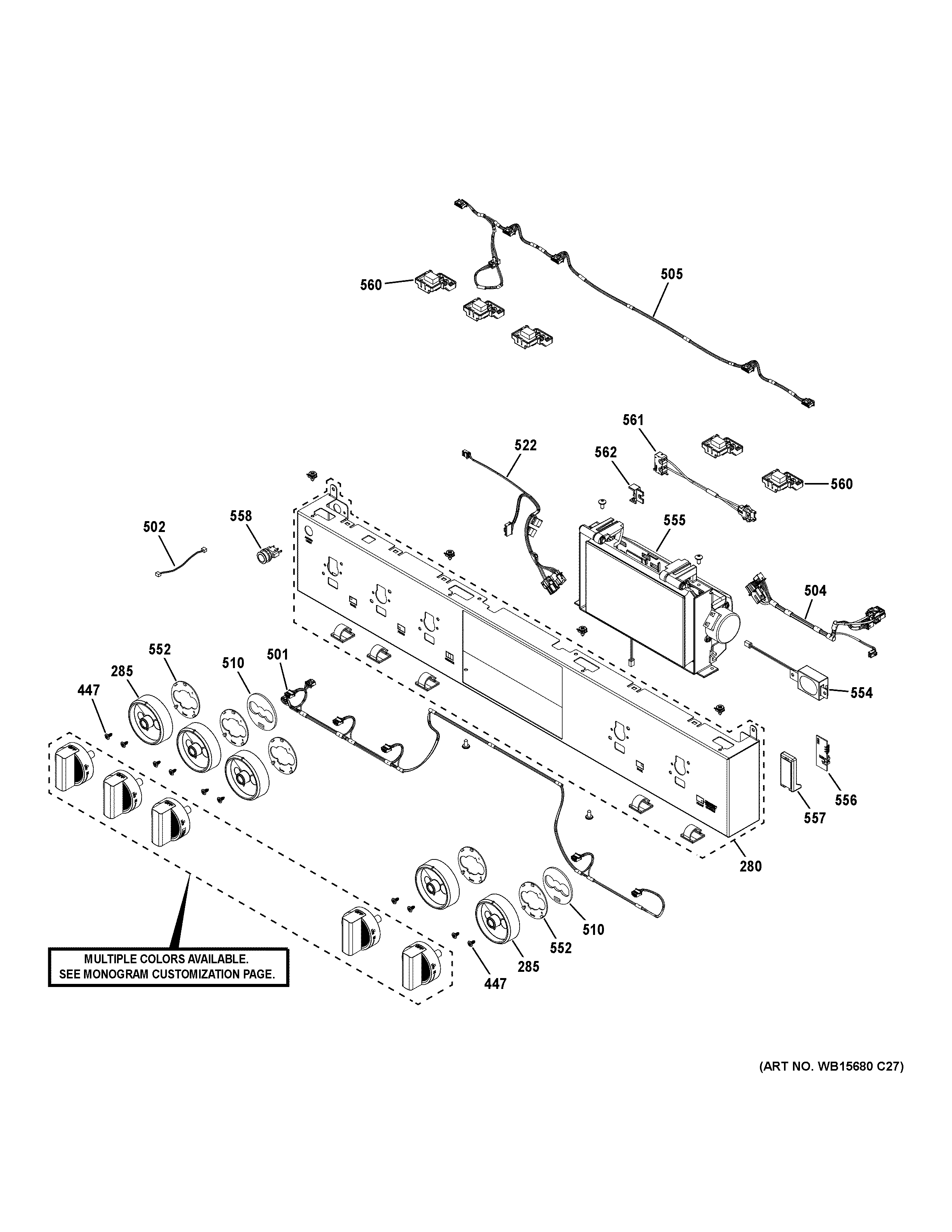

ZDP364NDT1SS CONTROL PANEL

ZDP364NDT1SS CONTROL PANEL

Written by

in

ZDP364NDT1SS CONTROL PANEL

Products

PositionProduct
280STAINLESS CONTROL PANEL 36"
285STAINLESS BEZEL
447WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
501HARNESS BEZEL
502WB18K10085 GE Harness
504WB18X39314 GE Serial UI Harness 36"
505HARNESS LIGHTING
510LED COVER BOARD
522WB18X39287 GE Display Harness
552WB24X42086 GE Backlight LED Assembly
554WB27X33354 GE Speaker 70C 3W
555WB27X39968 GE Articulating Display Mgm Df
556WB27X40327 GE Bluetooth Cat Module Assembly
557WB02X20265 GE Transceiver Housing
558WB24X39915 GE LED Switch Assembly
560WB24X41110 GE LED Assembly Board
561HARNESS SWITCH PADDLE
562HOLDER SWITCH
