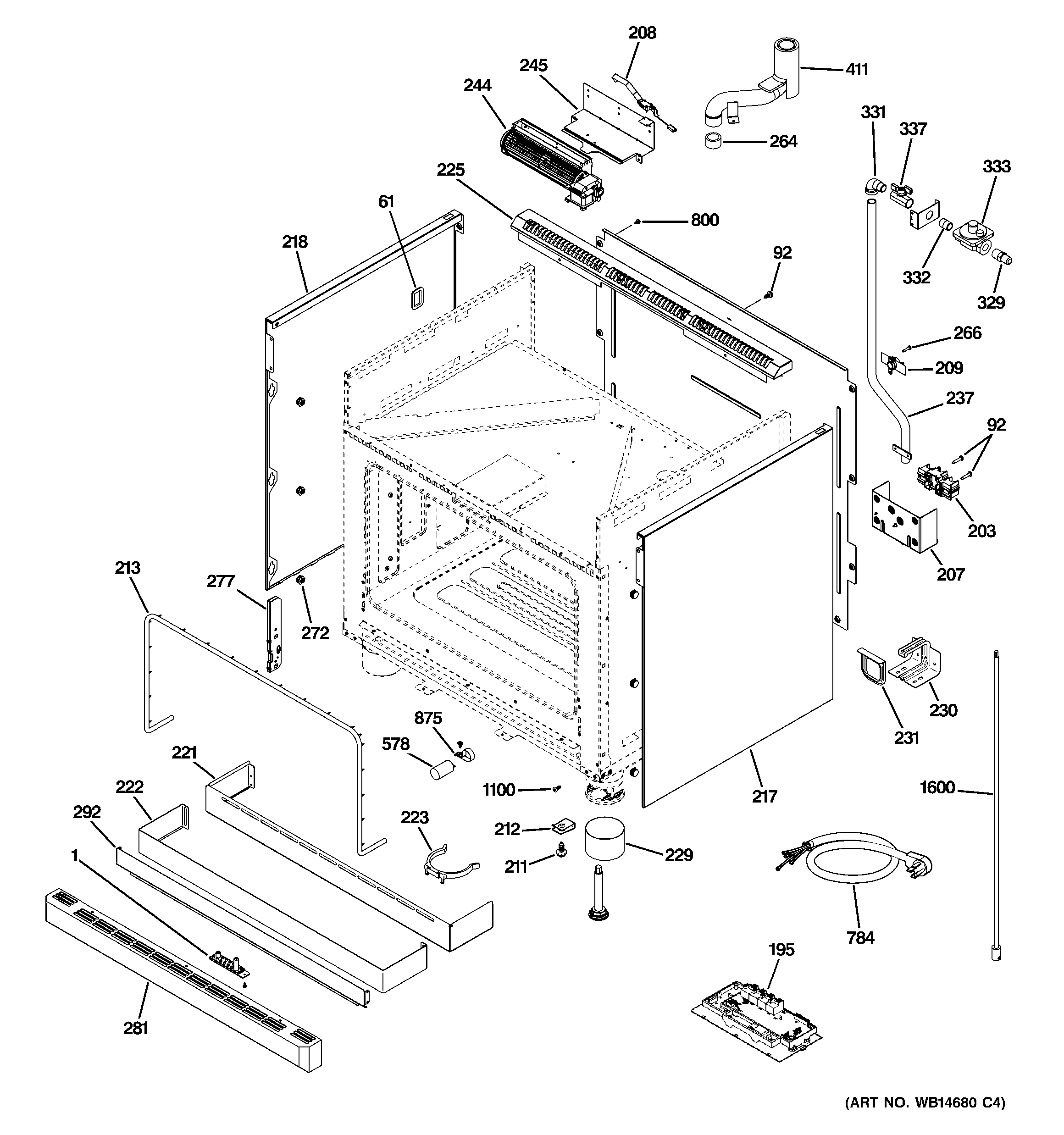

ZDP366LP2SS BODY PARTS

ZDP366LP2SS BODY PARTS

Written by

in

ZDP366LP2SS BODY PARTS

Products

PositionProduct
1WB02T10303 GE Cleaner Lubricant
1GEN 31-10694
1CARRIER ORIFICE ASM
1WB28K10538 GE Oven LP Conversion Kit
1GEN 31-10689
1WB02T10111 GE Cleaner Stainless Steel
1GEN 31-10693
1GEN 31-14750
1GEN 49-85117
1GEN 31-10695
61BUSHING WIRE
92WB1X1261 GE Oven Screw
195WB19K10061 GE Oven Relay Board Assembly
203WB17T10011 GE Oven Terminal Block
207BRACKET KNOCKOUT
208WB21K10130 GE Oven Switch Assembly Sail
209WB21K10127 GE Oven High Limit Switch
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB02K10195 GE Oven Gasket Frame Front
217GEN WB63K10197
218GEN WB63K10198
221GEN WB07K10315
222WB07K10382 GE Bottom Toe Kick
223WB02K10225 GE Oven Toe Kick Clip
225WB07K10357 GE Vent Trim Assembly
229WB02K10193 GE Oven Leg Assembly
230WB02K10237 GE Oven Anti-Tip Bracket
231WB02K10224 GE Oven Anti-Tip Brace
231BRACKET ASM ANTI-TIP
237GEN WB28K10542
244WB26K10010 GE Oven Tangential Blower 45MM
245WB02K10229 GE Fan Bracket
264WB35K10028 GE Oven Catalyst Support
266GEN WZ05X0124
272WB02T10034 GE Oven Body Side Support
277GEN WB10T10083
281WB07K10355 GE Access Panel
292WB07K10317 GE Access Panel Back
329WB02K10234 GE Flare Elbow Adapter
331WB02K10226 GE Elbow Street
332WB02K10227 GE Range Oven Nipple
333WB21K10133 GE Oven Regulator
333WB21K10129 GE Oven Regulator
337WB19K10038 GE Oven Shut Off Valve
411WB38K10020 GE Vent Extension
578WB27T10662 GE Oven Capacitor
784WB18K10014 GE Oven Line Cord Kit
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
875WB02T10194 GE Capacitor Bracket
1100WR01X10590 GE Refrigerator Screw 10-16 Ab Pnt20 1/2 S
1600WB02K10259 GE Extension Rod
