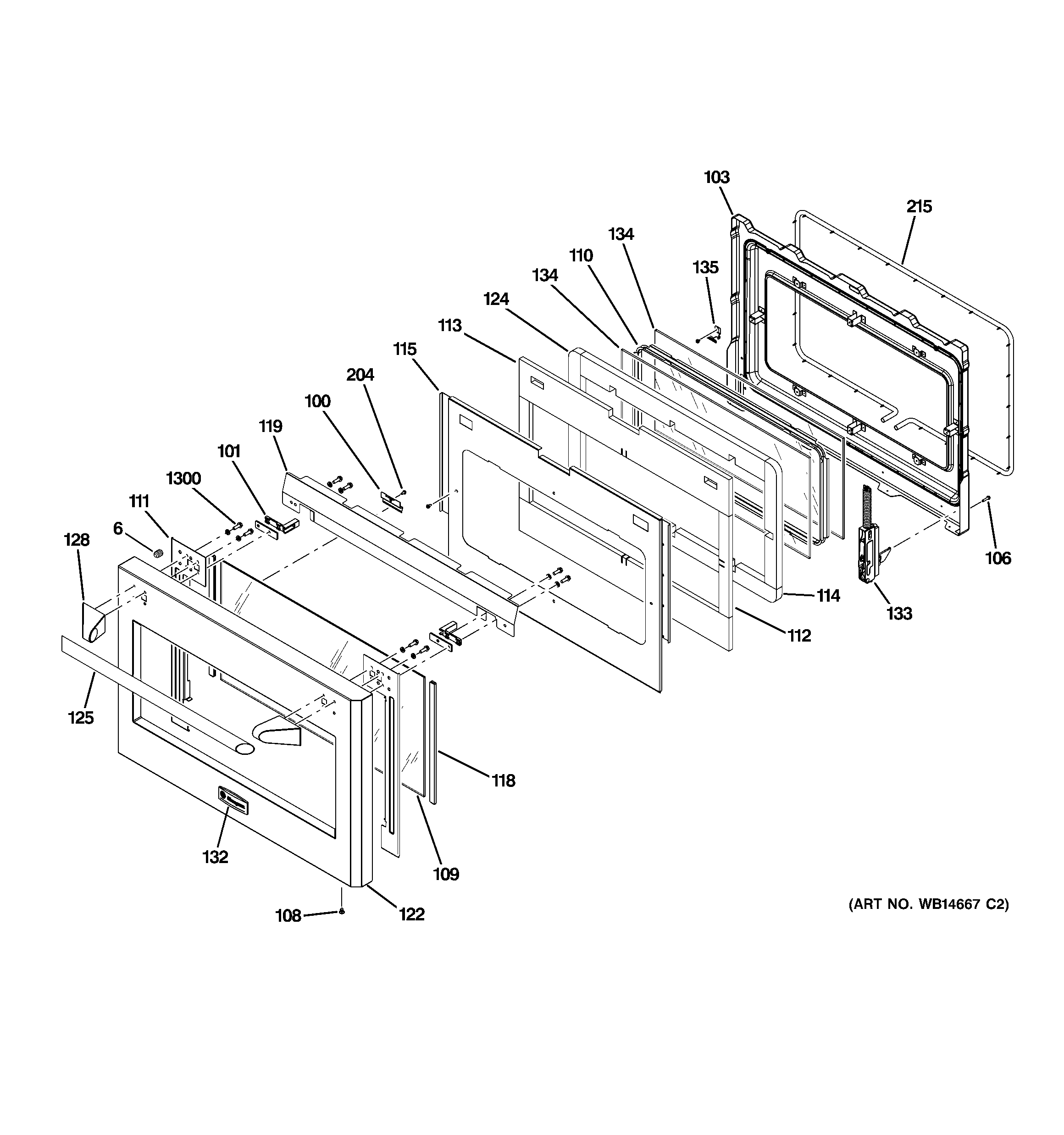

ZDP366LP2SS DOOR ASSEMBLY

Products

Position	Product
6	WR02X11754 GE Refrigerator Screw Set
100	WB02K10218 GE Range Bracket Glass
101	WB02K10219 GE Range Extension Endcap
103	WB55K10062 GE Oven Door Liner Assembly
106	WB01K10089 GE Screw 10-32 Tr T 7/8 S
108	WB1X5364 GE Oven Mounting Screw
109	WB57K10135 GE Oven 27-inch Glass Door
110	WB34K10109 GE Window Spacer
111	SUPPORT OUTER GLASS RT
111	SUPPORT OUTER GLASS LF
112	FT INSUL DOOR SIDE
113	FT INSUL DOOR BTM 27"
113	FT INSUL DOOR TOP 27"
114	RR INSUL DOOR TOP 27"
114	WB35K10134 GE Door Bottom Insulation 27"
115	GUARD INSULATION
118	WB04K10028 GE Door Pad
119	HEAT DEFLECTOR
122	WB56K10077 GE Door Panel Assembly 36"
124	RR INSUL DOOR SIDE
125	GEN WB15K10091
128	WR02X12344 GE Refrigerator Endcap
132	WB02K10295 GE Oven Monogram Badge
133	WB10K10017 GE Oven Right Door Hinge
133	WB10K10018 GE Oven Left Door Hinge
134	WB57K10138 GE Oven Door Glass
135	CLIP WINDOW
204	WB1K5062 GE Oven Screw
215	WB02K10221 GE Oven Gasket 27"
1300	WB01K10088 GE Screw 1/4-20 Tt Hxws 3/4"
