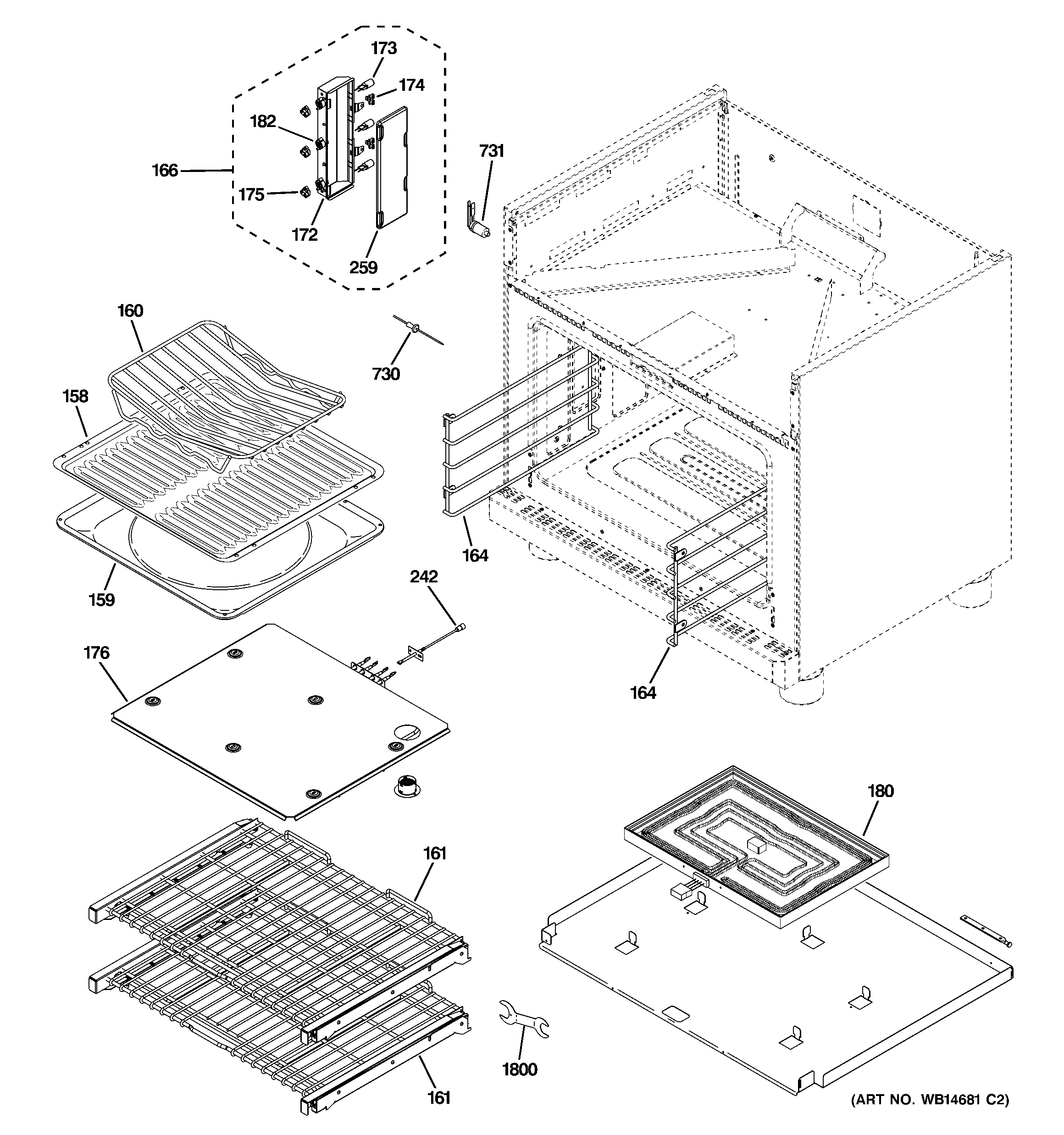

ZDP366LP2SS OVEN CAVITY PARTS

ZDP366LP2SS OVEN CAVITY PARTS

Written by

in

ZDP366LP2SS OVEN CAVITY PARTS

Products

PositionProduct
158WB49K10017 GE Broiler Pan Rack
159WB49K10018 GE Broiler Pan
160WB48K10020 GE Oven Rack – Convection Roast
161WB48X33814 GE Oven Rack and Guide Assembly
164WB02K10196 GE Oven Guide Rack
166WB08K10011 GE Oven Halogen Lamp Assembly
172REFLECTOR LIGHT
173WB25T10064 GE Oven Halogen Lamp 20W
174WB02T10297 GE Glass Retainer Clip
175COVER BASE
176SHIELD BROIL ASM
180WB44K10026 GE Oven Hidden Bake Element
182BASE CERAMIC G6.35 450C
242WB21X22134 GE Oven Sensor Assembly
259WB25T10063 GE Oven Crystal Lamp
730WB20K10030 GE Oven Probe Thermistor
731WB20K10032 GE Oven Probe Receptacle
1800WB63X39957 GE Service Leg Kit
