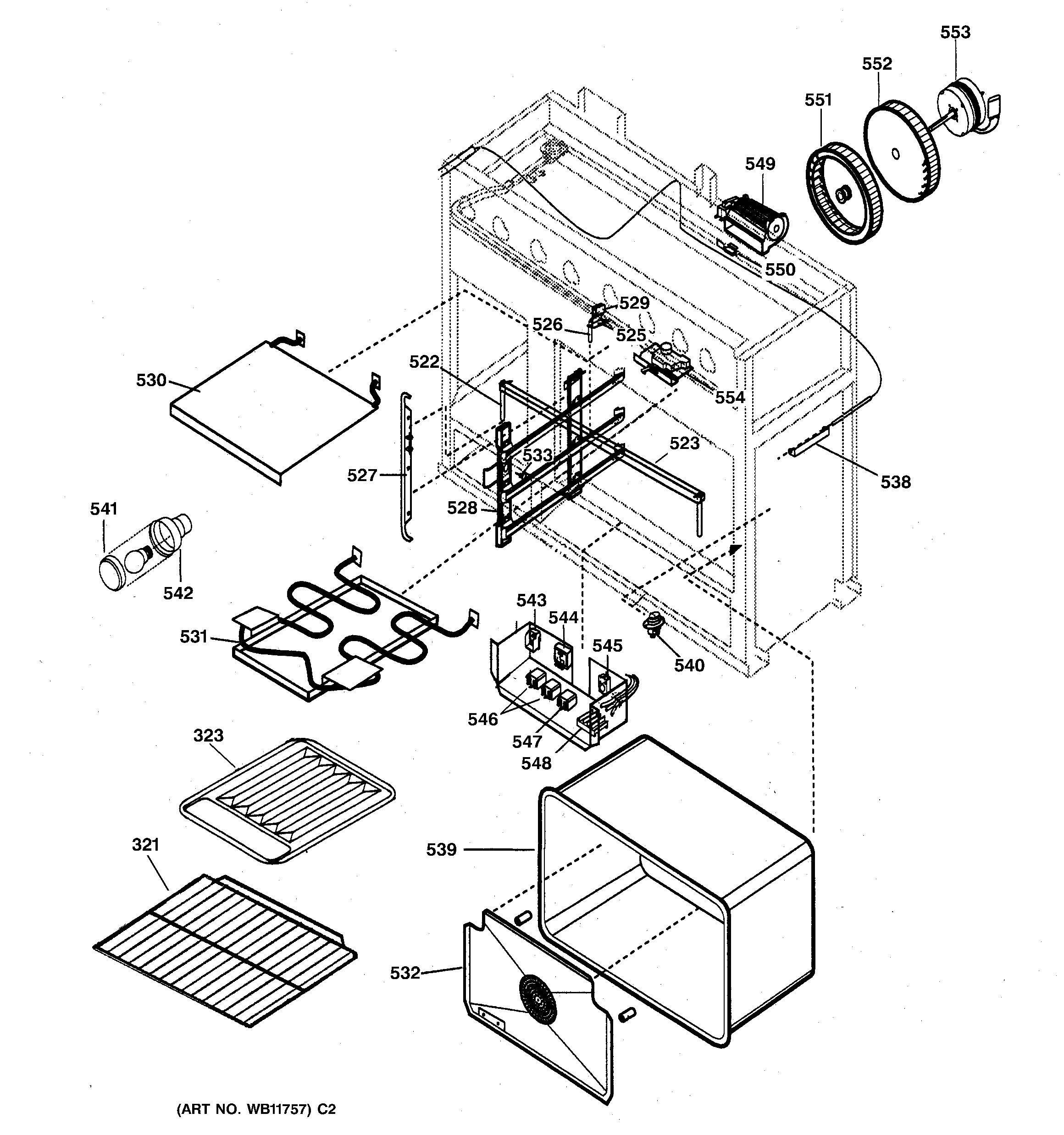

ZDP36L4RD1SS OVEN ASSEMBLY

ZDP36L4RD1SS OVEN ASSEMBLY

Written by

in

ZDP36L4RD1SS OVEN ASSEMBLY

Products

Position	Product
321	GEN WB48X5114
323	GEN WB49X5596
522	GEN WB02X10525
523	GEN WB02X10671
525	GEN WB02X8617
526	PUSH ROD INTERLOCK
527	GEN WB02X8621
527	GEN WB02X8620
528	GEN WB36X5802
528	GEN WB36X5803
529	MICROSWITCH INTERLOCK
530	BROIL ELEMENT 27"
531	BAKE ELEMENT& SUPT 27"
532	GEN WB02X8624
533	THUMB SCREW-RACK SUPPORT
538	GEN WB02X8625
539	GEN WB53X5166
540	GEN WB21X5359
541	GEN WB02X8626
542	GEN WB08X5125
543	50% PULSER – TIMER
544	27" OVEN TIMER-CLEAN
545	GEN WB21X5362
546	GEN WB21X5363
547	GEN WB21X5364
548	GEN WB17X5134
549	MOTOR BLOWER ASM
550	GEN WB02X8627
551	WHEEL BLOWER CONVECT.
552	WHEEL COOLING RCVR
553	MOTOR CONVECTION
554	WB10X5238 GE Oven Door Lock
