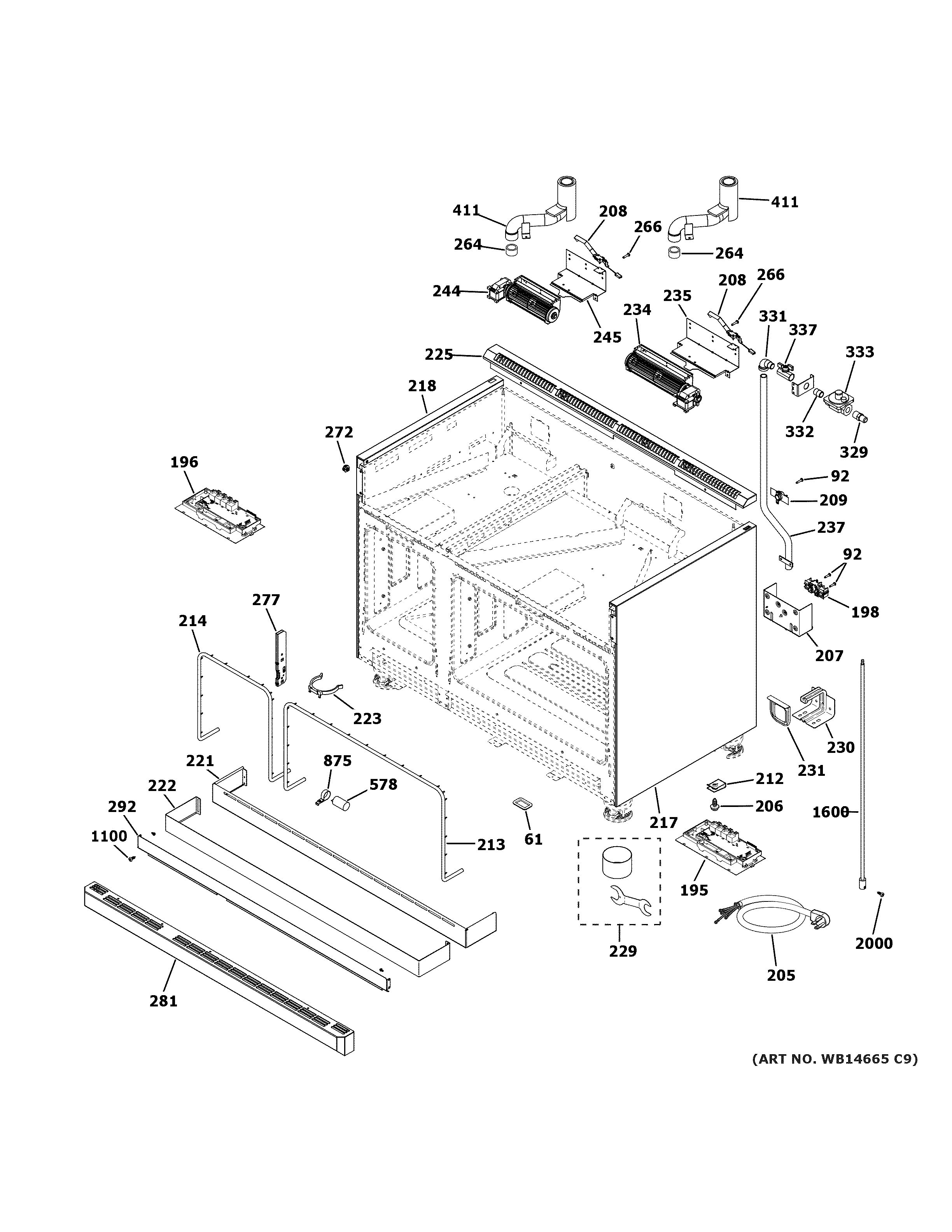

ZDP484NGN1SS BODY PARTS

ZDP484NGN1SS BODY PARTS

Written by

in

ZDP484NGN1SS BODY PARTS

Products

PositionProduct
61BUSHING WIRE
92WB1X1261 GE Oven Screw
195WB19K10061 GE Oven Relay Board Assembly
196WB19K10060 GE Oven Left Relay Board Assembly
198WB17T10011 GE Oven Terminal Block
205WB18K10051 GE 240V Power Cord
206WB1K5 GE Oven Screw 8-18 X B97
207WB18K10049 GE Assembly Terminal Block
207BRACKET KNOCKOUT
208WB21K10130 GE Oven Switch Assembly Sail
209WB21K10127 GE Oven High Limit Switch
212WB1K2 GE Oven Speednut
213WB02K10195 GE Oven Gasket Frame Front
214WB02K10194 GE Frame Gasket
217WB63K10265 GE Oven Side Panel
218WB63K10266 GE Oven Side Panel
221WB07K10448 GE Oven Toekick Top
222WB07K10449 GE Oven Toe Kick Bottom
223WB02K10225 GE Oven Toe Kick Clip
225WB07K10450 GE Oven Trim Vent Assembly
229WB63X39957 GE Service Leg Kit
230WB02K10237 GE Oven Anti-Tip Bracket
231WB02K10224 GE Oven Anti-Tip Brace
234WB26K10010 GE Oven Tangential Blower 45MM
235WB02K10230 GE Fan Bracket
237WB28K10506 GE Oven Pipe Supply Assembly
244WB26K10009 GE Oven Blower Tangential 45MM
245WB02K10229 GE Fan Bracket
264WB35K10028 GE Oven Catalyst Support
266GEN WZ05X0124
272WB02T10034 GE Oven Body Side Support
277GEN WB10T10083
281WB07K10447 GE Access Panel
292PANEL ACCESS BACK
329WB02K10228 GE Flare Fitting Adapter
331WB02K10226 GE Elbow Street
332WB02K10227 GE Range Oven Nipple
333WB21K10129 GE Oven Regulator
337WB19K10038 GE Oven Shut Off Valve
411WB38K10020 GE Vent Extension
578WB27T10662 GE Oven Capacitor
875WB02T10194 GE Capacitor Bracket
1100WR01X10590 GE Refrigerator Screw 10-16 Ab Pnt20 1/2 S
1600WB02K10392 GE Oven Rod Extension
2000WB01K10100 GE Screw 10-32 TRP 1/2"
