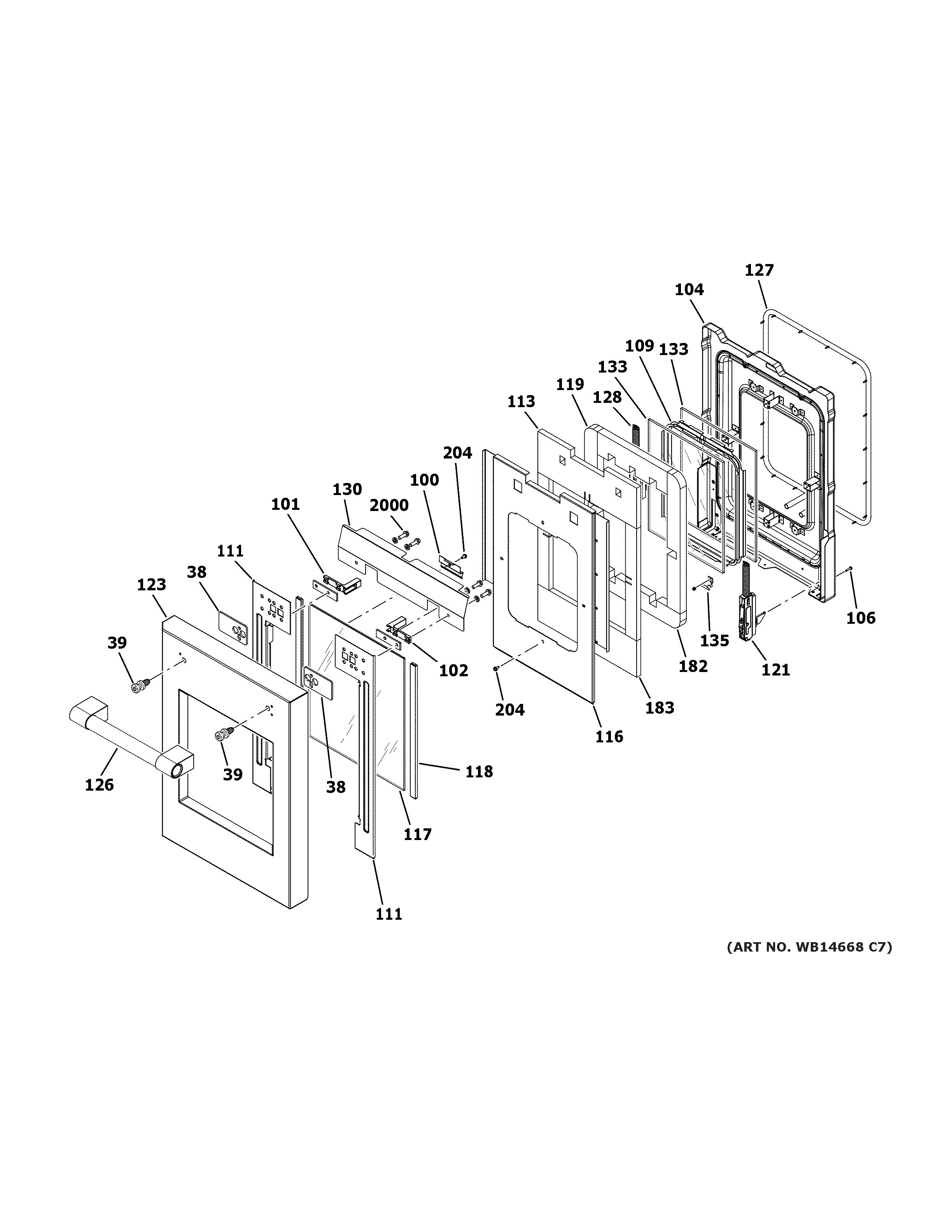

ZDP484NGN1SS SMALL DOOR ASSEMBLY

Products

Position	Product
38	PAD END CAP
39	WR01X11007 GE Refrigerator Fastener Door Handle
100	WB02K10218 GE Range Bracket Glass
101	WB34X31807 GE Left Handle Bracket
102	WB34X31805 GE Right Handle Bracket
104	WB55K10060 GE Oven Door Liner Assembly
106	WB01K10089 GE Screw 10-32 Tr T 7/8 S
109	SPACER WINDOW
111	SUPPORT OUTER GLASS LEFT
111	SUPPORT OUTER GLASS RIGHT
113	FT INSUL DOOR TOP 12"
116	GUARD INSULATION
117	GLASS DOOR 12"
118	WB04K10028 GE Door Pad
119	RR INSUL DOOR TOP 12"
121	WB10K10013 GE Oven Right Door Hinge
123	WB56X37488 GE Oven Stainless Steel Door Panel
126	12 HANDLE AND END CAP
127	WB02K10220 GE Range Door Gasket
128	WB10K10014 GE Oven Left Door Hinge
130	HEAT DEFLECTOR 12"
133	WB57K10137 GE Glass Door Assembly
135	CLIP WINDOW
182	RR INSUL DOOR BTM 12"
183	FT INSUL DOOR BTM 12"
204	WB1K5062 GE Oven Screw
2000	WB01K10100 GE Screw 10-32 TRP 1/2"
