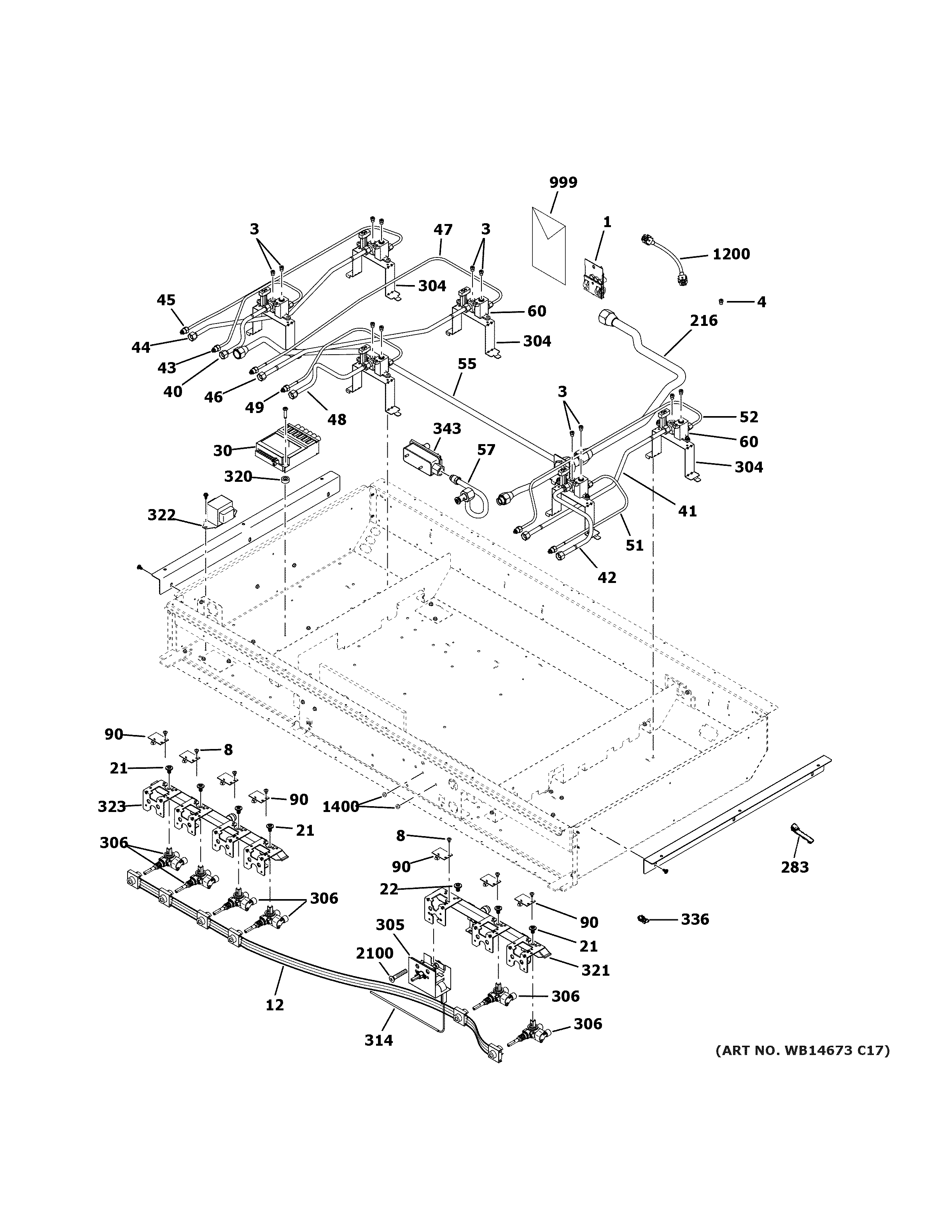

ZDP486NDN1SS GAS & BURNER PARTS

ZDP486NDN1SS GAS & BURNER PARTS

Written by

in

ZDP486NDN1SS GAS & BURNER PARTS

Products

PositionProduct
1WB28K10538 GE Oven LP Conversion Kit
1HI ALTITUDE ORIFICE KIT
3WB28T10117 GE Oven LP Main Orifice Spud
3WB28T10155 GE Oven NG Main Orifice Spud
3WB28T10159 GE Oven NG Simmer Orifice Spud
3WB28T10118 GE Oven LP Main Orifice Spud
4WB28K10531 GE Griddle Spud Orifice
4WB28K10529 GE Oven Griddle Spud Orifice
8WB01K10002 GE Oven Screw 8-32
12WB18X31498 GE Burner Box Harness
21WB01K10067 GE Oven Screw 1/4" HD 20
22WB01K10109 GE Screw 8 Head 1/4-20
30MODULE SPARK
40WB28K10518 GE Tube and Nut Assembly
41WB28K10493 GE Oven Tube and Nut Assembly
42WB28K10494 GE Oven Tube and Nut Assembly
43WB28K10522 GE Tube and Nut Assembly
44WB28K10517 GE Tube and Nut Assembly
45WB28K10521 GE Tube and Nut Assembly
46WB28K10519 GE Tube and Nut Assembly
47TUBE AND NUT ASM
48TUBE AND NUT ASM
49WB28K10523 GE Tube and Nut Assembly
51WB28K10497 GE Oven Tube and Nut Assembly
52WB28K10498 GE Oven Tube & Nut Assembly
55TEE SWAGED ASM
57WB28K10500 GE Griddle Tube and Nut Assembly
60WB28T10114 GE Oven Injector Burner 18K
90WB25K10012 GE Oven LED Assembly
216WB28K10665 GE Oven Cooktop Supply Tube Assembly
283GEN WB02K0038
304WB02K10192 GE Range Injection Bracket
305WB24K10047 GE Oven Thermostat Switch
306VALVE DUAL
314WB21K10124 GE Oven Thermostat
320WB1K10 GE Oven Grommet Handle
321WB28K10502 GE Pipe Assembly Manifold
322WB27K10298 GE Oven Transformer
323WB28K10526 GE Left Pipe Manifold Assembly
336GEN WB02X7066
343WB19K10032 GE Oven Safety Valve
999PM MANUAL MINI & WD ASM
999PM INSTALL INSTRUCTIONS
999WB02T10303 GE Cleaner Lubricant
999PM INSTALL ANTI-TIP BRKT
999PM CONVERSION STEPS
999PM OWNERS MANUAL
1200WB18K10047 GE Oven HV Harness
1400WB01T10086 GE Keystone Nut 6-32
2100WB01K10101 GE Screw 8-32 Captive Trap 7/8" Nickel
