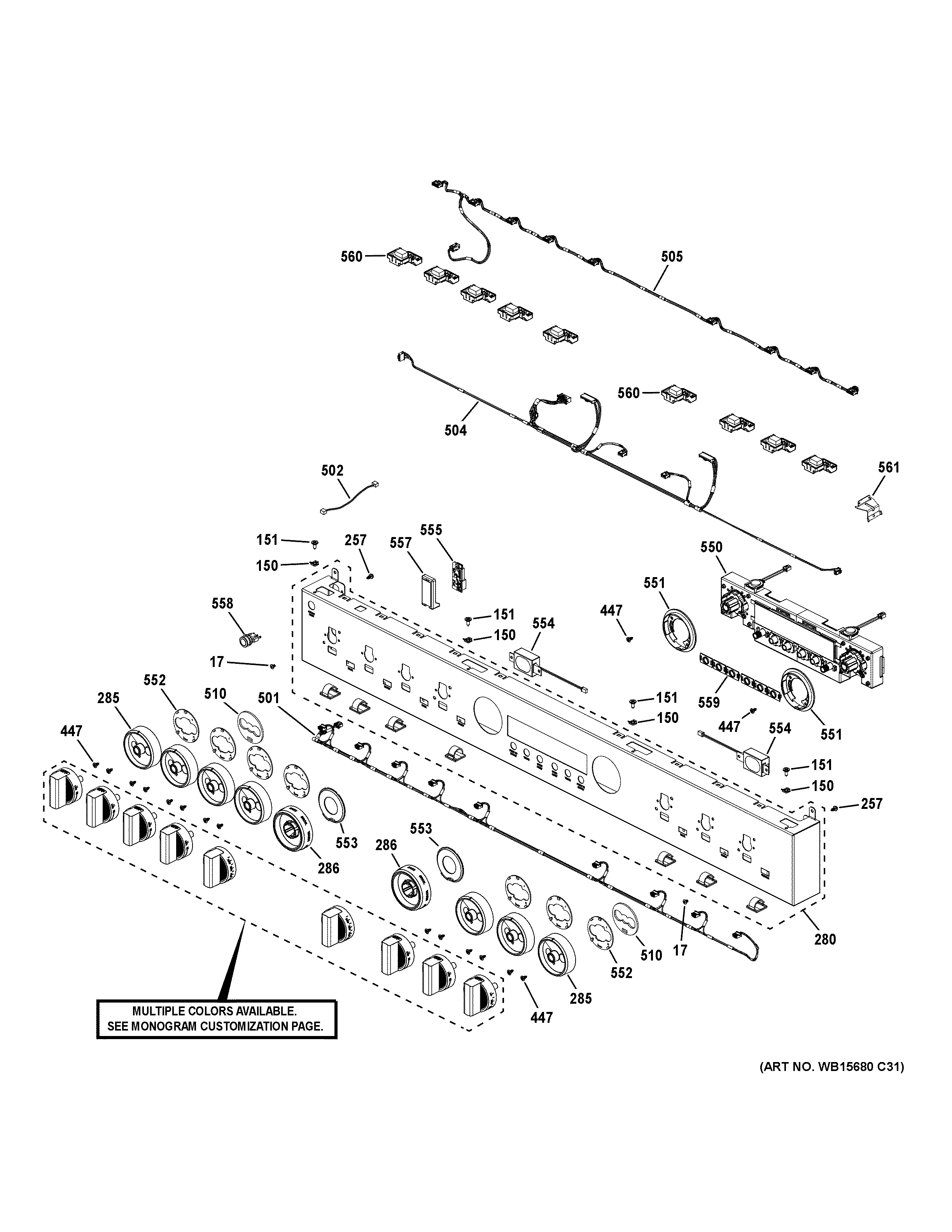

ZDP486NDT2SS CONTROL PANEL

ZDP486NDT2SS CONTROL PANEL

Written by

in

ZDP486NDT2SS CONTROL PANEL

Products

PositionProduct
17WB01K10002 GE Oven Screw 8-32
150SPRING WASHER
151WB01T10009 GE Screw 10-16 Shoulder Type A
257WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
280WB36X39805 GE Stainless Steel Control Panel 48"
285STAINLESS BEZEL
286STAINLESS DUAL FUEL OVEN BEZEL
447WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
447NUT RECEPTACL HEX 1/4-32
501WB18X39358 GE Bezel Harness
502WB18K10085 GE Harness
504HARNESS SERIAL UI
505WB18X39313 GE Lighting Harness
510LED COVER BOARD
550WB27X39637 GE Encoder Magnet
551WB03X41108 GE Control Knob Bezel
552WB24X42086 GE Backlight LED Assembly
553LED BOARD COVER
554WB27X33354 GE Speaker 70C 3W
555GEA3 WIFI/BLE BOARD W/INSTRUCT
557WB02X20265 GE Transceiver Housing
558WB24X39915 GE LED Switch Assembly
559WB03X41107 GE Display Button Bezel
560WB24X41110 GE LED Assembly Board
561BRACKET CONTROL
