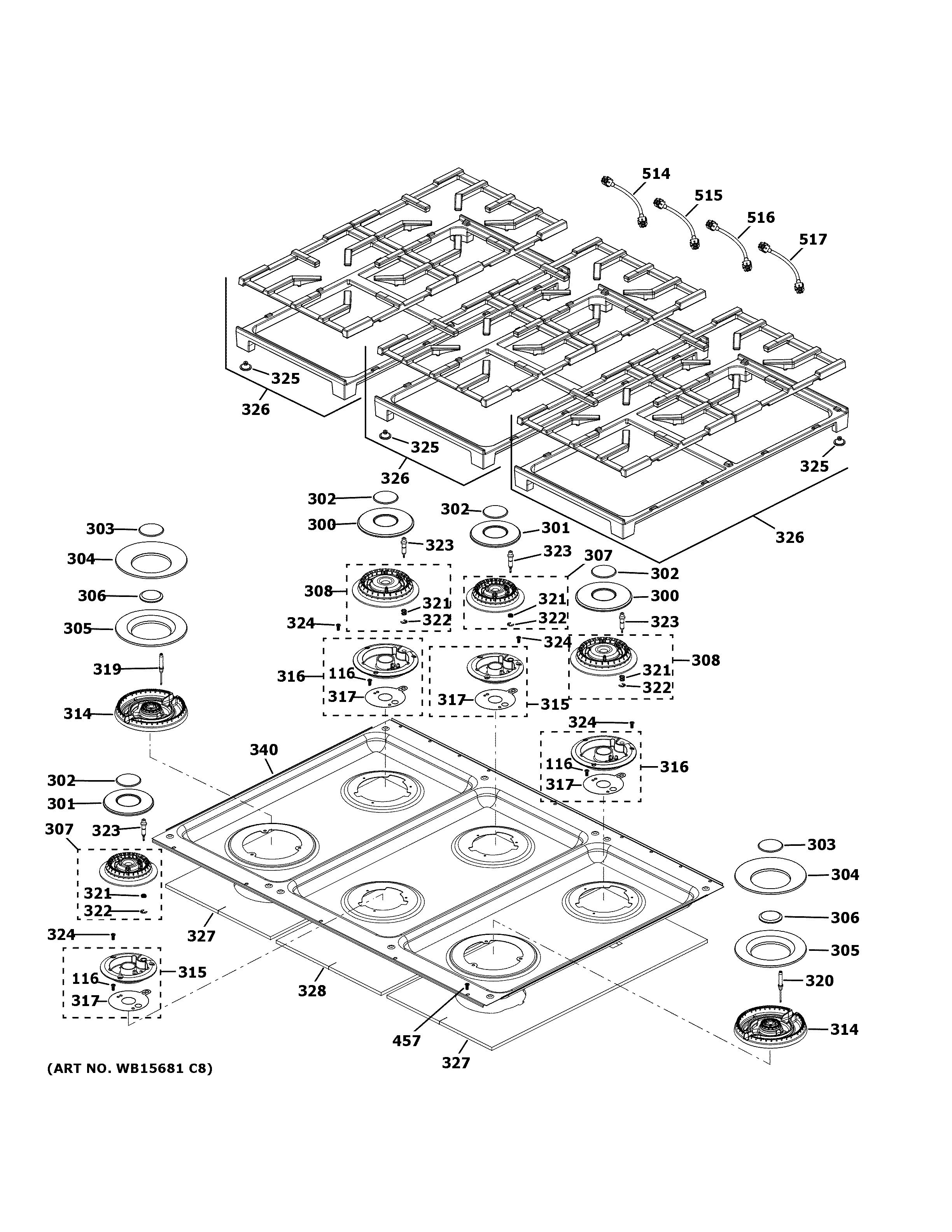

ZDP486NDT2SS COOKTOP

Products

Position	Product
116	WB1K84 GE Oven Screw and
300	WB29X43469 GE Burner Cap 18K
301	WB29X30381 GE Burner Cap Black
302	WB16X32876 GE Inner Cap Brass
303	WB29X39644 GE Burner Cap
304	WB29X39647 GE Outer Enamel Cap
305	WB29X39440 GE AFB Outer Cap
306	WB29X39442 GE AFB Inner Cap
307	WB16X39645 GE Burner Head Assembly (12K BTU)
308	WB16X39648 GE Burner Head Assembly 18K BTU
314	WB29X39646 GE Burner Ring Assembly
315	WB16X40628 GE Base Burner + Insulation Pad
316	WB16X40627 GE Base Burner + Insulation Pad
317	INSULATION PAD BURNER
319	WB13X39641 GE AFB Igniter
320	WB13X39640 GE Igniter Assembly
321	WB09T10011 GE Oven Spring Igniter
322	WB02T10323 GE Oven Igniter Washer
323	WB13X40448 GE Igniter
324	WB01T10104 GE Oven Screw 8-32 MCH
325	WB02K10364 GE Oven Foot Grate
326	WB31X39267 GE Grate and Foot
327	INSULATION TOP
328	INSULATION TOP
340	BLACK MAINTOP
457	WB01X26995 GE Oven Screw 8-18 AB X 5/16
514	HARNESS HV LEFT REAR
515	HARNESS HV CENTER BACK
516	HARNESS HV CENTER FRONT
517	WB18X39303 GE Harness High Voltage
