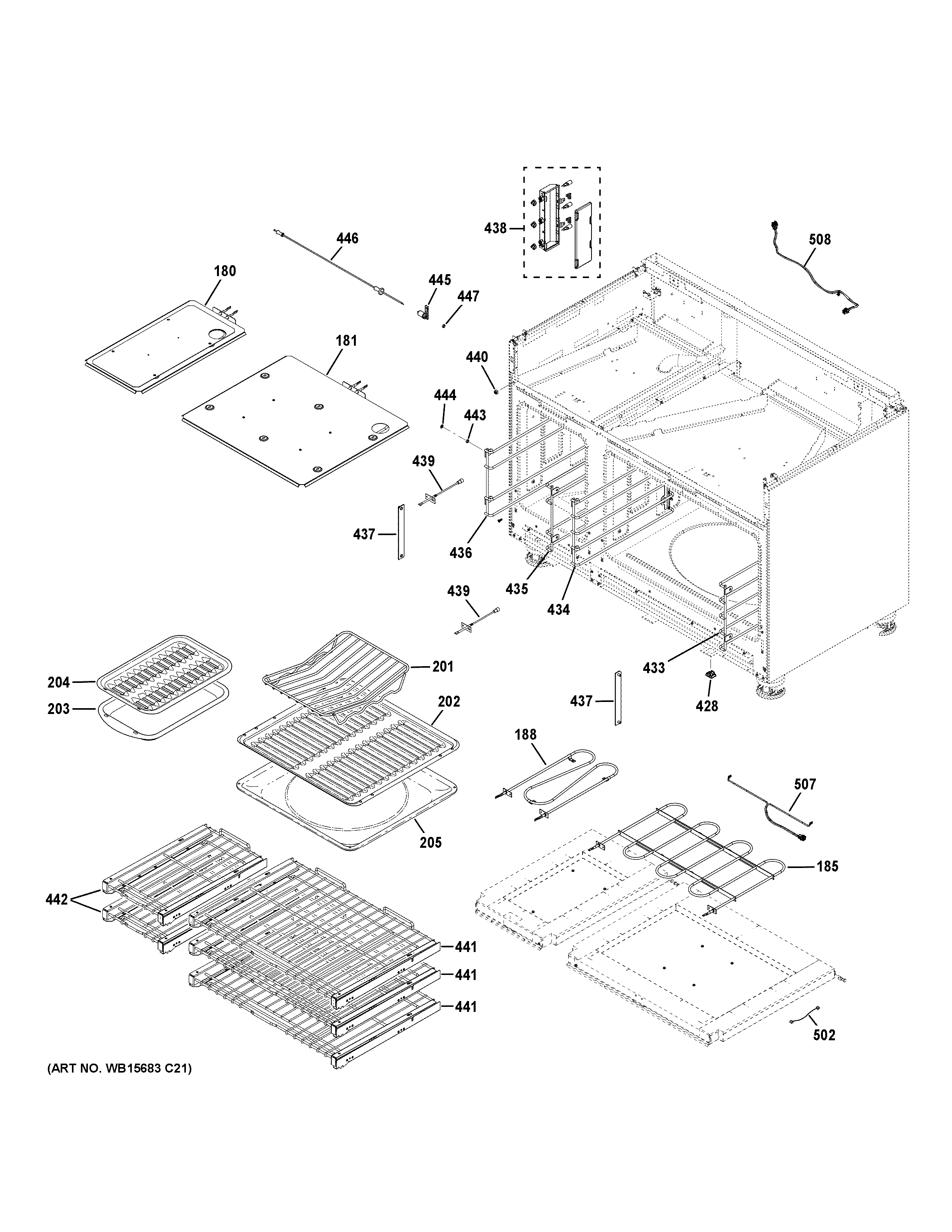

ZDP486NDT2SS OVEN CAVITY PARTS

ZDP486NDT2SS OVEN CAVITY PARTS

Written by

in

ZDP486NDT2SS OVEN CAVITY PARTS

Products

PositionProduct
180ELEMENT AND REFLECTOR BROIL COMPANION OV
181ELEMENT AND REFLECTOR BROIL MAIN OVEN
185WB44X39449 GE Oven Main Hidden Bake Element
188WB44X39446 GE Bake Companion Hidden Element
201WB48K10020 GE Oven Rack – Convection Roast
202RACK BROILER PAN
203PAN BROIL
204GRID PAN BROIL
205PAN BROILER
428BRACKET RJ45
433WB02K10394 GE Right Hand Oven Rack Guide
434WB02K10395 GE Oven Left Hand Guide Rack
435WB02K10396 GE Right-Hand Oven Rack Guide
436WB02K10397 GE Oven Left Rack Guide
437BRACE CAVITY ASM
438WB25X39610 GE Halogen Lamp Assembly
439WB21X22134 GE Oven Sensor Assembly
440WB02X28738 GE Oven Front Frame Bumper
441WB48X39557 GE Oven Slide Rack
442WB48X39554 GE Oven Slide Rack Companion
443SPRING WASHER
444WB01T10107 GE Oven Bolt Retainer
445WB20K10032 GE Oven Probe Receptacle
446WB18X39925 GE Thermistor Probe
447WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
447NUT RECEPTACL HEX 1/4-32
502WB18K10085 GE Harness
507HARNESS HIDDEN BAKE
508HARNESS EXT HIDDEN BAKE
