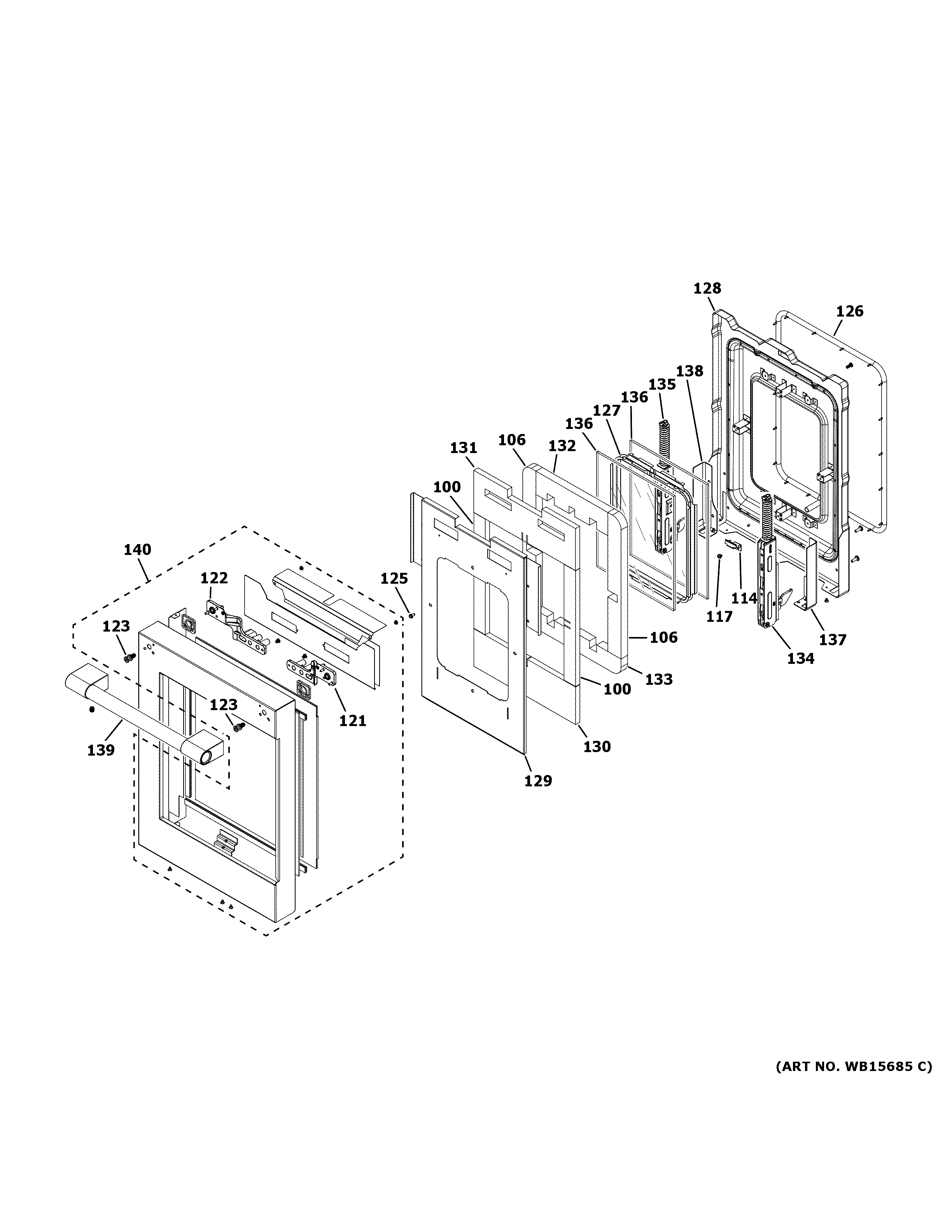

ZDP486NDT2SS SMALL DOOR ASSEMBLY

ZDP486NDT2SS SMALL DOOR ASSEMBLY

Written by

in

ZDP486NDT2SS SMALL DOOR ASSEMBLY

Products

PositionProduct
100FT INSUL DOOR SIDE
106RR INSUL DOOR SIDE
114CLIP WINDOW
117SCR 10-32 TR T 1/2 S
121BRACKET HANDLE RT
122BRACKET HANDLE LT
123WR01X11007 GE Refrigerator Fastener Door Handle
125WB01K10100 GE Screw 10-32 TRP 1/2"
126GASKET DOOR
127SPACER WINDOW
128LINER OVEN DOOR
129GUARD INSULATION
130FT INSUL DOOR BTM 12"
131INSULATION DOOR
132RR INSUL DOOR TOP 12"
133RR INSUL DOOR BTM 12"
134HINGE DOOR RIGHT
135HINGE DOOR LEFT
136WB57K10137 GE Glass Door Assembly
137GUSSET DOOR RIGHT
138GUSSET DOOR LEFT
139STAINLESS RANGE HANDLE 12"
140WB56X39845 GE Stainless Steel Door Assembly 36"
