ZDP486NRN1SS GRILL ASSEMBLY

ZDP486NRN1SS GRILL ASSEMBLY

Written by

in

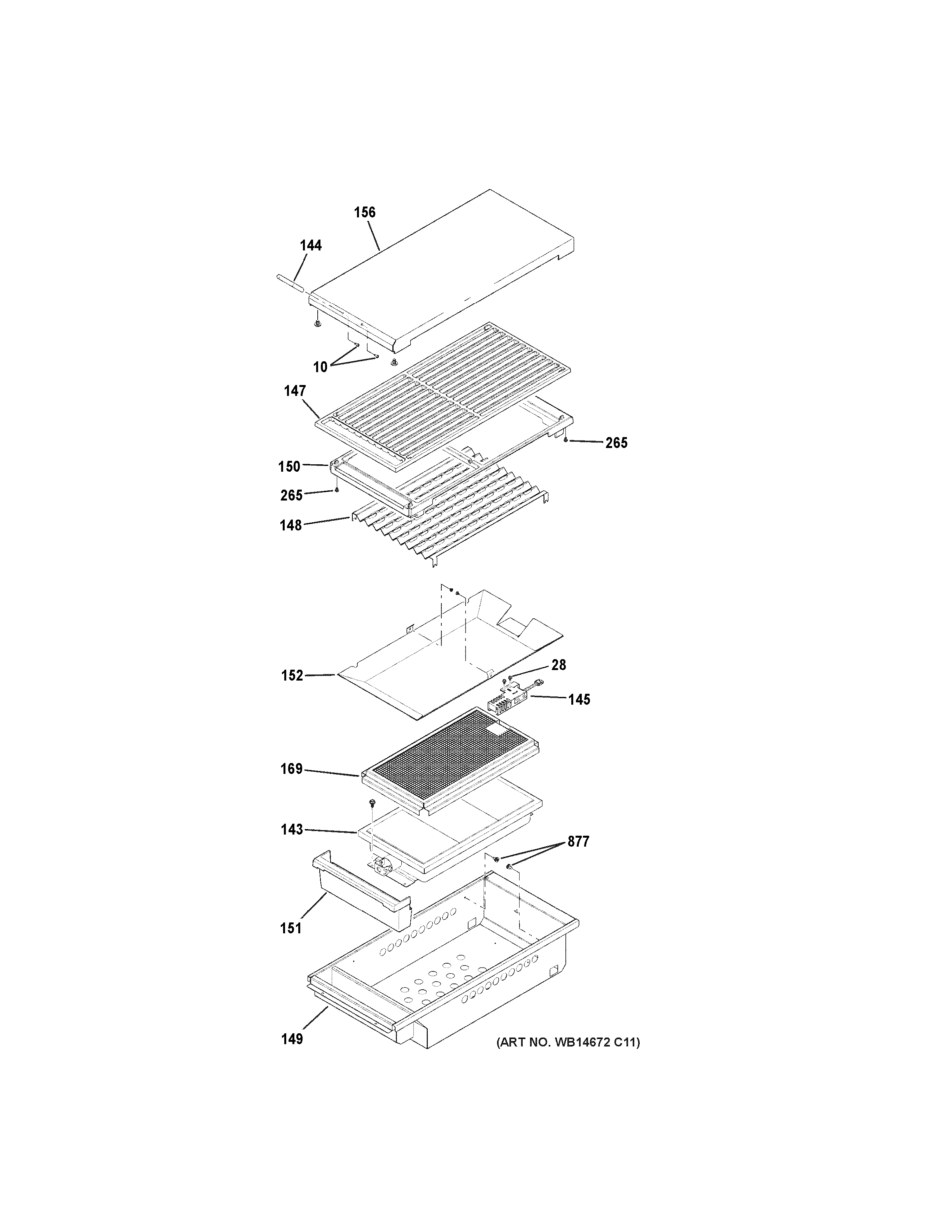

ZDP486NRN1SS GRILL ASSEMBLY

Products

PositionProduct
10WB01T10104 GE Oven Screw 8-32 MCH
28WB1X1293 GE Oven Screw
143WB28K10505 GE Oven Infrared Burner
144WB15K10088 GE Range Handle Cover
145WB13K10030 GE Oven Igniter Glow Bar
147GRATE GRILL
148WB36K10919 GE Oven Grill Baffle
149GRILL BODY WELD
150FRAME GRILL GRATE ASM
151WB49K10038 GE Oven Grease Trough Assembly
152WB34K10131 GE Oven Reflector Assembly
156WB07K10432 GE Oven Cover
169WB31K10226 GE Mesh Frame
265WB02K10365 GE Oven Foot Grate
877WB01T10048 GE Oven Type A Shoulder Screw 10-16
