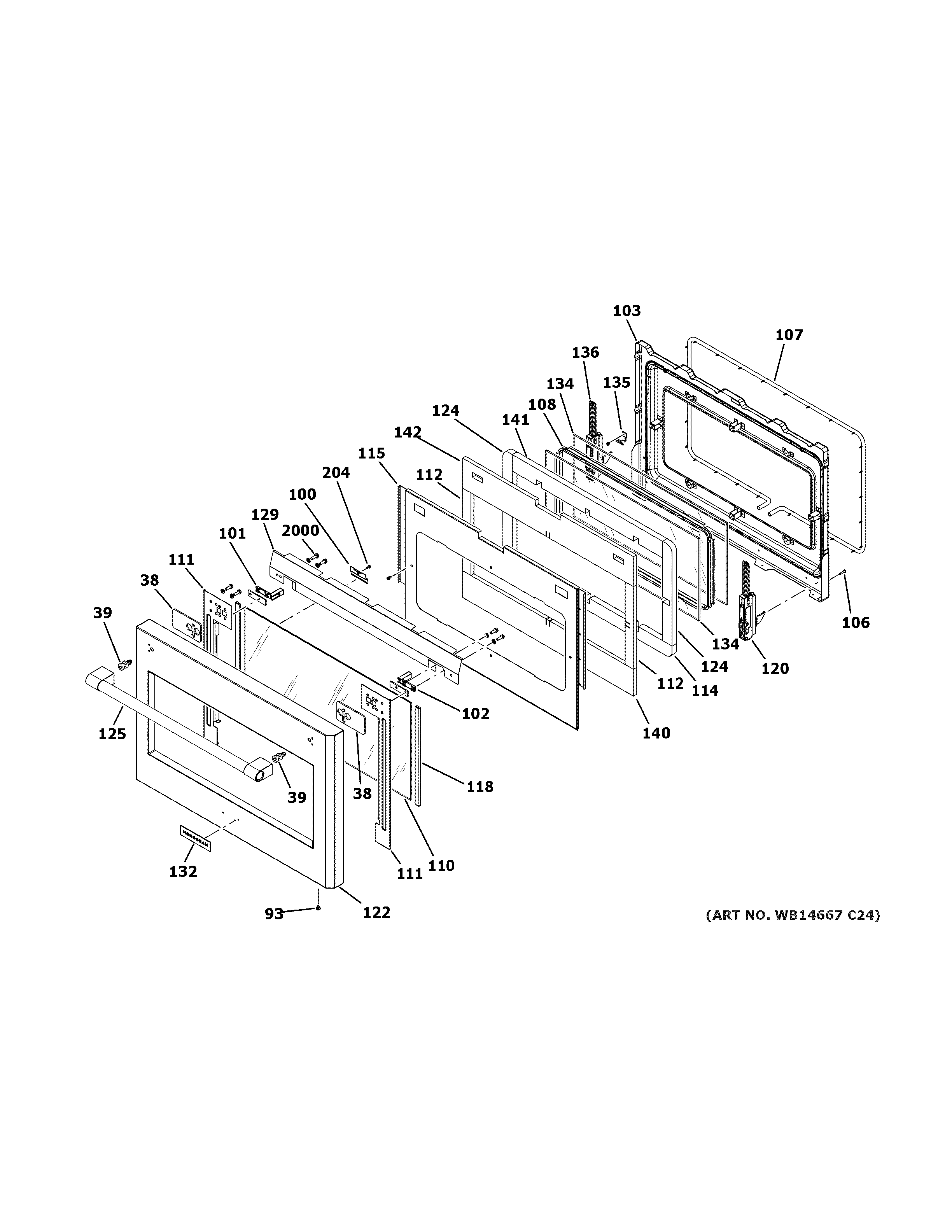

ZDP486NRN1SS LARGE DOOR ASSEMBLY

Products

Position	Product
38	PAD END CAP
39	WR01X11007 GE Refrigerator Fastener Door Handle
93	WB1X5364 GE Oven Mounting Screw
100	WB02K10218 GE Range Bracket Glass
101	WB34X31807 GE Left Handle Bracket
102	WB34X31805 GE Right Handle Bracket
103	WB55K10061 GE Oven Door Liner Assembly 27
106	WB01K10089 GE Screw 10-32 Tr T 7/8 S
107	WB02K10221 GE Oven Gasket 27"
108	WB34K10109 GE Window Spacer
110	WB57K10135 GE Oven 27-inch Glass Door
111	SUPPORT OUTER GLASS LEFT
111	SUPPORT OUTER GLASS RIGHT
112	FT INSUL DOOR SIDE
114	RR INSUL DOOR BTM 27"
115	GUARD INSULATION
118	WB04K10028 GE Door Pad
120	WB10K10015 GE Oven Right Door Hinge
122	WB56X35067 GE Oven Door Stainless Steel PA
124	RR INSUL DOOR SIDE
125	48 HANDLE AND END CAP
129	HEAT DEFLECTOR
132	BADGE MONOGRAM
134	WB57K10138 GE Oven Door Glass
135	CLIP WINDOW
136	WB10K10016 GE Oven Left Door Hinge
140	FT INSUL DOOR BTM 27"
141	RR INSUL DOOR TOP 27"
142	FT INSUL DOOR TOP 27"
204	WB1K84 GE Oven Screw and
204	WB1K5062 GE Oven Screw
2000	WB01K10100 GE Screw 10-32 TRP 1/2"
