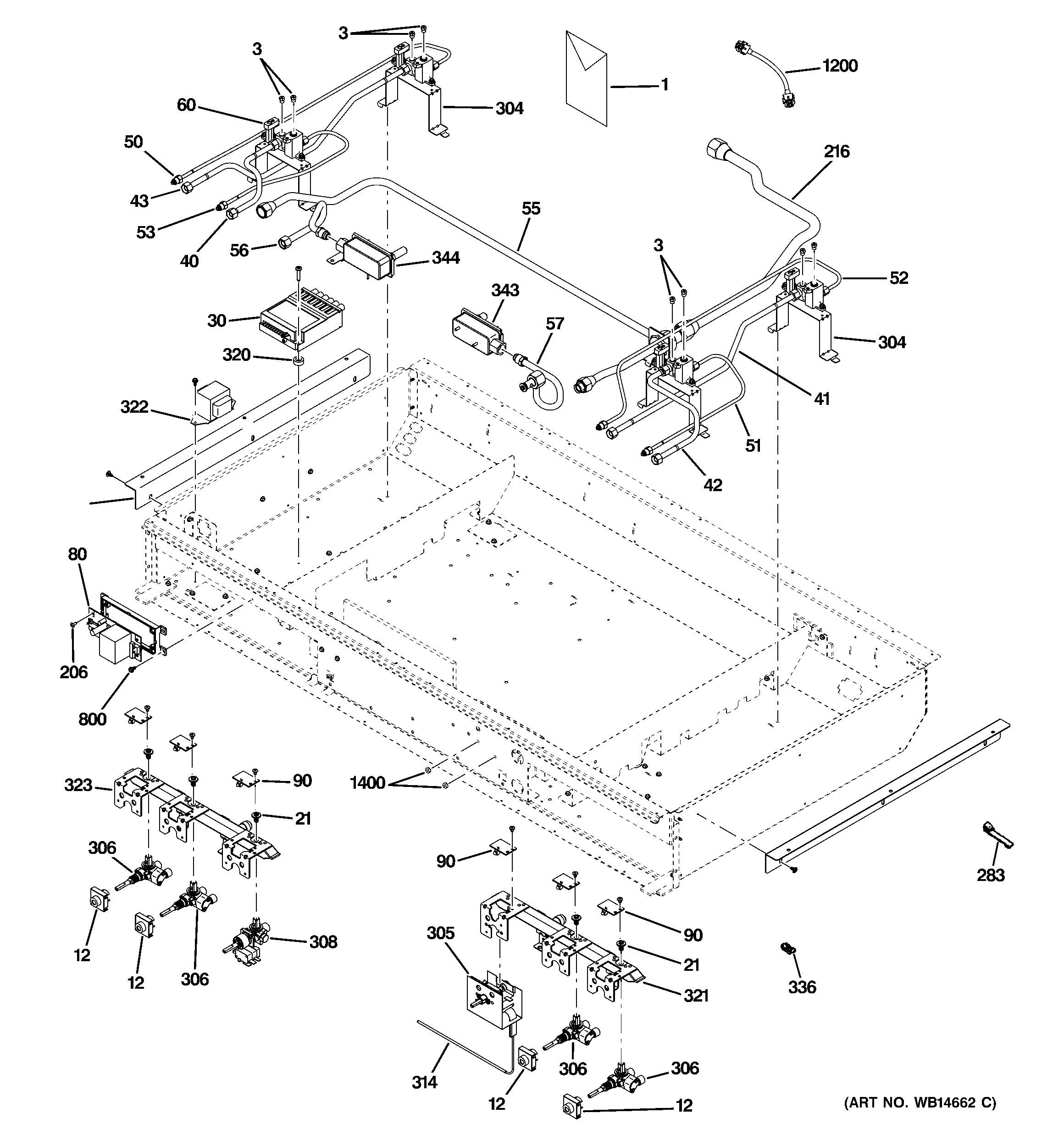

ZDP486NRP1SS GAS & BURNER PARTS

ZDP486NRP1SS GAS & BURNER PARTS

Written by

in

ZDP486NRP1SS GAS & BURNER PARTS

Products

PositionProduct
1WB28K10538 GE Oven LP Conversion Kit
1CARRIER ORIFICE ASM
1GEN 49-85117
1WB02T10303 GE Cleaner Lubricant
1GEN 31-10689
1WB02T10111 GE Cleaner Stainless Steel
1GEN 31-10693
1GEN 31-10694
1GEN 31-10695
1GEN 31-14751
3WB28K10531 GE Griddle Spud Orifice
3WB28T10159 GE Oven NG Simmer Orifice Spud
3WB28T10155 GE Oven NG Main Orifice Spud
3WB28K10529 GE Oven Griddle Spud Orifice
3WB28K10532 GE Spud Orifice Grille
3WB28K10530 GE Oven Grill Spud Orifice
3WB28T10117 GE Oven LP Main Orifice Spud
3WB28T10118 GE Oven LP Main Orifice Spud
12WB18X31498 GE Burner Box Harness
21WB01K10067 GE Oven Screw 1/4" HD 20
30WB13K10031 MODULE SPARK
40WB28K10518 GE Tube and Nut Assembly
41WB28K10493 GE Oven Tube and Nut Assembly
42WB28K10494 GE Oven Tube and Nut Assembly
43WB28K10522 GE Tube and Nut Assembly
51WB28K10497 GE Oven Tube and Nut Assembly
52WB28K10498 GE Oven Tube & Nut Assembly
55TEE SWAGED ASM
56TUBE GRILL AND NUT ASM
60WB28T10114 GE Oven Injector Burner 18K
80WB25K10013 GE Oven LED Power Supply
90WB25K10012 GE Oven LED Assembly
206WB01K10091 GE Oven Screw
206WB1K5 GE Oven Screw 8-18 X B97
216TUBE REGULATOR ASM
283WB02X21679 GE Oven Wire Clip
283GEN WB02K0038
304WB02K10192 GE Range Injection Bracket
306VALVE DUAL
306GEN WB21K10132
308WB21K10126 GE Oven Switch Valve Assembly
308WB21K10134 GE Oven Switch Valve Assembly
320WB1K10 GE Oven Grommet Handle
321WB28K10526 GE Left Pipe Manifold Assembly
322WB27K10298 GE Oven Transformer
323WB28K10527 GE Oven Pipe Manifold Assembly RT
336GEN WB02X7066
344WB19K10037 GE Oven Safety Valve
344WB19K10033 GE Oven Safety Valve
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
1200WB18K10047 GE Oven HV Harness
