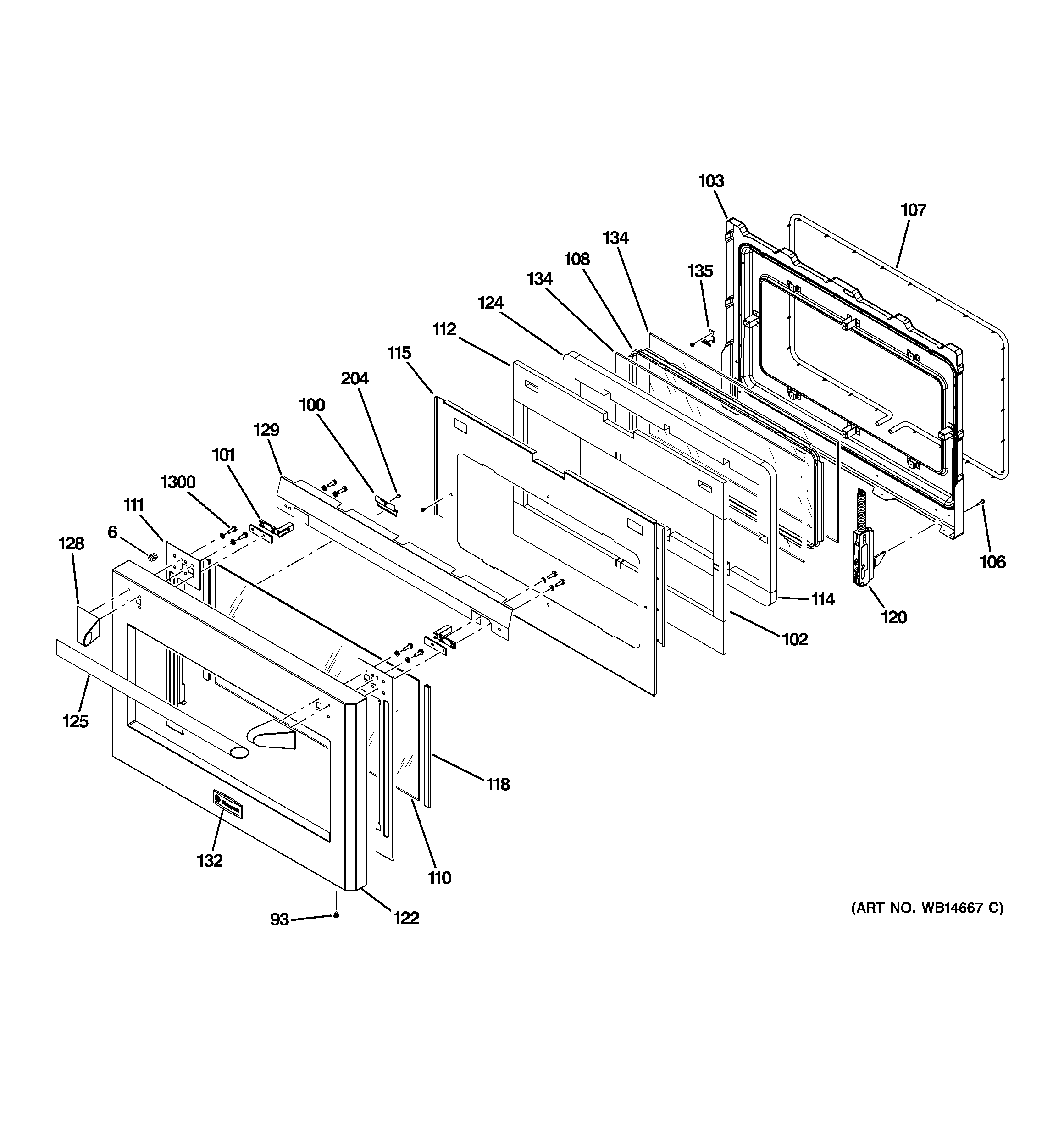

ZDP486NRP1SS LARGE DOOR ASSEMBLY

Products

Position	Product
6	WR02X11754 GE Refrigerator Screw Set
93	WB1X5364 GE Oven Mounting Screw
100	WB02K10218 GE Range Bracket Glass
101	WB02K10219 GE Range Extension Endcap
102	FT INSUL DOOR SIDE
102	FT INSUL DOOR SIDE
103	WB55K10061 GE Oven Door Liner Assembly 27
106	WB01K10089 GE Screw 10-32 Tr T 7/8 S
107	WB02K10220 GE Range Door Gasket
107	WB02K10221 GE Oven Gasket 27"
108	WB34K10109 GE Window Spacer
110	WB57K10135 GE Oven 27-inch Glass Door
111	SUPPORT OUTER GLASS LF
111	SUPPORT OUTER GLASS RT
112	FT INSUL DOOR BTM 27"
112	FT INSUL DOOR TOP 27"
112	FT INSUL DOOR BTM 27"
112	FT INSUL DOOR TOP 27"
114	WB35K10134 GE Door Bottom Insulation 27"
114	RR INSUL DOOR TOP 27"
114	RR INSUL DOOR TOP 27"
114	RR INSUL DOOR BTM 27"
115	GUARD INSULATION
118	WB04K10028 GE Door Pad
120	WB10K10016 GE Oven Left Door Hinge
120	WB10K10015 GE Oven Right Door Hinge
122	WB56K10072 GE Oven Door Panel Assembly 27 Inch
124	RR INSUL DOOR SIDE
124	RR INSUL DOOR SIDE
125	WB15K10090 GE 27-Inch Oven Bar Handle
128	WR02X12344 GE Refrigerator Endcap
129	HEAT DEFLECTOR 12"
129	HEAT DEFLECTOR
132	WB02K10295 GE Oven Monogram Badge
134	WB57K10138 GE Oven Door Glass
135	CLIP WINDOW
204	WB1K5062 GE Oven Screw
204	WB1K84 GE Oven Screw and
1300	WB01K10088 GE Screw 1/4-20 Tt Hxws 3/4"
