ZDP48L6DWSS MANIFOLD & CONTROLS – Aparts

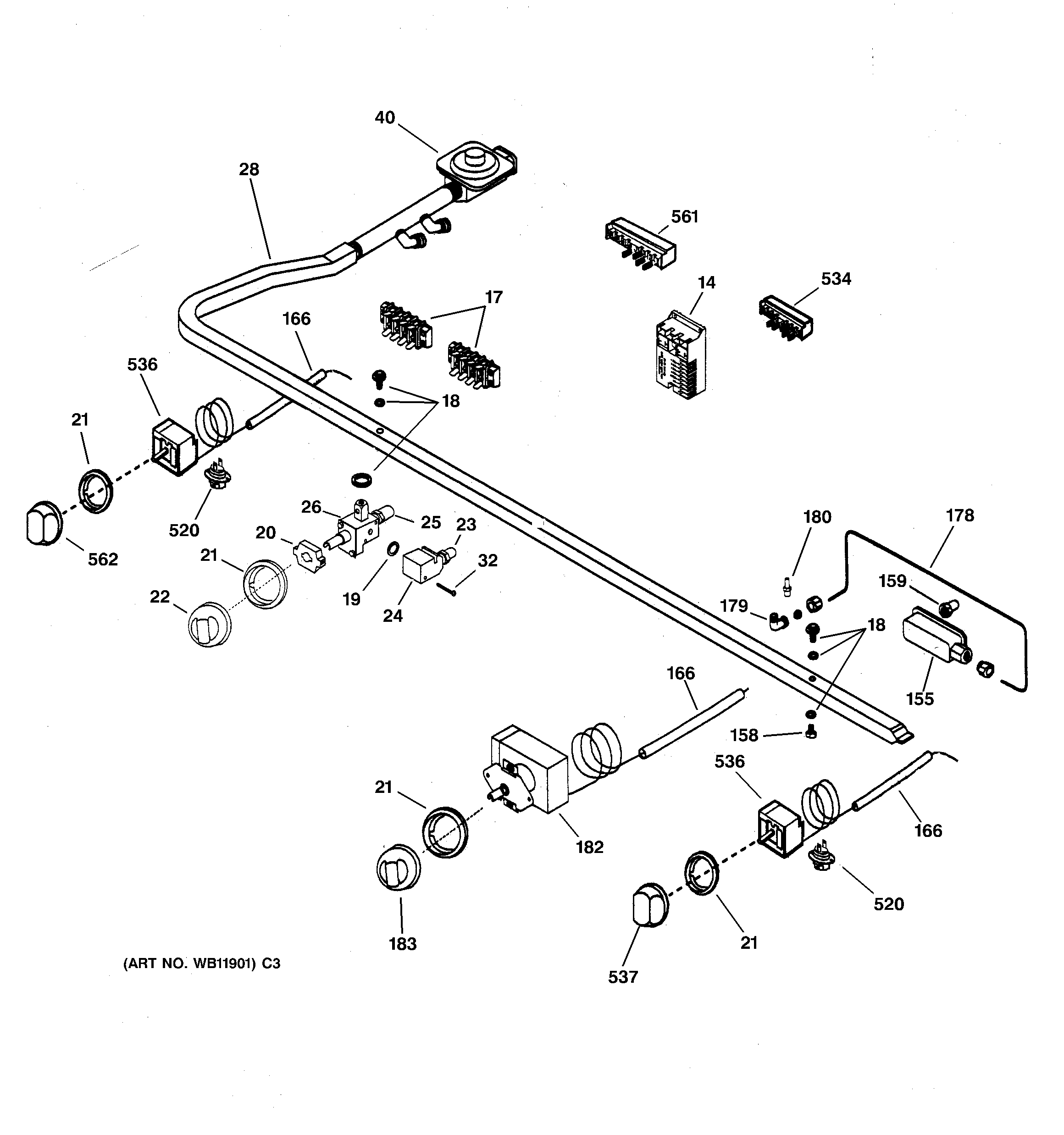

ZDP48L6DWSS MANIFOLD & CONTROLS

Products

Position	Product
14	WB21X10029 GE Oven Spark Igniter
17	GEN WB17X5132
18	GEN WB01X5975
19	GEN WB02X8603
20	SPARK SWITCH/SIMMER BURN
21	GEN WB07X7391
22	GEN WB03X5865
23	ORIFICE LP SIMMER
24	GEN WB17X5133
25	ORIFICE LP MAIN
26	GEN WB21X5354
28	GEN WB02X10357
32	GEN WB01X10103
40	GEN WB21X10027
155	THERMAL VALVE`
158	GEN WB02X8609
159	ORIFICE LP GRL/ GRD
166	GEN WB02X8611
178	GEN WB02X8606
179	GEN WB02X8607
180	GEN WB02X8608
182	GEN WB21X5356
183	GEN WB03X5866
520	GEN WB21X5369
534	5 PUSH-BUTTON SWITCH
536	GEN WB21X5358
537	GEN WB03X5868
561	GEN WB24X5365
562	GEN WB03X5869
