ZDP48L6RWSS MANIFOLD & CONTROLS – Aparts

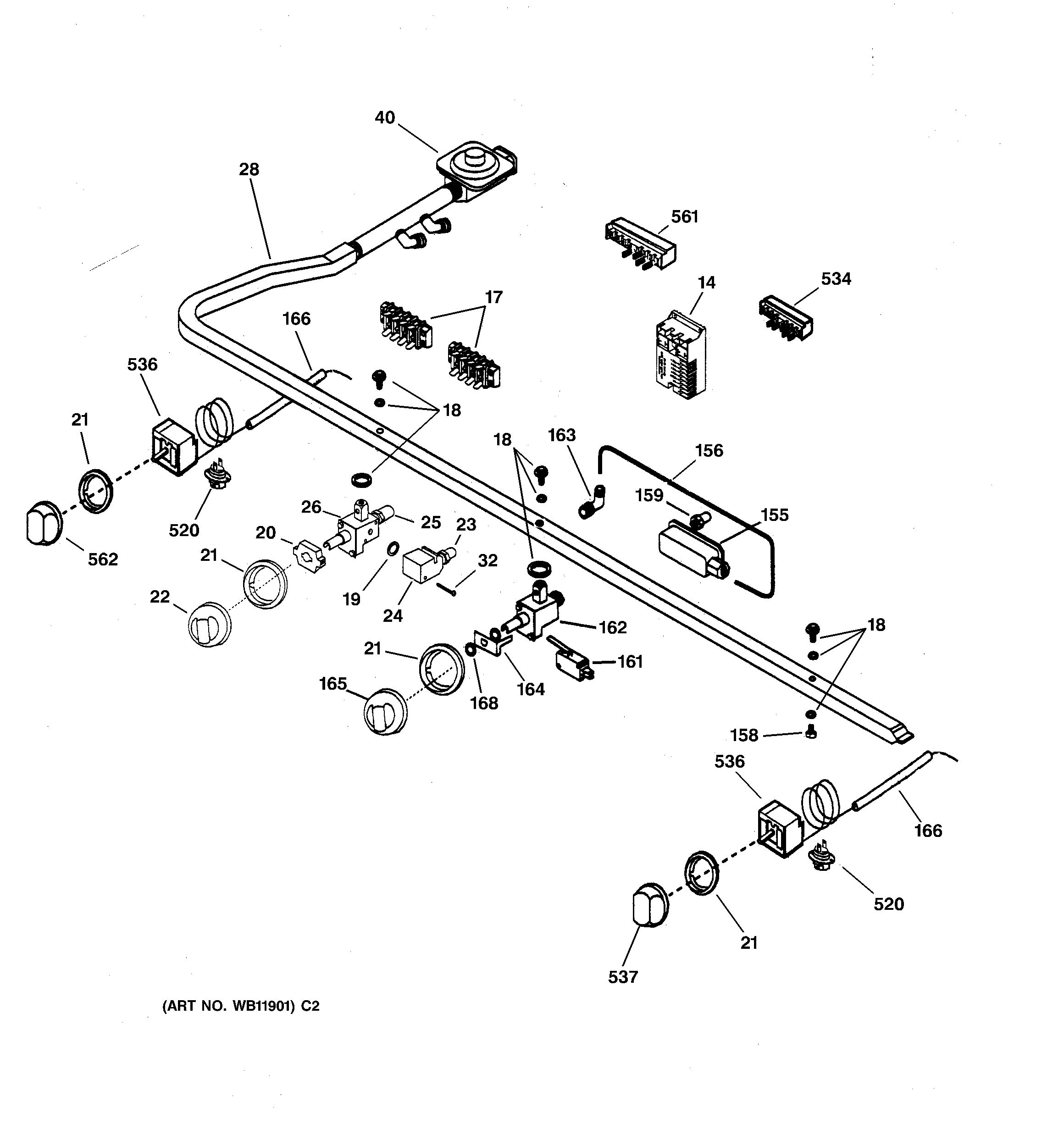

ZDP48L6RWSS MANIFOLD & CONTROLS

Products

Position	Product
14	WB21X10029 GE Oven Spark Igniter
17	GEN WB17X5132
18	GEN WB01X5975
19	GEN WB02X8603
20	SPARK SWITCH/SIMMER BURN
21	GEN WB07X7391
22	GEN WB03X5865
23	ORIFICE LP SIMMER
24	GEN WB17X5133
25	ORIFICE LP MAIN
26	GEN WB21X5354
28	GEN WB02X10358
32	GEN WB01X10103
40	GEN WB21X10027
155	THERMAL VALVE`
156	GEN WB02X8613
158	GEN WB02X8609
159	ORIFICE LP GRL/ GRD
161	GEN WB24X5363
162	SIMMER VALVE-STANDARD
163	GEN WB02X8614
164	GEN WB02X8615
165	GEN WB03X5867
166	GEN WB02X8611
168	SPEED CLIP CAM SWITCH
520	GEN WB21X5369
534	5 PUSH-BUTTON SWITCH
536	GEN WB21X5358
537	GEN WB03X5868
561	GEN WB24X5365
562	GEN WB03X5869
