ZDT165SSL0SS ESCUTCHEON & DOOR ASSEMBLY

ZDT165SSL0SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

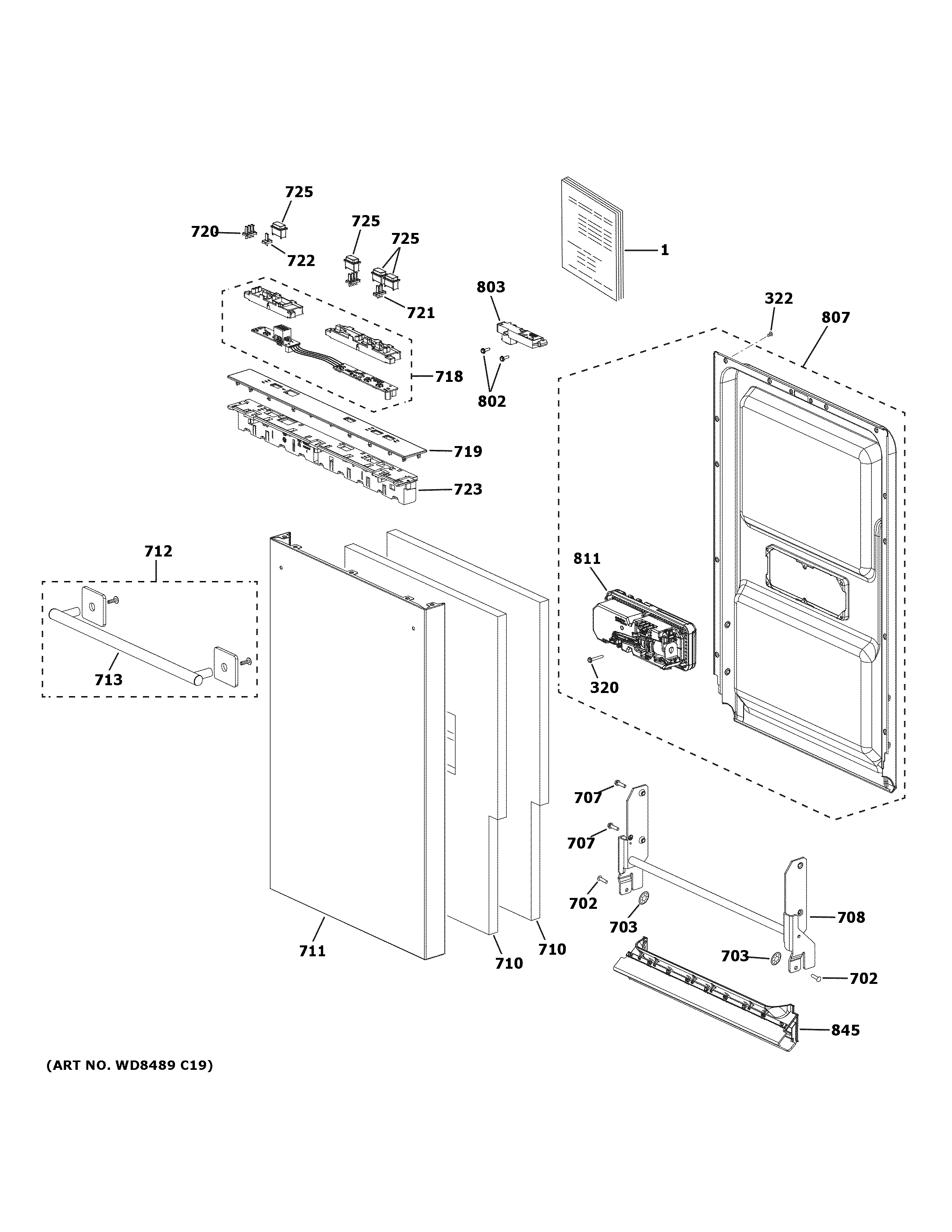

ZDT165SSL0SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PRINTED ONLYMINI MANUAL AND WIRING
1PM CUSTOM PANEL TEMPLATE
1PM INSTALL INSTRUCTIONS
1PM OWNERS MANUAL
320WD02X24690 GE Screw
322WD02X27558 GE Screw
702WD02X29939 GE Hinge Pin
703WD02X29938 GE Dishwasher Retainer Clip
707WD02X24689 GE Dishwasher Door Brace Screw
708WD27X24639 GE Dishwasher Door Brace
710DOOR INSULATION
711OUTER DOOR PANEL ASM SS MONOGRAM
712DOOR HANDLE ASM
713DOOR HANDLE MG
718WD21X28718 GE Dishwasher UI Control Assembly
719CONSOLE COVER SS
720WD02X26239 GE Dishwasher Light Pipe
721LIGHT PIPE 2
722WD02X26240 GE Dishwasher Light Pipe
723WD12X26199 GE Dishwasher Console
725BUTTONS MONOGRAM
802WD02X24697 GE Latch Screw Assembly
803WD12X24644 GE Dishwasher Door Latch
807INNER DOOR ASSEMBLY
811DETERGENT MODULE
845WD08X24623 GE Dishwasher Beach Gasket Assembly
