ZDT165SSL0SS RACK ASSEMBLIES

ZDT165SSL0SS RACK ASSEMBLIES

Written by

in

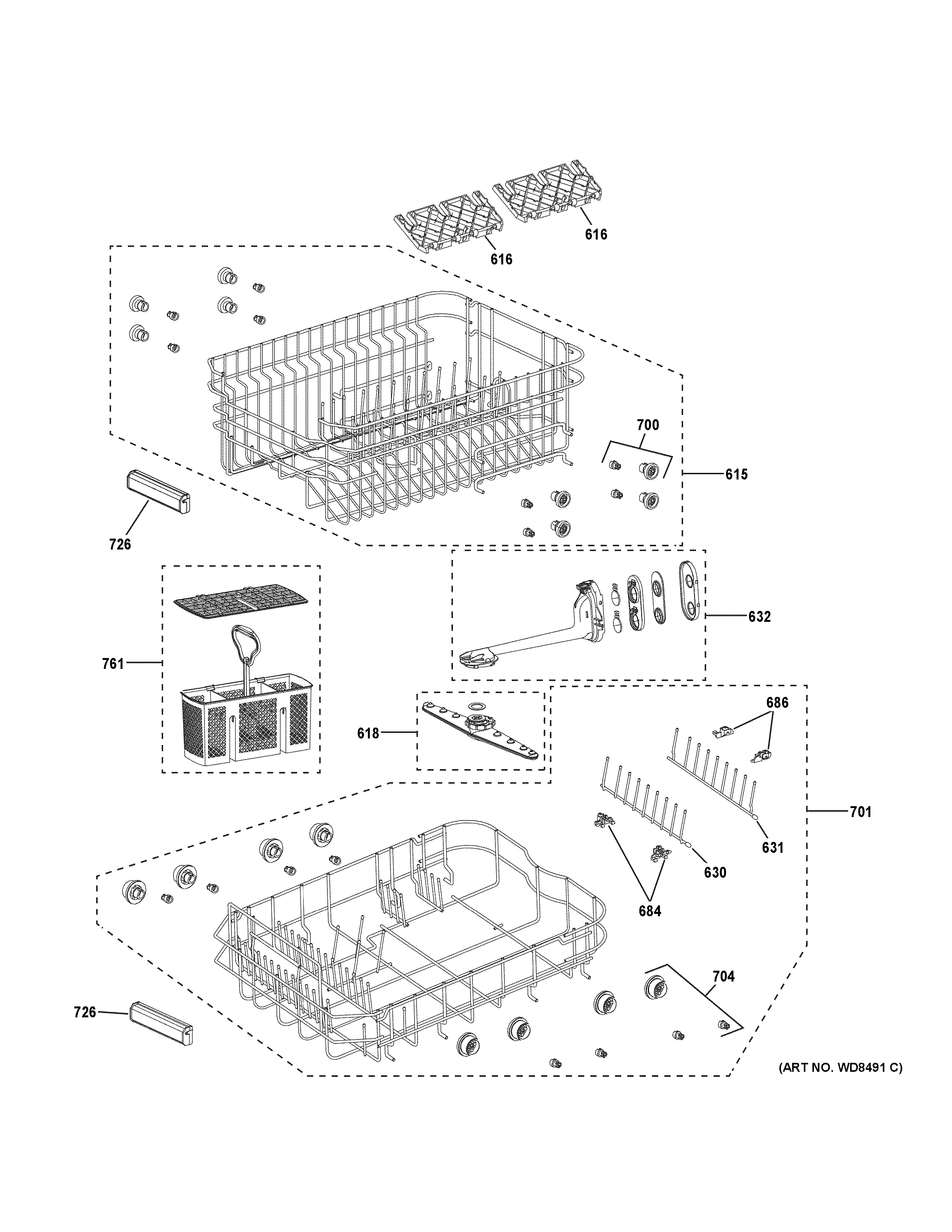

ZDT165SSL0SS RACK ASSEMBLIES

Products

PositionProduct
615WD28X24702 GE Dishwasher Upper Rack
616CUP SHELF
618WD22X24742 GE Dishwasher Mid Spray Arm and Gasket Assembly
630WD28X24662 GE Dishwasher Fold Down Tines Rear
631FOLD DOWN TINES FRONT
632WD22X25158 GE Dishwasher Mid Spray Arm Conduit Assembly
684FDT CLIPS REAR
686FDT CLIPS FRONT
700WD12X24713 GE Dishwasher Wheel Stud Assembly Upper Rack
701WD28X24671 GE Dishwasher Lower Rack Assembly
704WD12X24712 GE Dishwasher Lower Rack Wheel Stud Assembly
726MONOGRAM RACK HANDLE ASM
761WD28X31200 GE Dishwasher Silverware Basket and Lid
