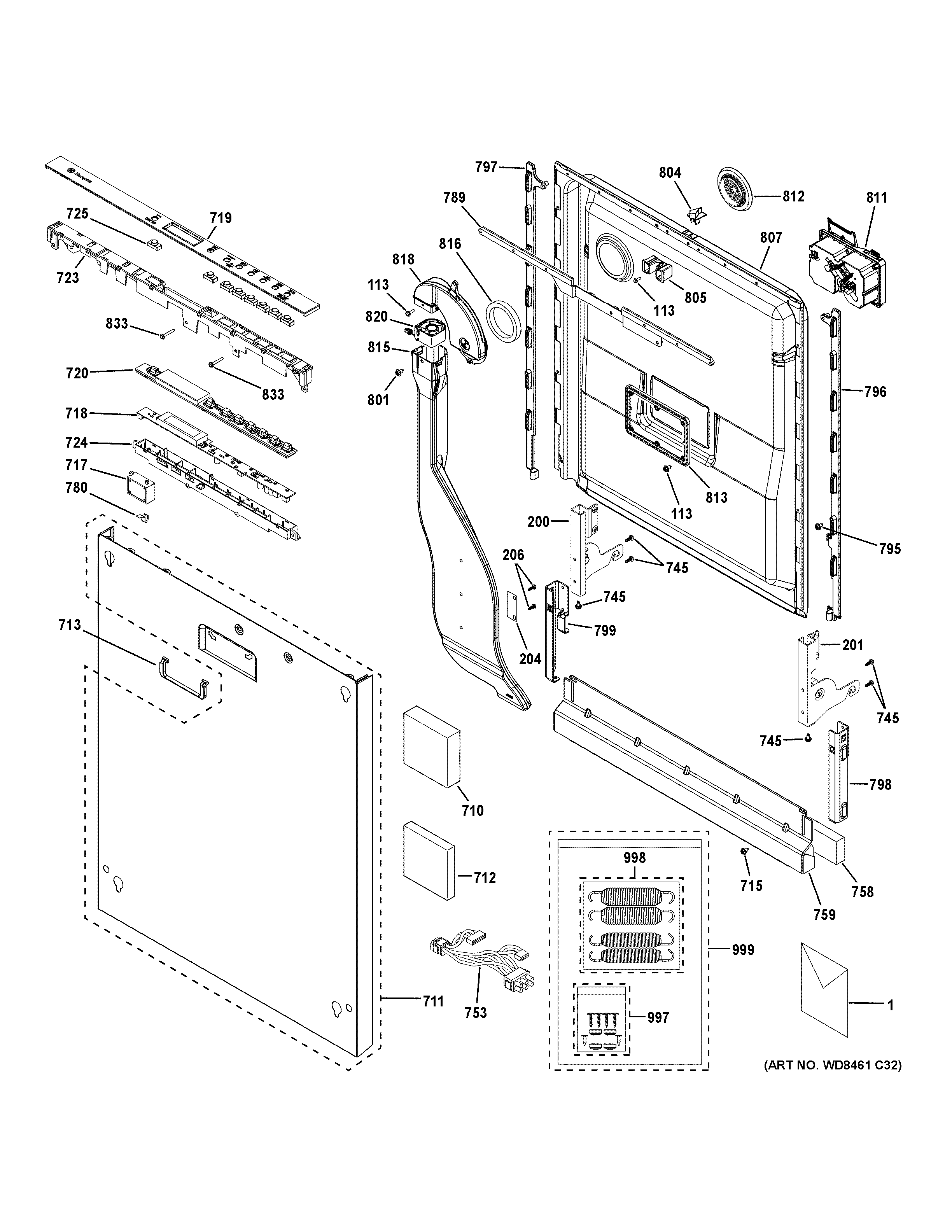

ZDT800SIF5II ESCUTCHEON & DOOR ASSEMBLY

ZDT800SIF5II ESCUTCHEON & DOOR ASSEMBLY

Written by

in

ZDT800SIF5II ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM MINI-MANUAL
1INSERT MINI MANUAL
1PM OWNERS MANUAL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD01X21475 GE Dishwasher Left Hand Hinge Friction Pad Assembly
201WD01X21435 GE Dishwasher Right Hand Hinge Friction Pad Assembly
204GROUND PIECE HINGE
206WD02X10208 GE Screw 10-32 TTT Hex 7/16
710BLOCK FOAM DOOR
711WD01X25659 GE Door Panel Trim
712BLOCK FOAM DOOR
713WD13X10027 GE Dishwasher Trim Panel Handle
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
717WD01X22135 GE Speaker
718WD21X30758 GE Dishwasher LCD User Interface Service Kit
719WD34X22947 GE Dishwasher Console Cover Kit
720WD21X20299 GE Dishwasher Silicone Light Pipe
723TOP CONTROL CONSOLE
724WD12X20225 GE Dishwasher Bottom Housing
725WD09X20394 GE Dishwasher Button
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X20149 GE Dishwasher Door Harness Assembly
758WD27X21334 GE Insulation
759TOE KICK
780WD01X22934 GE Ground Clip Insert
789WD13X22837 GE Dishwasher Top Strip Attachment
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796ATTACHMENT STRIP LH
797WD01X22836 GE Dishwasher Right Hand Attach Strip
798WD01X22513 GE Dishwasher Hinge Support Bracket
799WD01X22512 GE Dishwasher Hinge Support Bracket
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X20245 GE Dishwasher Strike Latch
805WD01X20220 GE Dishwasher Top Attachment Strip
807WD31X29639 GE Dishwasher Inner Door
811WD12X32799 GE Dishwasher Detergent Module
812WD24X20587 GE Dishwasher Vent Cover
813WD12X10462 GE Dishwasher Detergent Plate
815WD12X20218 GE Dishwasher Vent Conduit Assembly
816DOOR VENT SEAL
818WD12X23336 GE Dishwasher Transition Assembly
820WD24X20390 GE Dishwasher Vent Fan Assembly
833SCR 10-16 PL TR 2.25 S
997WD02X32581 GE Door Hardware and Template Kit
998WD02X32580 GE Door Balance Kit
999WD35X20417 GE Trim Panel Accessory Kit
