ZDT800SPF1SS LOWER RACK ASSEMBLY

ZDT800SPF1SS LOWER RACK ASSEMBLY

Written by

in

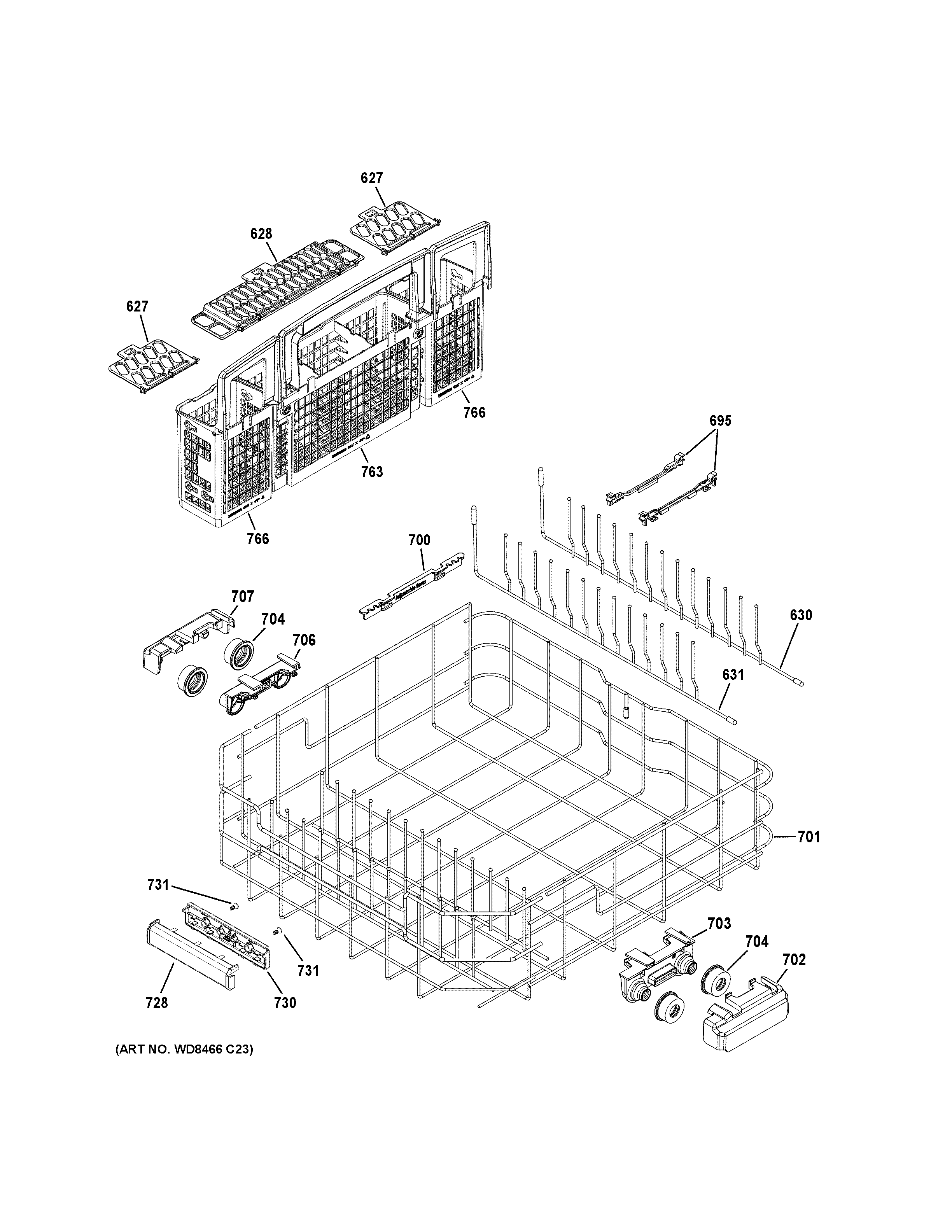

ZDT800SPF1SS LOWER RACK ASSEMBLY

Products

PositionProduct
627LID BASKET SIDE
628WD28X20153 GE Middle Basket Lid
630WD28X20380 GE Dishwasher Coated Lower Rack
631WD28X20381 GE Dishwasher FDT Coated Lower Rack
695WD12X20386 GE Dishwasher Lower Rack Clip
700WD28X20379 GE Dishwasher Indexer
701LOWER RACK
702WD12X20382 GE Dishwasher Roller Cover
703RACK CARRIER AND ROLLER KIT
704WD12X26146 GE Dishwasher Lower Rack Roller
706WD12X20387 GE Dishwasher Carrier Roller
707WD12X20383 GE Roller Cover
728WD22X20384 GE Dishwasher Handle Cover Assembly
730COVER HANDLE REAR
731WD02X20176 GE Dishwasher Stainless Steel 8-16 FLT Screw
763WD28X25327 GE Dishwasher Silverware Basket Assembly with R
766BASKET ASM SIDE
