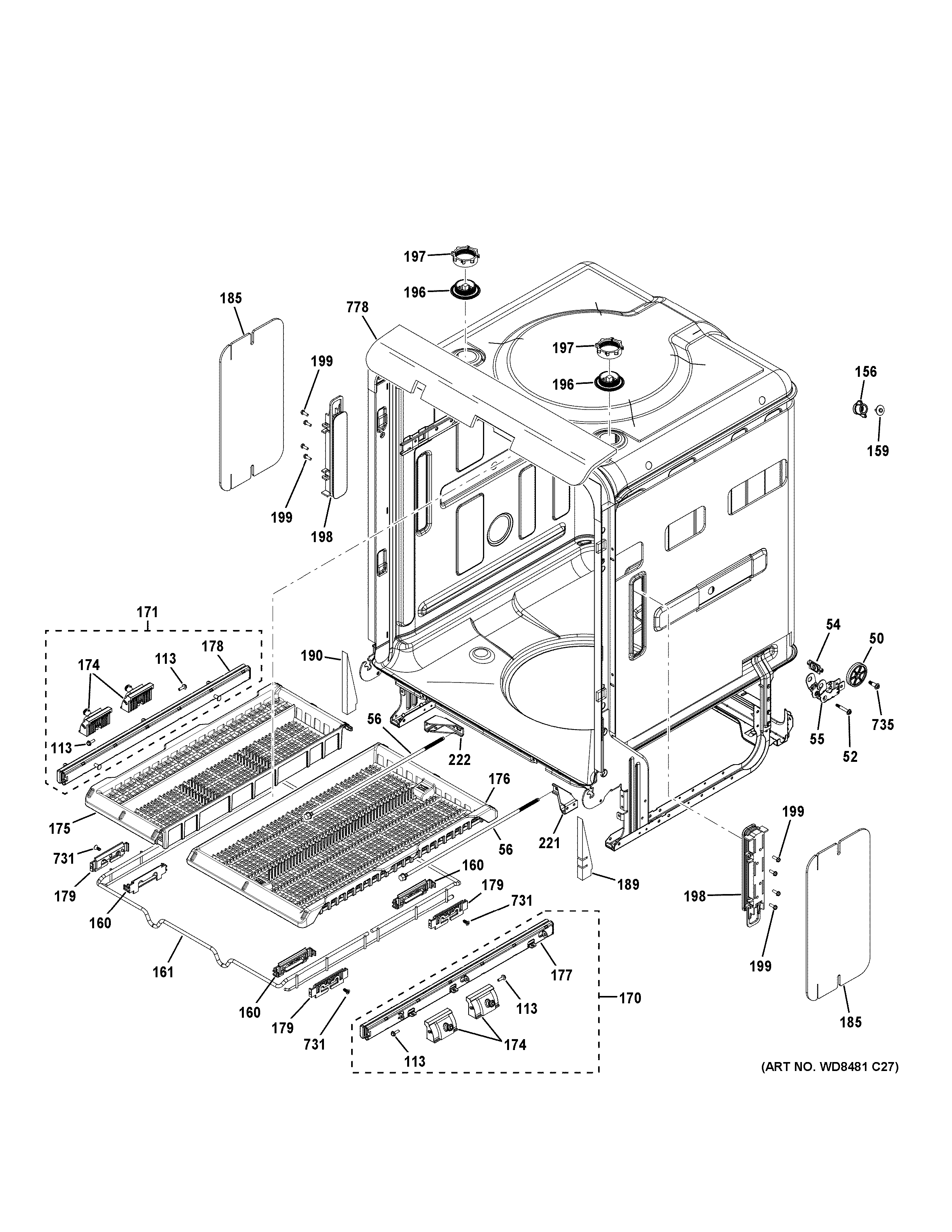

ZDT870SIF0II BODY PARTS (2)

ZDT870SIF0II BODY PARTS (2)

Written by

in

ZDT870SIF0II BODY PARTS (2)

Products

PositionProduct
50WD27X20211 GE Dishwasher Rear Leveling Wheel
52SCR 8-32 B IHXW 5/4
54WD02X22539 GE Dishwasher Leveling Nut
55WD27X20676 GE Dishwasher Levelling Arm Bracket
56WD02X22538 GE Leveling Screw
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
156WD02X20685 GE Dishwasher Tub Mount Sleeve
159WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
160WD30X20415 GE Inner Wire Frame Clip
161WD30X26007 GE Dishwasher Coated Third Rack
170THIRD RACK SLIDE ASM KIT RH
171WD30X33401 GE Third Rack Slide Assembly Kit Lh
174WD30X20323 GE Mount and Gasket Assembly
175TRAY UTENSIL
176WD28X26011 GE Dishwasher Silverware Tray Assembly
177SLIDE THIRD RACK
178SLIDE THIRD RACK
179WD30X20414 GE Outer Frame Wire Clip
185COVER LIGHT
189WD01X22898 GE Right Offset Leg Shim
190WD01X22899 GE Left-Hand Offset Leg Shim
197WD21X20496 GE Dishwasher Top Light Service Kit Assembly
198WD06X22353 GE Tub Side Light Assembly
199SCR 7-19 PL IHXW 1/2 S
221BRACKET BOLT RETAINER
222BRACKET BOLT RETAINER
731WD02X20176 GE Dishwasher Stainless Steel 8-16 FLT Screw
735WD02X10206 GE Dishwasher Pulley Screw
778WD30X20687 GE Dishwasher Insulation Tub Lip
