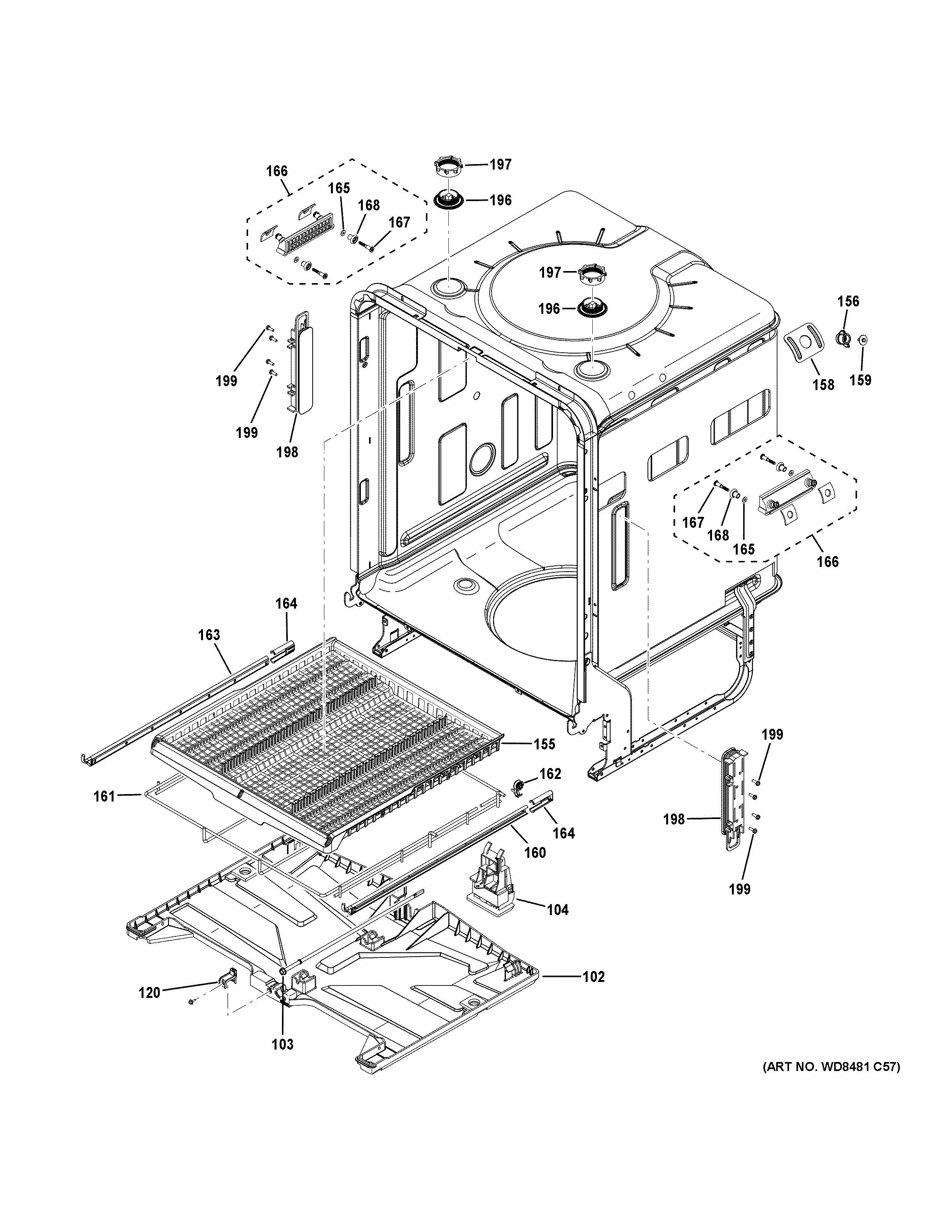

ZDT925SIN8II BODY PARTS (2)

ZDT925SIN8II BODY PARTS (2)

Written by

in

ZDT925SIN8II BODY PARTS (2)

Products

PositionProduct
102LEAK PAN AND GASKET ASM
103LEVELING SCREW
104WD16X25651 GE Dishwasher Pan Levelling Leg and Gear AS
120WD21X20552 GE Dishwasher Leak Pan Sensor
155WD28X24462 GE Dishwasher Third Rack Tray
156WD02X20685 GE Dishwasher Tub Mount Sleeve
158WD30X22340 GE Dishwasher Tub Mount Brace
159WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
160WD27X22350 GE Dishwasher Rail and Endcap Assembly
161WD30X24457 GE Dishwasher Frame Wire Coated Assembly
162WD30X22347 GE Dishwasher Roller and Bracket
163WD27X22351 GE Dishwasher Rail Assembly
164WD02X22342 GE Dishwasher Rear Endcap
165WD3X767 GE Dishwasher Washer
168WD30X23280 GE Dishwasher Tub Third Rack
196WD21X28180 GE Dishwasher LED Lights and Board Assembly
197WD21X20496 GE Dishwasher Top Light Service Kit Assembly
198WD21X28181 GE Dishwasher Side LED Lights and Board Assembly
199SCR 7-19 PL IHXW 1/2 S
