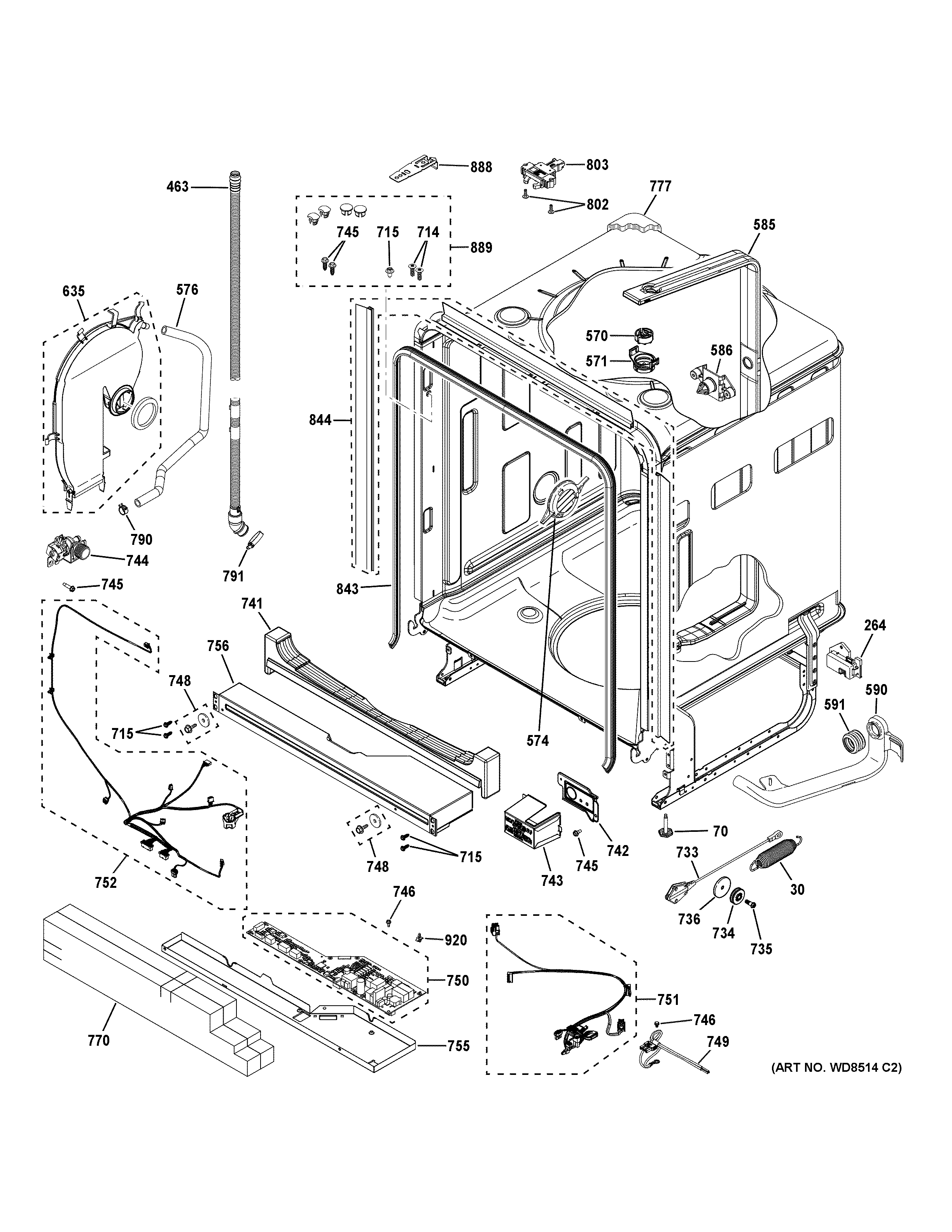

ZDT925SINBII BODY PARTS (1)

ZDT925SINBII BODY PARTS (1)

Written by

in

ZDT925SINBII BODY PARTS (1)

Products

PositionProduct
30SPRING DOOR
30WD03X20445 GE Dishwasher Door Spring
30WD03X20446 GE Dishwasher Door Spring
70WD02X31882 GE Leveling Leg
264WD21X31758 GE Dishwasher Wifi with Bluetooth Module
463WD24X27778 GE Dishwasher High Loop Drain Hose
570WD22X20689 GE Dishwasher Impeller
571WD22X20688 GE Dishwasher Hub
574WD12X28578 GE Dishwasher Fill Funnel Nut
576WD24X27660 GE Dishwasher Fill Funnel Hose
585WD12X25680 GE Dishwasher Main Conduit
586WD12X20118 GE Dishwasher Docking Port Stainless Steel
590WD12X25602 GE Dishwasher Silverware Basket Conduit
591WD01X22866 GE Dishwasher Silverware Bellow
635WD12X28580 GE Dishwasher Side Conduit Gasket
714WR01X10065 GE Screw
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
733WD01X33078 GE Cable Pulley
734WD16X20592 GE Dishwasher Hinge Pulley
735WD01X21837 GE Dishwasher Screw 10-32
736WD01X20593 GE Dishwasher Friction Washer
741WD01X23558 GE Dishwasher Front Tub Spacer
742JUNCTION BOX BRACKET
743WD12X10412 GE Dishwasher Wiring Cover
744WATER VALVE ASM
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
746WZ5X158D GE Screw Package of 12
748SCREW AND WASHER ASSEMBLY
749WD21X23559 GE Dishwasher Wire Harness
750CONFIGURED MACHINE CONTROL BOA
751WD21X30718 GE Dishwasher AC Harness
752WD21X28382 GE Dishwasher Direct Connect Harness Assembly
755CONTROL BOX BOTTOM
756WD27X32298 GE Control Box Assembly Top
770WD30X28098 GE Dishwasher Insulation Bag Assembly
777TUB INSULATION
790WD01X22786 GE Dishwasher Hose Clamp
791WD01X24246 GE Dishwasher Clamp
802WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
803WD21X10490 GE Dishwasher Standard Tub Side Door Latch
843WD08X22095 GE Dishwasher Tub Gasket
844WD01X31858 GE Tub Trim Kit
888WD01X27759 GE Mounting Bracket
889WD02X33379 GE Countertop Plug and Screw Set
920WD01X21975 GE Dishwasher Control Board Clip
