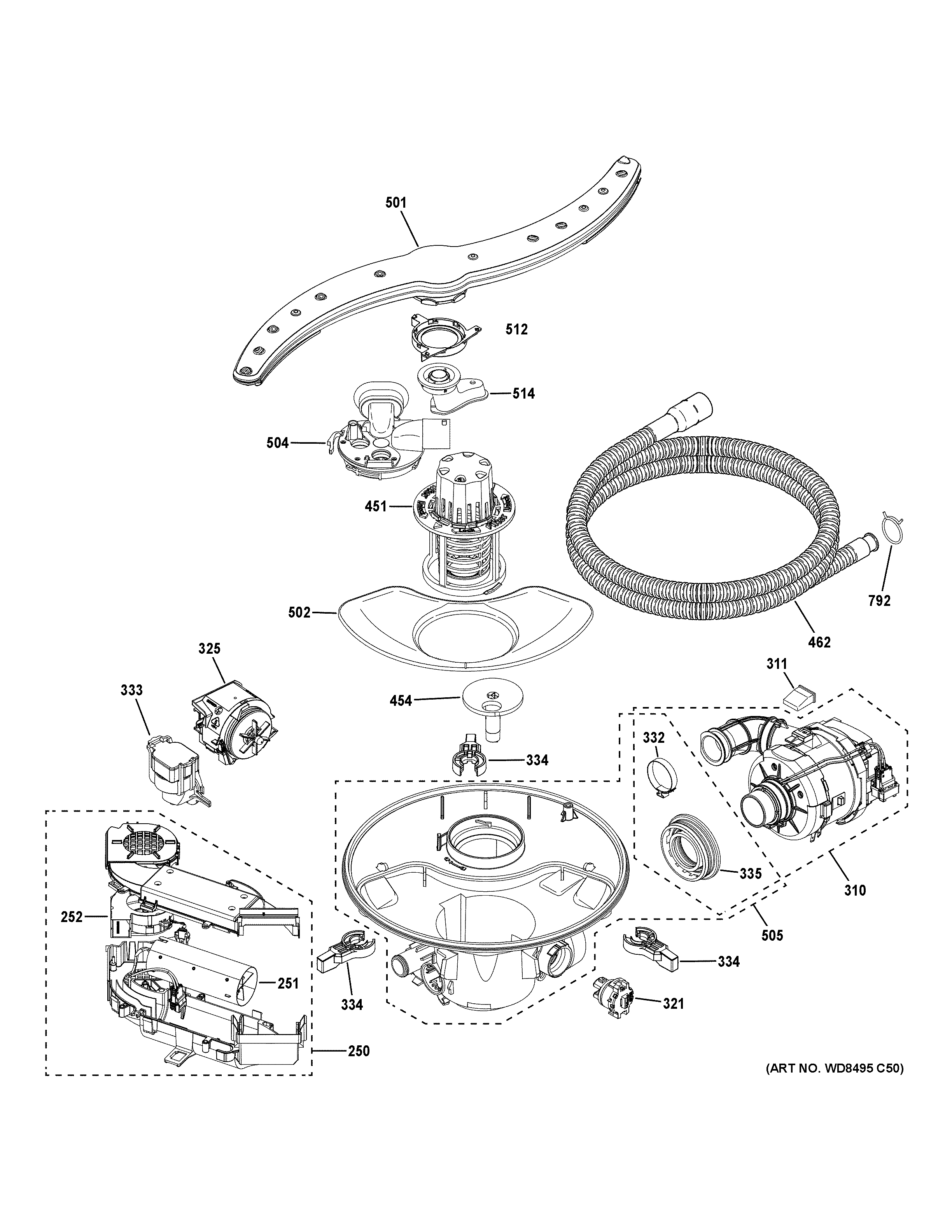

ZDT925SINBII MOTOR, SUMP & FILTER ASSEMBLY

ZDT925SINBII MOTOR, SUMP & FILTER ASSEMBLY

Written by

in

ZDT925SINBII MOTOR, SUMP & FILTER ASSEMBLY

Products

PositionProduct
250WD05X32018 GE Dry BOOST Heater and Blower
251HEATER
252BLOWER ASM
310WD19X25702 GE Dishwasher Variable Speed Wash Pump
311WD01X25638 GE Dishwasher Wash Pump Isolator
321DISHWASHER SENSOR
325VARIABLE SPEED DRAIN PUMP ASM
332HOSE CLAMP
333PRESSURE SENSOR ASM
334WD01X28338 GE Dishwasher Sump Latch
335WD08X27458 GE Seal
451WD12X25995 GE Fine Filter and Basket Assembly
454WD19X33099 GE Diverter Disc and Magnet
462DRAIN TUBE ASM
501WD22X25978 GE Dishwasher Lower Spray Arm Assembly
502WD22X25421 GE Dishwasher Stainless Coarse Filter
504WD19X33098 GE Diverter and Stem Four Port Assembly
505WD19X28199 GE Dishwasher Sump Overmold and Gasket
512WD12X22852 GE Dishwasher Spray Arm Hub
514WD12X25865 GE Dishwasher X-Arm Adapter
792WD01X10104 GE Dishwasher Hose Clamp
