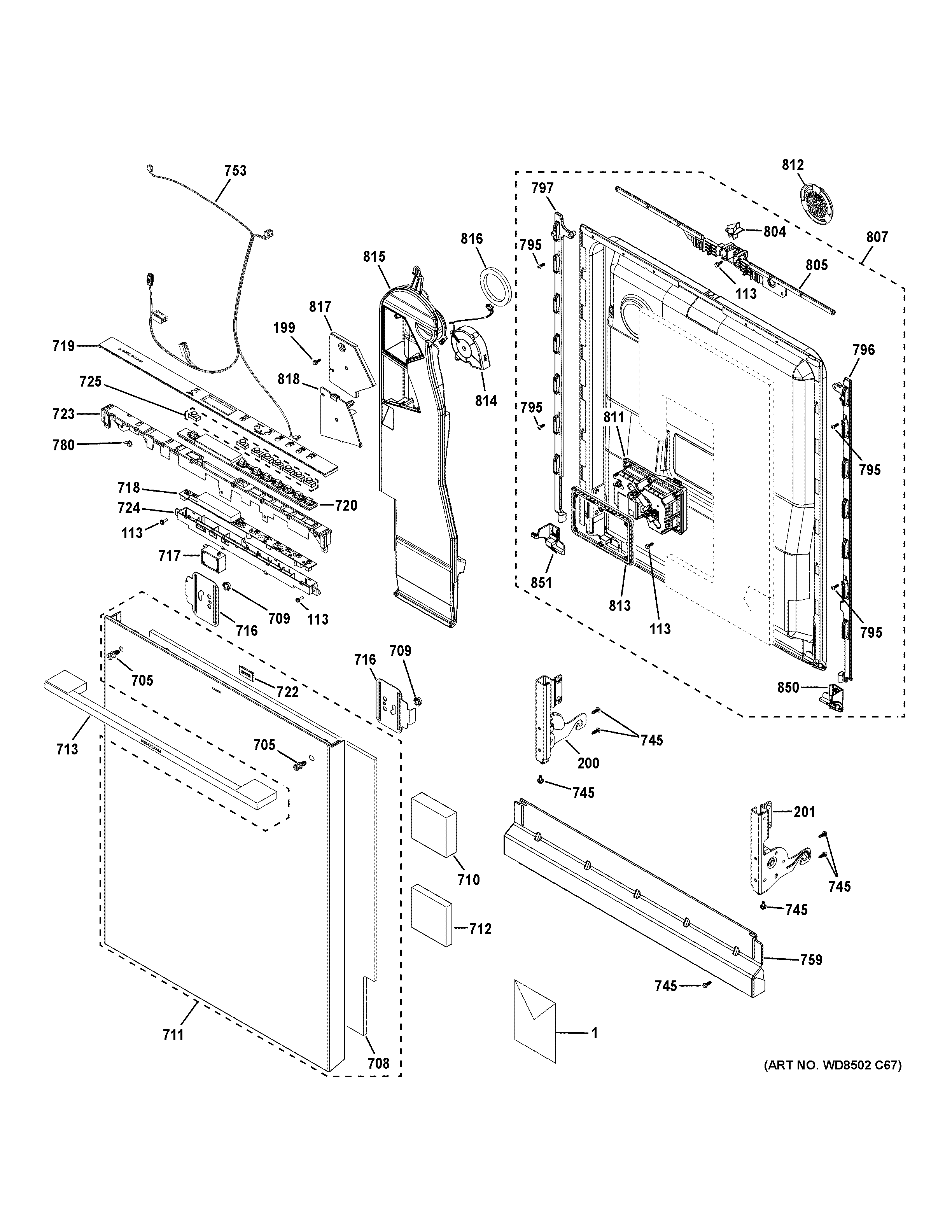

ZDT925SSNCSS ESCUTCHEON & DOOR ASSEMBLY

ZDT925SSNCSS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

ZDT925SSNCSS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PRINTED ONLY MINI MANUAL AND WIRING
1PM OWNERS AND INSTALL
1PM ATTENTION INSTALLER
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
199WD01X27719 GE Screw PL HXW 8-18 1/2
200DOOR HINGE LH
201DOOR HINGE RH
705WR01X11007 GE Refrigerator Fastener Door Handle
708OUTER DOOR INSULATION
709WD02X25303 GE Lock Nut 5/16-18 x 1/2"
710BLOCK FOAM DOOR
711STAINLESS MONOGRAM OUTER DOOR PANEL
712BLOCK FOAM DOOR
713WD09X26018 GE Monogram Door Handle
716WD01X25862 GE Dishwasher Handle Bracket
717WD01X22942 GE Speaker
718CONFIGURED UI CONTROL BOARD
719WD34X26005 GE Dishwasher Monogram Console Cover Assembly
720WD21X20299 GE Dishwasher Silicone Light Pipe
722WD09X20398 GE Lens and Adhesive Assembly
723TOP CONTROL CONSOLE
724WD12X20225 GE Dishwasher Bottom Housing
725WD09X20394 GE Dishwasher Button
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753UI HARNESS
759TOE KICK
780WD01X22934 GE Ground Clip Insert
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807INNER DOOR
811WD12X31658 GE Detergent Module
812VENT COVER
813WD12X10462 GE Dishwasher Detergent Plate
814DRY DOOR FAN AND HARNESS
815DOOR VENT CONDUIT
816DOOR VENT SEAL
817WET DOOR FAN COVER
818DRY DOOR FAN COVER
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
