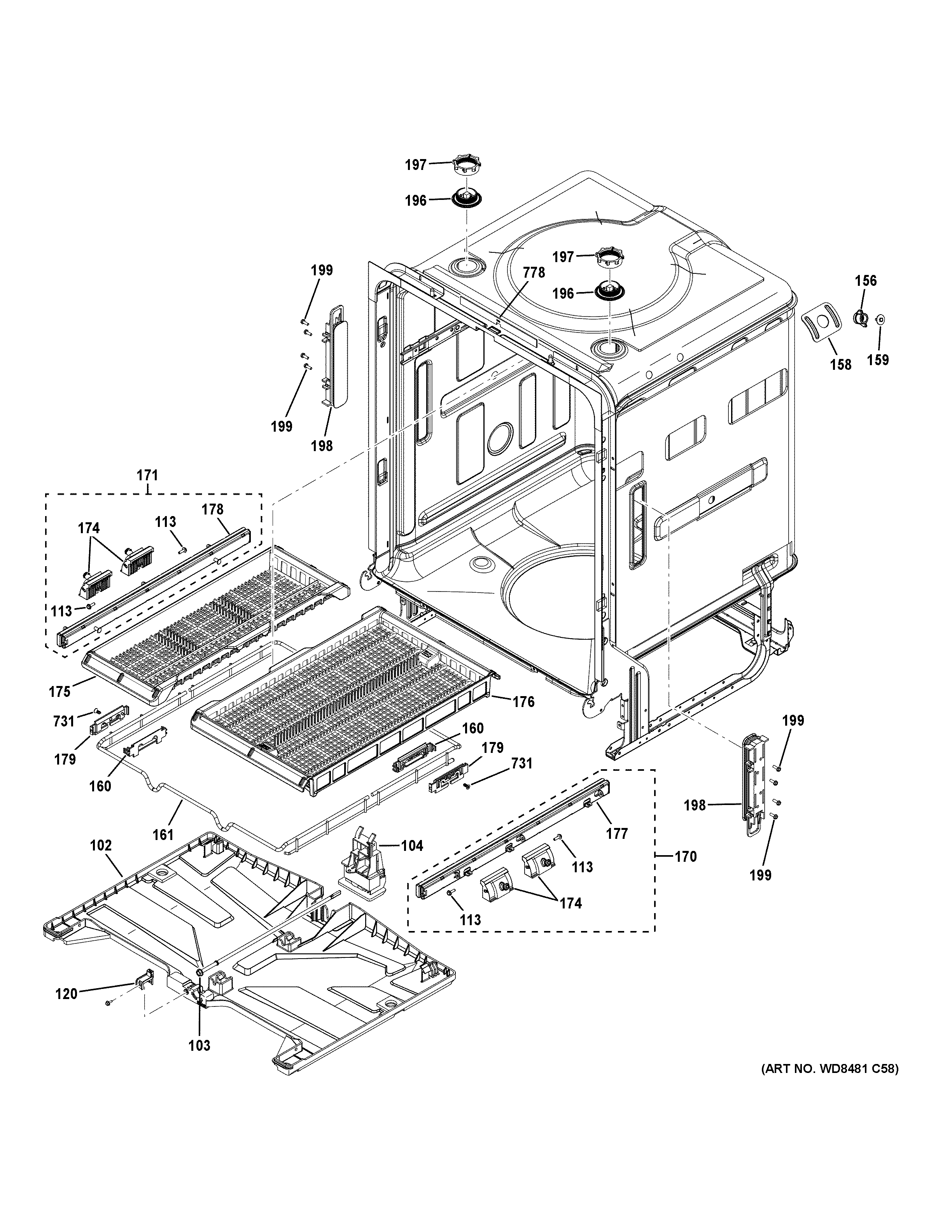

ZDT985SIN3II BODY PARTS (2)

ZDT985SIN3II BODY PARTS (2)

Written by

in

ZDT985SIN3II BODY PARTS (2)

Products

PositionProduct
102LEAK PAN AND GASKET ASM
103LEVELING SCREW
104WD16X25651 GE Dishwasher Pan Levelling Leg and Gear AS
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
120WD21X20552 GE Dishwasher Leak Pan Sensor
156WD02X20685 GE Dishwasher Tub Mount Sleeve
158WD30X22340 GE Dishwasher Tub Mount Brace
159WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
160INNER WIRE FRAME CLIP
161WD30X26007 GE Dishwasher Coated Third Rack
170THIRD RACK SLIDE ASM KIT RH
171WD30X33401 GE Third Rack Slide Assembly Kit Lh
174WD30X20323 GE Mount and Gasket Assembly
175WD28X26008 GE Dishwasher Utensils Tray
176WD28X26011 GE Dishwasher Silverware Tray Assembly
177SLIDE THIRD RACK
178WD30X21925 GE Dishwasher Third Rack Slide
179WD30X26009 GE Clip Outer Wire Frame
197WD21X20496 GE Dishwasher Top Light Service Kit Assembly
198WD06X22353 GE Tub Side Light Assembly
199SCR 7-19 PL IHXW 1/2 S
731WD02X20176 GE Dishwasher Stainless Steel 8-16 FLT Screw
778INSULATION COLLAR
